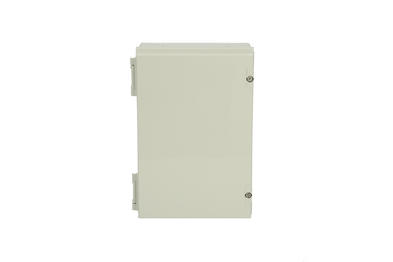

4810000_NEO_PC_322215_G 360_ANIMA_BIG.gif
Next slide
4810000_NEO_PC_322215_G 360_ANIMA_BIG.gif

NEO / NEO 322215 / NEO ABS 322215 G

NEO ABS 322215 G 4812000

Dimensions 320 x 220 x 150.

Including: ABS base and cover, mounting screws for mountingplate/DIN rail.

  • PC: IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 4812000

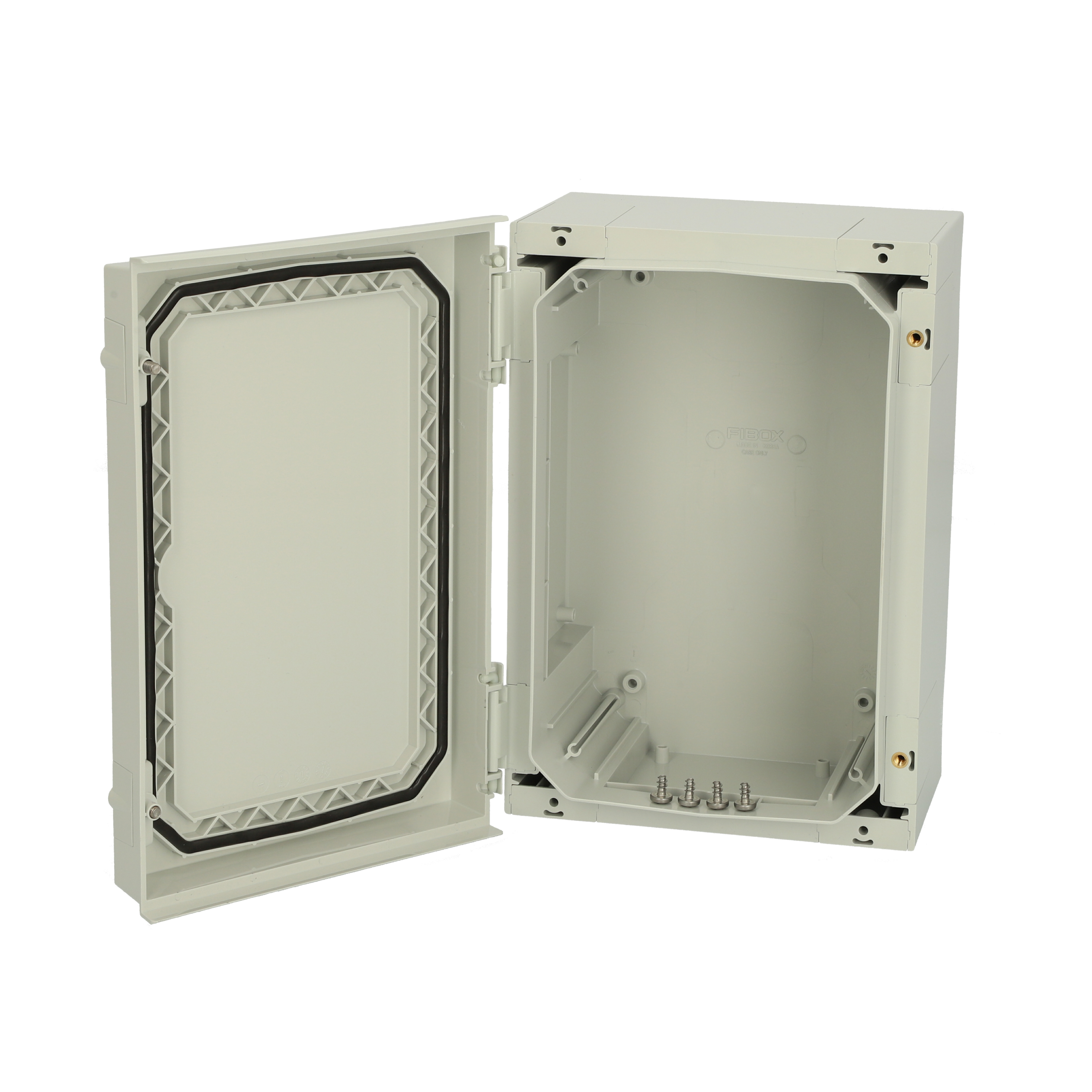

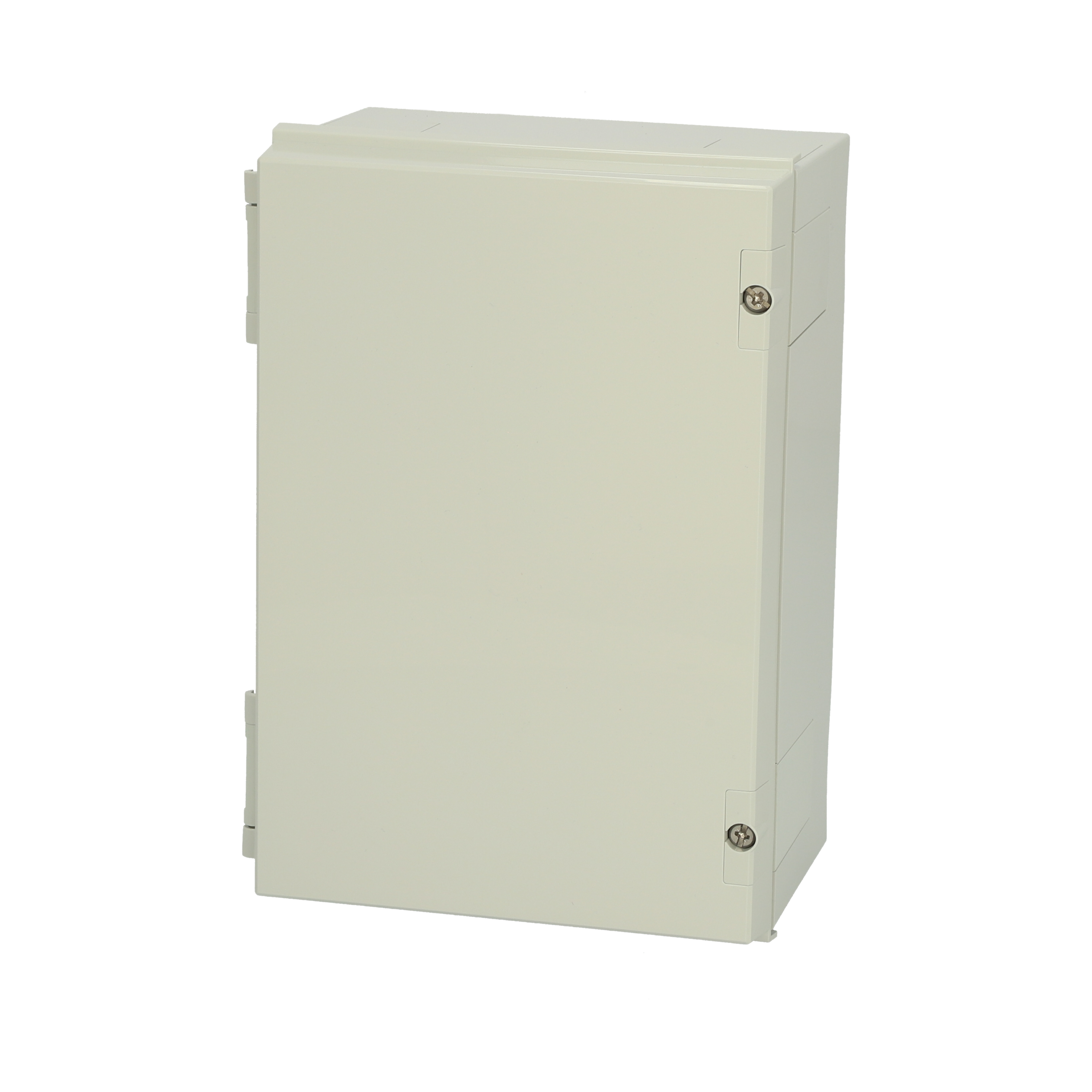

Description: Hinged ABS enclosure with grey cover

Remarks:

Package: 1

Unit: Piece

EAN: 6418074311436

SSTL number: 3424417

Electric No. Denmark: 8212098080

Electric No. Sweden: 2506221

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 320

Width (mm): 220

Depth (mm): 150

Height (inch): 12.6

Width (inch): 8.66

Depth (inch): 5.91

Materials:

Material: ABS

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 80

Temperature °C (continuous): -40 … 60

Temperature °F (short term): -40 … 175

Temperature °F (continuous): -40 … 140

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: -

Flammability Rating: UL 94 HB

Glow Wire Test (IEC 695-2-1): 650 °C

NEMA Class:

Product is connected to following catalogs:

NEO / NEO 322215 / NEO ABS 322215 G

CAD files
Certificates and Declarations
Catalogues
Contact

NEO ABS 322215 G

Fibox

Sample image

Order symbol: NEO ABS 322215 G

Product nbr: 4812000

Description: Hinged ABS enclosure with grey cover

Remarks:

EAN: 6418074311436

El. number:

  • Finland: 3424417
  • Denmark: 8212098080
  • Sweden: 2506221

Including: ABS base and cover, mounting screws for mountingplate/DIN rail.

FIBOX NEO 322215 DIM.jpg
Dimensions: Height Width Depth
mm: 320 220 150
inch: 12.6 8.66 5.91
Materials:
Material: ABS
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 80
Temperature °C (continuous): -40 … 60
Temperature °F (short term): -40 … 175
Temperature °F (continuous): -40 … 140
Accessories:
NEO MPI 3222 Multiperforated plastic mounting plate
(280 x 180 x 3)
NEO MPS 3222 Metal mounting plate
(280 x 180 x 1)
PMK NEO 20 Pole mounting kit
(300 x 200 x 30)
WMK NEO plastic Wall mounting kit plastic
(80 x 70 x 40)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating: UL 94 HB
Glow Wire Test (IEC 695-2-1) °C: 650 °C
NEMA Class
Certificates:
Certificate FI 40693 A1.pdf
