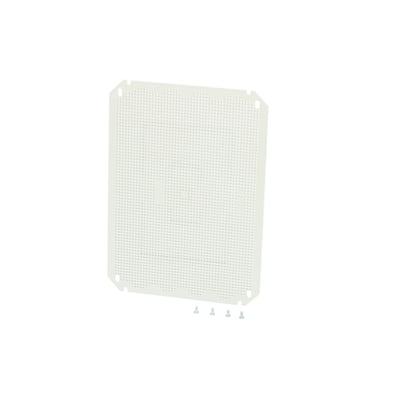

4850042 NEO MPX 4232_1_300dpi.jpg
Next slide
4850042 NEO MPX 4232_1_300dpi.jpg

NEO / NEO Accessories / NEO MPI 3222

NEO MPI 3222 4850070

Dimensions 275 x 165 x 3.

Including : Plastic mountingplate

  • PC :
Technical data
Product:

Product nr: 4850070

Description: Multiperforated plastic mounting plate

Remarks:

Package: 1

Unit: piece

EAN: 6418074314796

SSTL number: 3424424

Electric No. Denmark: 8212098158

Electric No. Sweden: 2506228

ETIM: EC000213

Dimensions :

Height (mm): 275

Width (mm): 165

Depth (mm): 3

Height (inch) : 10.83

Width (inch) : 6.5

Depth (inch) : 0.12

Materials :

Material: ABS

Temperatures:

Temperature °C (short term) :

Temperature °C (continuous) :

Temperature °F (short term) :

Temperature °F (continuous) :

Ratings :

Ingress Protection (EN 60529) :

Impact Resistance (EN 62262) :

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : -

Flammability Rating :

Glow Wire Test (IEC 60695) : C

NEMA Class :

Product is connected to following catalogs :

NEO / NEO Accessories / NEO MPI 3222

CAD Files
Certificates and Declarations
Contact

NEO MPI 3222

Fibox

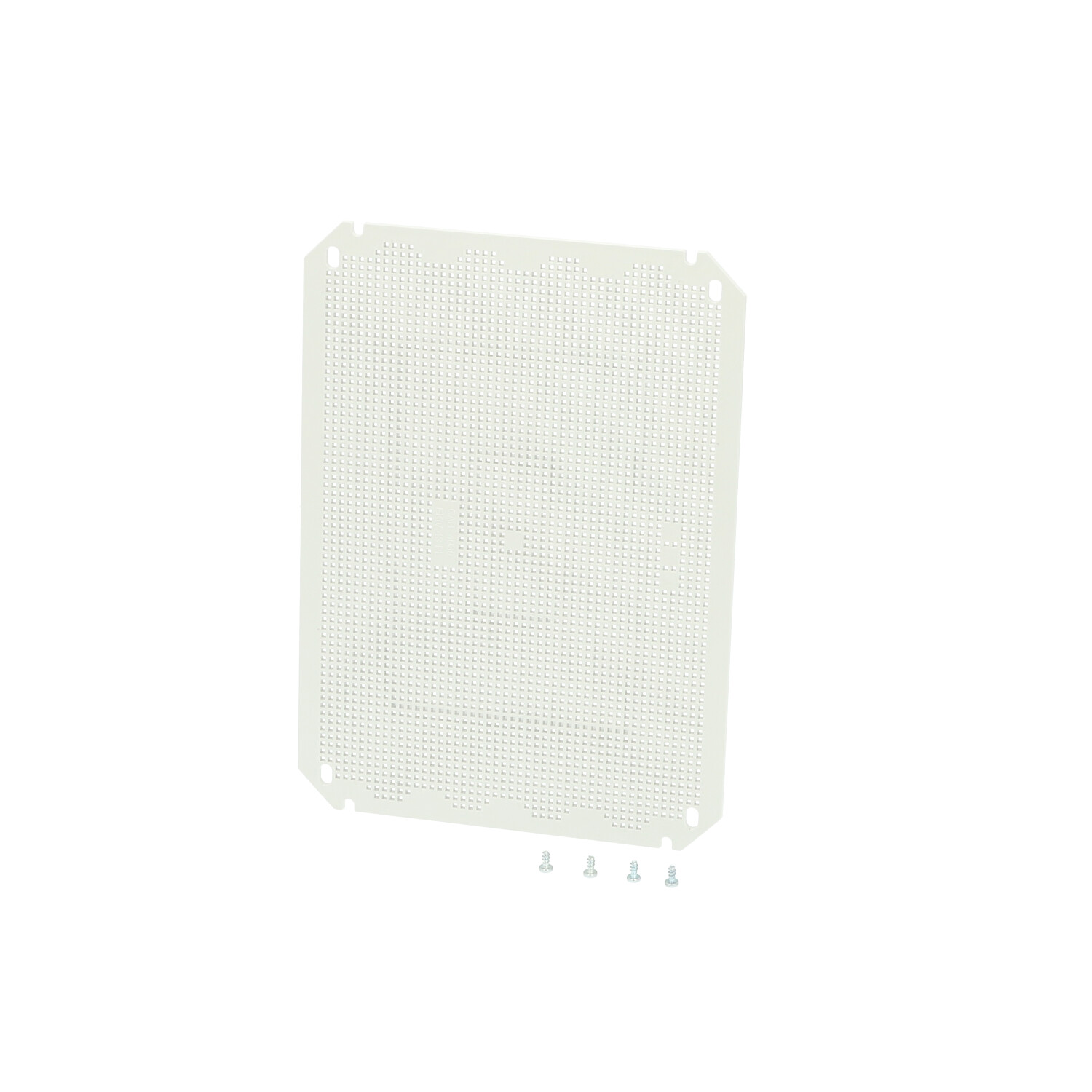

4850042 NEO MPX 4232_1_300dpi.jpg

Sample image

Order symbol: NEO MPI 3222

Product nbr: 4850070

Description: Multiperforated plastic mounting plate

Remarks:

EAN: 6418074314796

El. number:

  • Finland: 3424424
  • Denmark: 8212098158
  • Sweden: 2506228

Including: Plastic mountingplate

NEO MPI 3222.jpg
Dimensions: Height Width Depth
mm: 275 165 3
inch: 10.83 6.5 0.12
Materials:
Material: ABS
Base colour:
Cover colour:
Gasket material:
Temperatures:
Temperature °C (short term)::
Temperature °C (continuous):
Temperature °F (short term):
Temperature °F (continuous):
Rating:
Ingress protection (EN 60529):
Impact Resistance (EN 62262):
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
