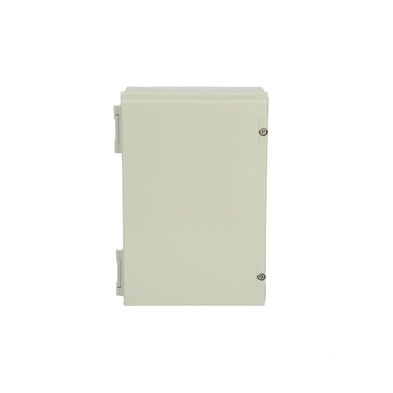

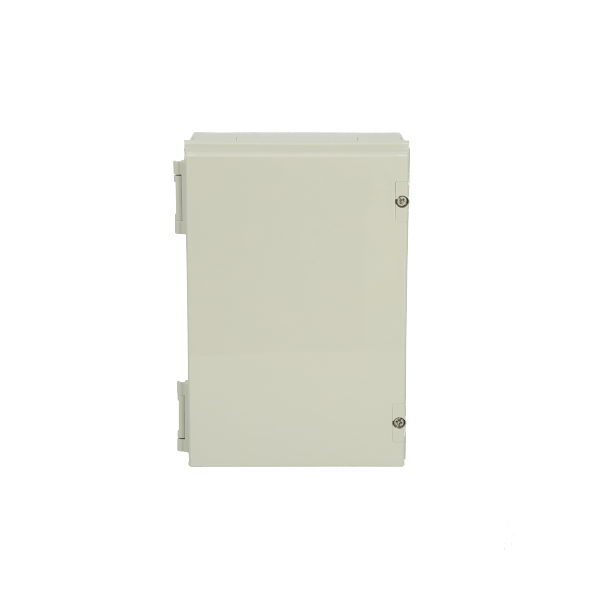

4810000_NEO_PC_322215_G 360_ANIMA_BIG.gif
Next slide
4810000_NEO_PC_322215_G 360_ANIMA_BIG.gif

NEO / NEO 322215 / NEO PC 322215 G

NEO PC 322215 G 4810000

Dimensions 320 x 220 x 150.

Including : Polycarbonate base and cover, mounting screws for mountingplate/DIN rail.

  • PC : IP66; IP67; IK09; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 4810000

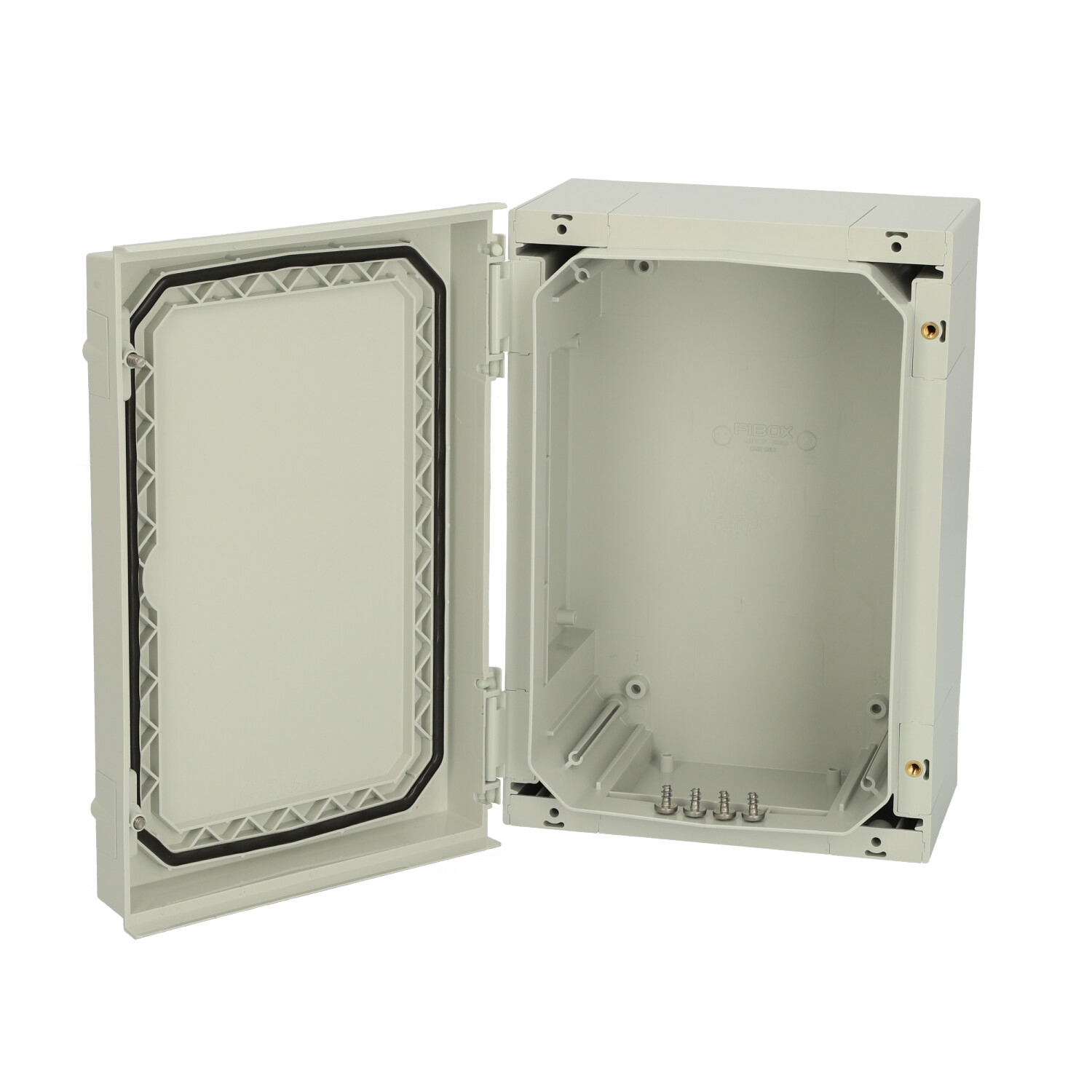

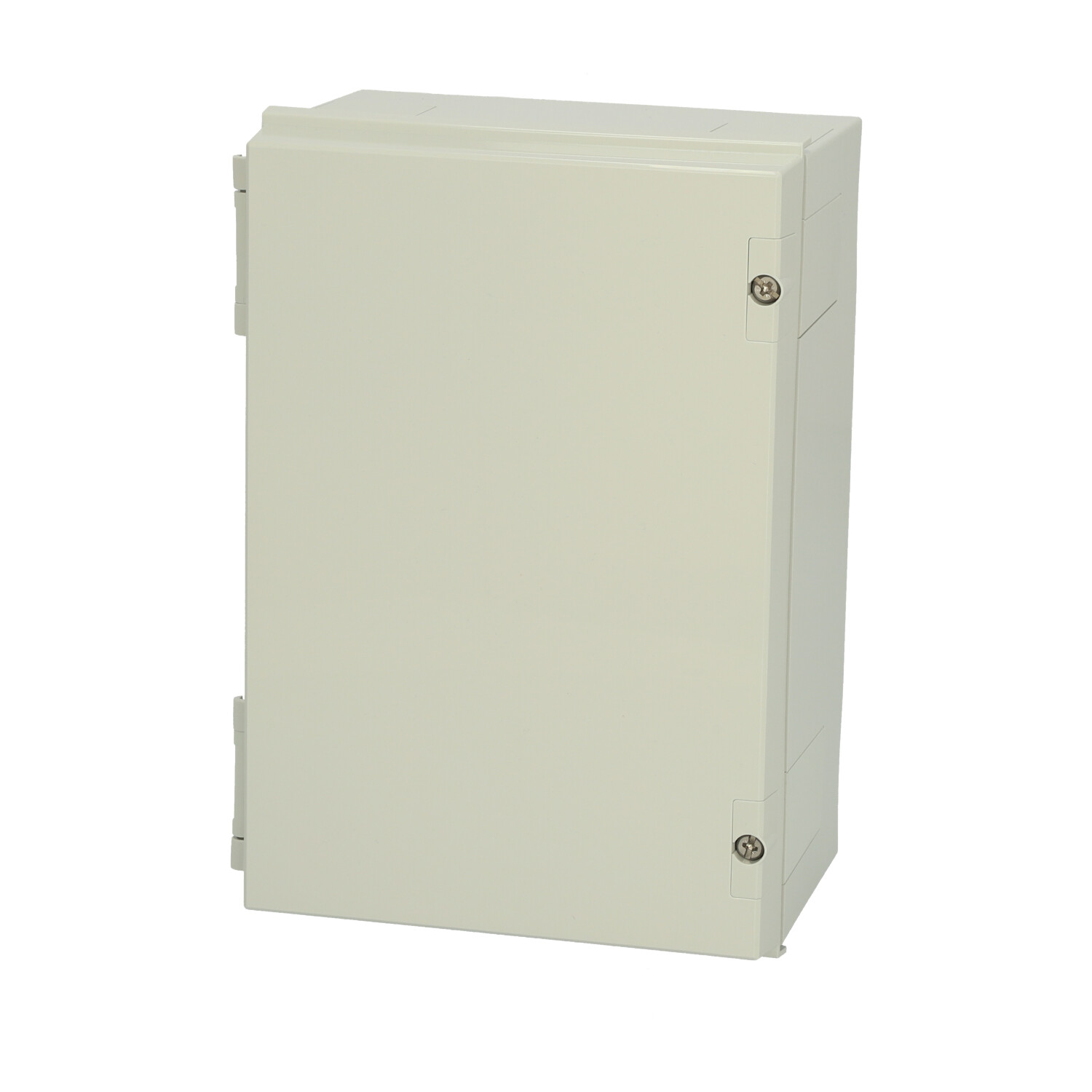

Description: Hinged polycarbonate enclosure with grey cover

Remarks:

Package: 1

Unit: Piece

EAN: 6418074311337

SSTL number: 3424407

Electric No. Denmark: 8212098022

Electric No. Sweden: 2506215

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 320

Width (mm): 220

Depth (mm): 150

Height (inch) : 12.6

Width (inch) : 8.66

Depth (inch) : 5.91

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK09;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 94 5VA

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class :

Product is connected to following catalogs :

NEO / NEO 322215 / NEO PC 322215 G

NEO PC 322215 G

Fibox

Sample image

Order symbol: NEO PC 322215 G

Product nbr: 4810000

Description: Hinged polycarbonate enclosure with grey cover

Remarks:

EAN: 6418074311337

El. number:

  • Finland: 3424407
  • Denmark: 8212098022
  • Sweden: 2506215

Including: Polycarbonate base and cover, mounting screws for mountingplate/DIN rail.

FIBOX NEO 322215 DIM.jpg
Dimensions: Height Width Depth
mm: 320 220 150
inch: 12.6 8.66 5.91
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
NEO MPI 3222 Multiperforated plastic mounting plate
(275 x 165 x 3)
NEO MPS 3222 Metal mounting plate
(275 x 165 x 1.5)
PMK NEO 20 Pole mounting kit
(300 x 200 x 30)
WMK NEO plastic Wall mounting kit plastic
(80 x 70 x 40)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK09;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 94 5VA
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40693 A1.pdf
