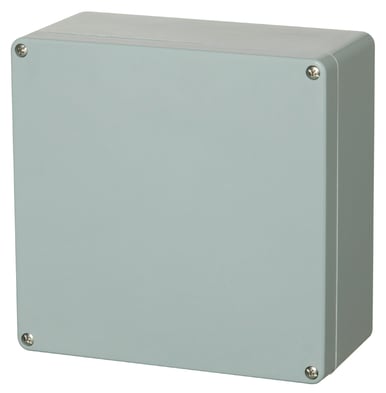

P_252612
Next slide
P_252612

Euronord P / P 2526 / P 252612

P 252612 7094370

Dimensions 250 x 255 x 120.

  • PC: IP66; IK10;
Technical data
Product:

Product nr: 7094370

Description: Fiberglass enclosure

Remarks: Opaque cover

Package: 1

Unit: Piece

EAN: 6418074004420

SSTL number: 3423673

Electric No. Denmark: 8212005691

Electric No. Sweden: 2536231

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 250

Width (mm): 255

Depth (mm): 120

Height (inch): 9.84

Width (inch): 10.04

Depth (inch): 4.72

Materials:

Material: Polyester

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -50 … 120

Temperature °C (continuous): -20 ... 95 °

Temperature °F (short term): -60 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66;

Impact Resistance (EN 62262): IK10;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 94 V0

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

Euronord P / P 2526 / P 252612

CAD files
Certificates and Declarations
Catalogues
Contact

P 252612

Fibox

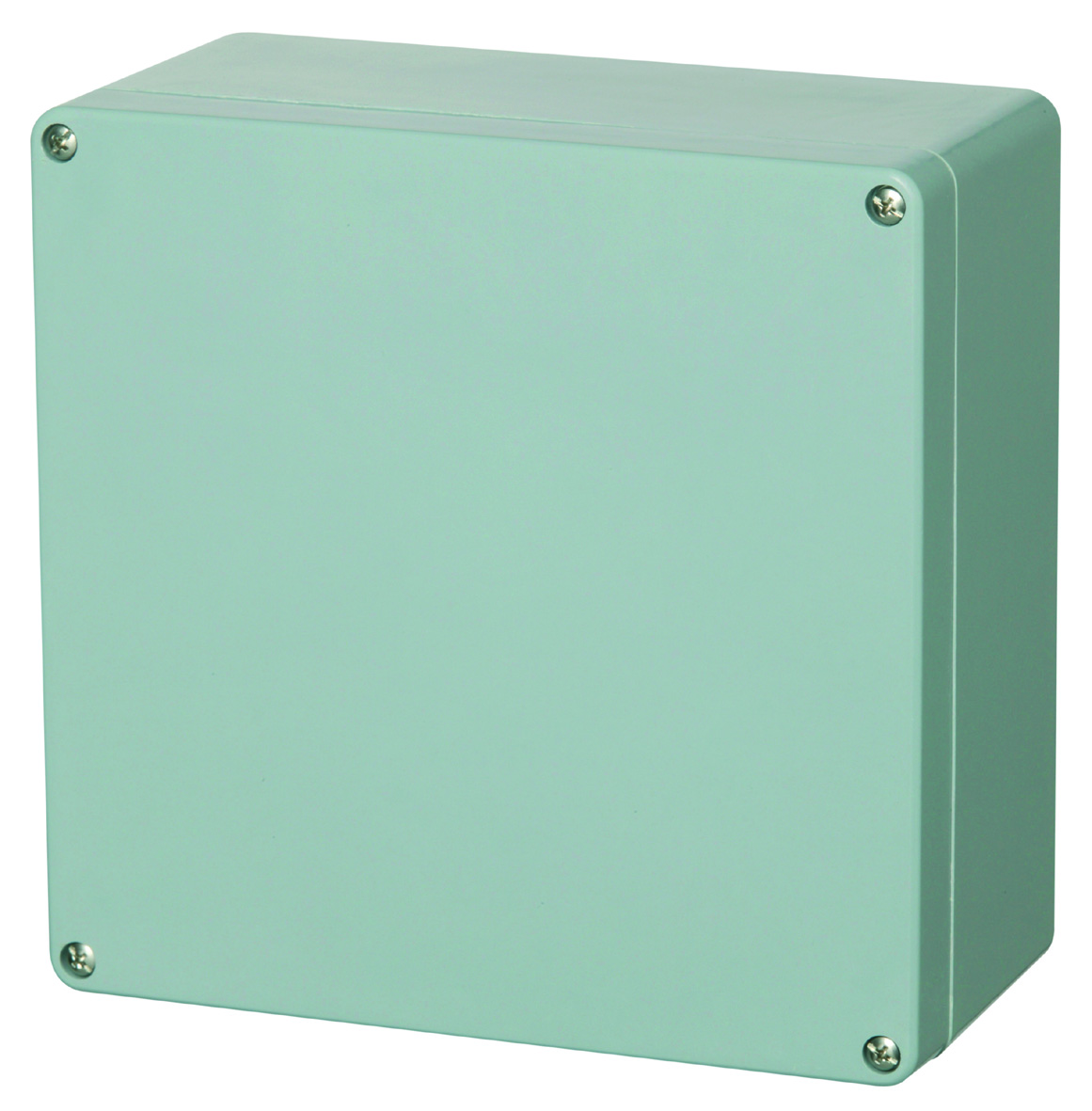

P_252612

Sample image

Order symbol: P 252612

Product nbr: 7094370

Description: Fiberglass enclosure

Remarks: Opaque cover

EAN: 6418074004420

El. number:

  • Finland: 3423673
  • Denmark: 8212005691
  • Sweden: 2536231

Including:

EUROP252612
Dimensions: Height Width Depth
mm: 250 255 120
inch: 9.84 10.04 4.72
Materials:
Material: Polyester
Base colour:
Cover colour:
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -50 … 120
Temperature °C (continuous): -20 ... 95 °
Temperature °F (short term): -60 … 250
Temperature °F (continuous): -40 … 175
Accessories:
PRH 2526 DIN-15 Mounting rail. for enclosures:
(238 x 35 x 1)
MRS 28541 Mounting foot kit (2 pcs). for enclosures:
(15 x 50 x 1)
PM 2526 Back Panel. for enclosures:
(231 x 240 x 1)
Rating:
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 94 V0
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
