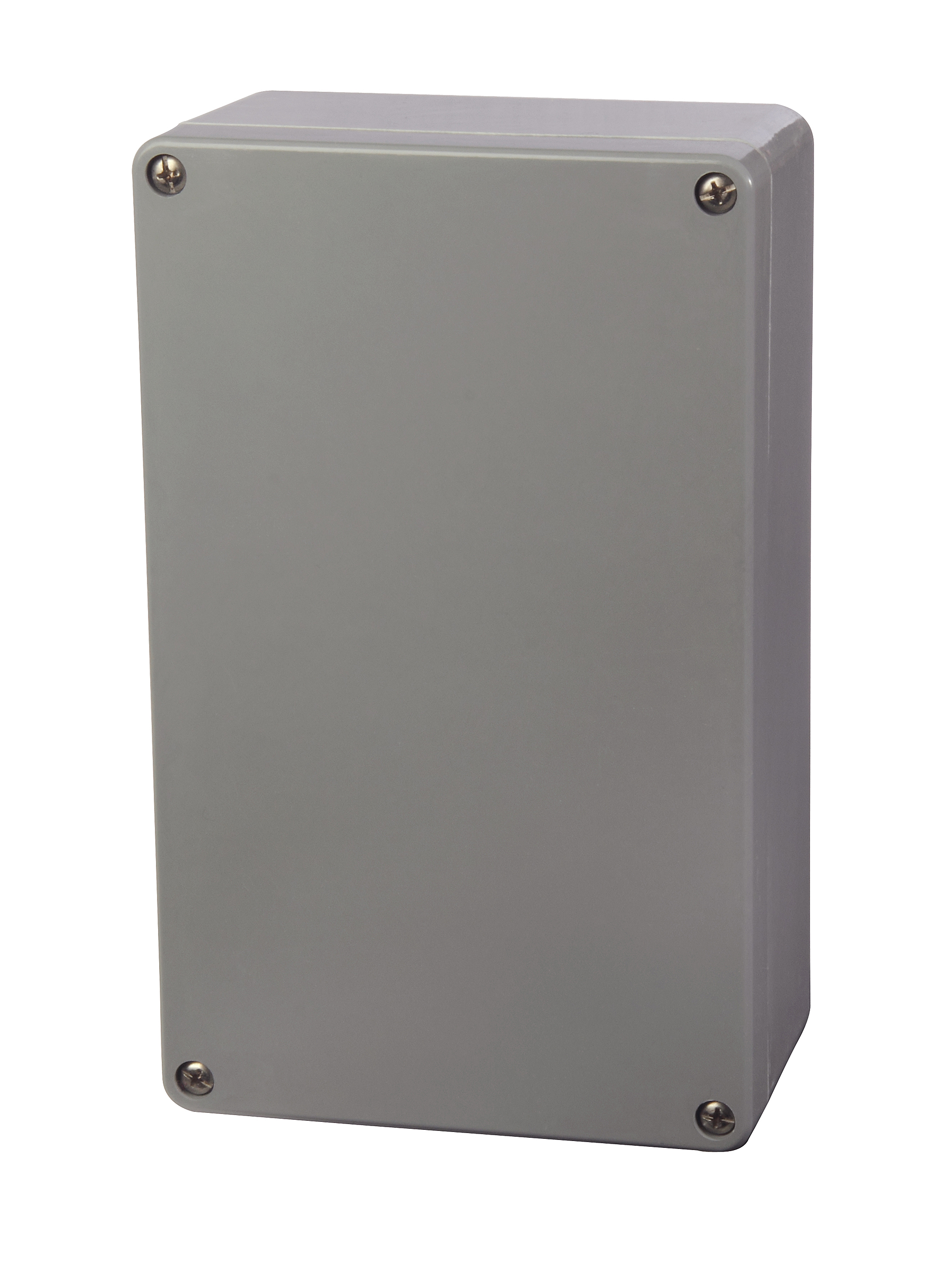

P_162609
Next slide
P_162609

Euronord P / P 1626 / P 162609

P 162609 7094300

Dimensions 160 x 260 x 90.

  • PC: IP66; IK10;
Technical data
Product:

Product nr: 7094300

Description: Fiberglass enclosure

Remarks: Opaque cover

Package: 1

Unit: Piece

EAN: 6418074004406

SSTL number: 3423665

Electric No. Denmark: 8212005675

Electric No. Sweden: 2536223

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 160

Width (mm): 260

Depth (mm): 90

Height (inch): 6.3

Width (inch): 10.24

Depth (inch): 3.54

Materials:

Material: Polyester

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -50 … 120

Temperature °C (continuous): -20 ... 95 °

Temperature °F (short term): -60 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66;

Impact Resistance (EN 62262): IK10;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 94 V0

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

Euronord P / P 1626 / P 162609

CAD files
Certificates and Declarations
Catalogues
Contact

P 162609

Fibox
P_162609

Sample image

Order symbol: P 162609

Product nbr: 7094300

Description: Fiberglass enclosure

Remarks: Opaque cover

EAN: 6418074004406

El. number:

  • Finland: 3423665
  • Denmark: 8212005675
  • Sweden: 2536223

Including:

EUROP162609
Dimensions: Height Width Depth
mm: 160 260 90
inch: 6.3 10.24 3.54
Materials:
Material: Polyester
Base colour:
Cover colour:
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -50 … 120
Temperature °C (continuous): -20 ... 95 °
Temperature °F (short term): -60 … 250
Temperature °F (continuous): -40 … 175
Accessories:
PM 1626 Back Panel. for enclosures:
(146 x 244 x 1)
ARH 26 DIN-35 Mounting rail. for enclosures:
(240 x 35 x 1)
MRS 28541 Mounting foot kit (2 pcs). for enclosures:
(15 x 50 x 1)
Rating:
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK10;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 94 V0
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
