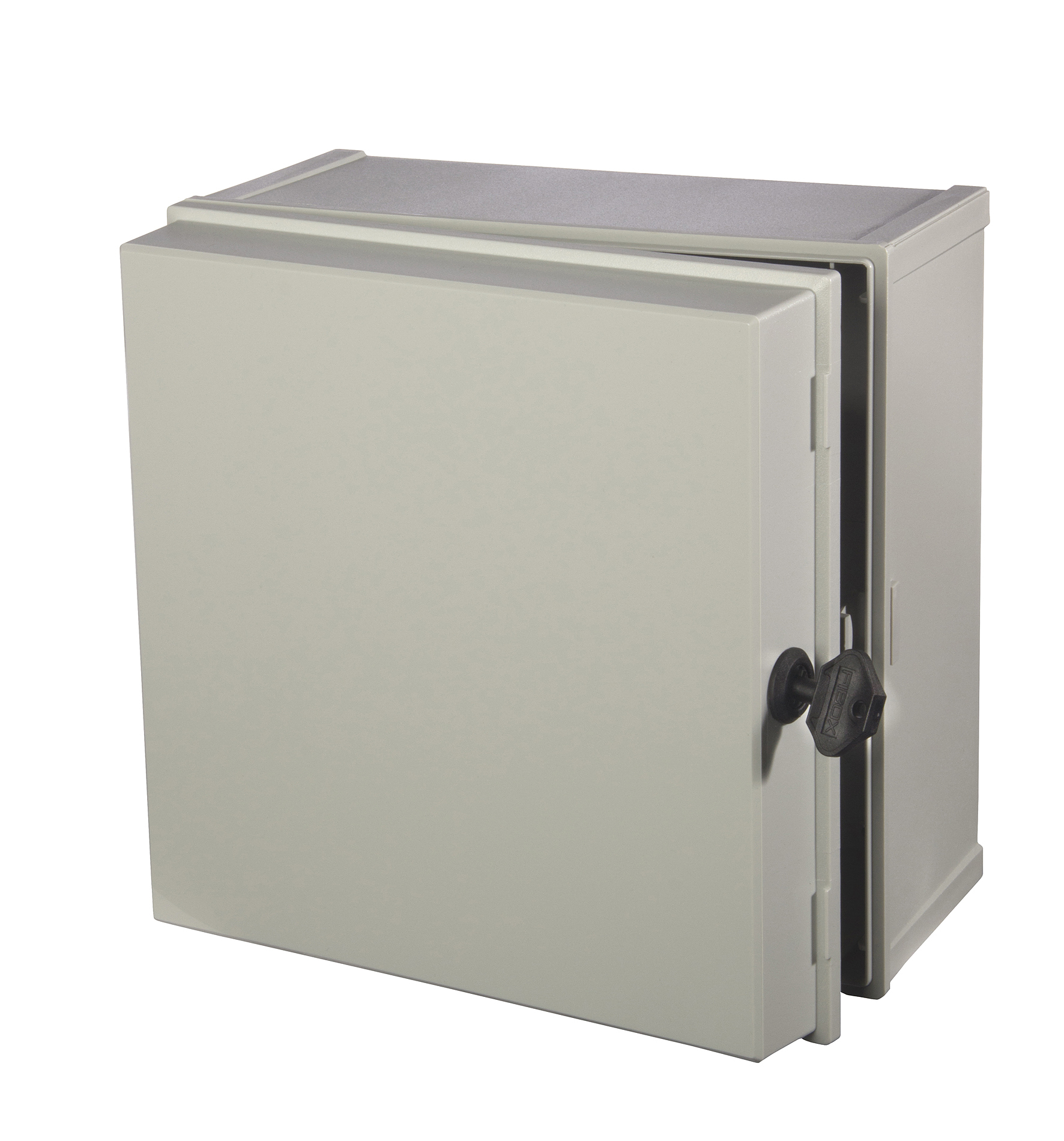

CAB_PC_303018_G3B
Next slide
CAB_PC_303018_G3B

CAB / CAB 3030 / CAB PC 303018 G3B

CAB PC 303018 G3B 8113342

UL Code: 8143342

UL Name: UL CAB PC 303018 G3B

Dimensions 300 x 300 x 180.

Including: Cabinet base. door with PUR gasket. 3mm double bit lock(s) with key. screws for mounting plate/DIN-rail and corner plugs.

  • PC: IP65; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 8113342

Description: Opaque door

Remarks: Lock on the long side

Package: 1

Unit: Piece

EAN: 6418074020147

SSTL number: 3424111

Electric No. Denmark: 8212019221

Electric No. Sweden: 2539969

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 300

Width (mm): 300

Depth (mm): 180

Height (inch): 11.81

Width (inch): 11.81

Depth (inch): 7.09

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP65;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

CAB / CAB 3030 / CAB PC 303018 G3B

CAB PC 303018 G3B

Fibox
CAB_PC_303018_G3B

Sample image

Order symbol: CAB PC 303018 G3B

Product nbr: 8113342

UL Code: 8143342

UL Name: UL CAB PC 303018 G3B

Description: Opaque door

Remarks: Lock on the long side

EAN: 6418074020147

El. number:

  • Finland: 3424111
  • Denmark: 8212019221
  • Sweden: 2539969

Including: Cabinet base. door with PUR gasket. 3mm double bit lock(s) with key. screws for mounting plate/DIN-rail and corner plugs.

CAB3030L
Dimensions: Height Width Depth
mm: 300 300 180
inch: 11.81 11.81 7.09
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
EKIV 33 Back Panel. for enclosures:
(270 x 270 x 1)
MB 12225 AL Swing door kit
FP A 33 Swing-out door/Front panel (aluminum). for enclosures:
(268 x 268 x 1)
EKIV 27 DIN-35 Mounting rail. for enclosures:
(266 x 35 x 1)
DRF 33 DIN rail frame kit. for enclosures:
Rating:
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40854
