AR12106CHTSS 8561049

Dimensions 305 x 254 x 152.

Including : Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

PC : IP66; IP67; IK09;

Product number : 8561049 Download product card

Technical data

Product:

Product nr: 8561049

Description: PC Enclosure

Remarks: Hinged opaque cover w/S.S. Lockable twist latch

Package: 1

Unit: Piece

EAN: 6418074067043

SSTL number:

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 305

Width (mm): 254

Depth (mm): 152

Height (inch) : 12

Width (inch) : 10

Depth (inch) : 6

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 140

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK09;

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 508

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class : NEMA 4, 4X, 6, 6P, 12, 12K and 13

Product is connected to following catalogs :

ARCA JIC / AR 12106 / AR12106CHTSS

Dimensional Drawings

CAD Files

Contact

Accessories

ASPHK12

Swing Panel Kit w/o Panel

ALBP1210

Aluminum Back Panel
(274 x 226)

ASP1210

Aluminum Swing Panel
(254.5 x 305.7 x 0)

ASPK1210

Swing Panel Kit incl. Panel

ADFP1210

Dead Front Panel w/ screws
(257.5 x 307.5 x 0)

APBP1210

PVC Back Panel
(274 x 226)

AMFL10

10" Mounting Flange Set

ABP1210

Painted Steel Back Panel
(274 x 226)

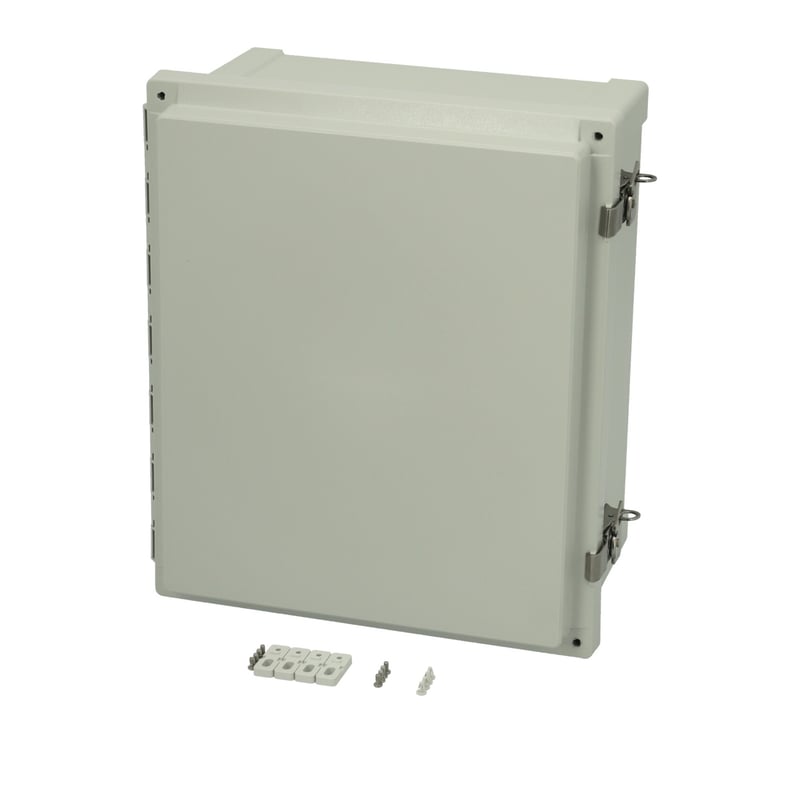

Sample image

Order symbol: AR12106CHTSS

Product nbr: 8561049

Description: PC Enclosure

Remarks: Hinged opaque cover w/S.S. Lockable twist latch

EAN: 6418074067043

El. number:

Finland:
Denmark:
Sweden:

Including: Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

Dimensions:	Height	Width	Depth
mm:	305	254	152
inch:	12	10	6

Materials:
Material:	Polycarbonate
Base colour:	RAL 7035 -light grey
Cover colour:	RAL 7035 -light grey
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 140
Temperature °C (continuous):	-40 … 80
Temperature °F (short term):	-40 … 250
Temperature °F (continuous):	-40 … 175

Accessories:
ASPHK12	Swing Panel Kit w/o Panel
ALBP1210	Aluminum Back Panel (274 x 226)
ASP1210	Aluminum Swing Panel (254.5 x 305.7 x 0)
ASPK1210	Swing Panel Kit incl. Panel
ADFP1210	Dead Front Panel w/ screws (257.5 x 307.5 x 0)
APBP1210	PVC Back Panel (274 x 226)
AMFL10	10" Mounting Flange Set
ABP1210	Painted Steel Back Panel (274 x 226)

Rating:
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK09;
Electrical insulation:	Not insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	UL 508
Flammability Rating:	UL 508
Glow Wire Test (IEC 695-2-1) °C:	960 °C
NEMA Class	NEMA 4, 4X, 6, 6P, 12, 12K and 13

Certificates:
ARCA_CertificateofCompliance
