Description : Coupling Flange
Remarks : For connecting cabinets
Package : 12
Unit : Piece
EAN : 6418074083173
SSTL number : 3424000
Electric No. Denmark : 8212048784
Electric No. Sweden : 2508150
ETIM : EC002620
Ingress Protection : IP65
Height (mm) : 82
Width (mm) : 216
Depth (mm) : 12
Height (inch) : 3.23
Width (inch) : 8.5
Depth (inch) : 0.47
Material : Polycarbonate
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP65
Flammability Rating : UL 94 V0
CAD Drawings
- 8120820_FIBOX_ARCA_IEC_CFS_ARCA.step
- 8120820_FIBOX_ARCA_IEC_CFS_ARCA.step
- 8120820_FIBOX_ARCA_IEC_CFS_ARCA.step
Please note, that we need you permission in order for you to view the CAD files.
CFS ARCA

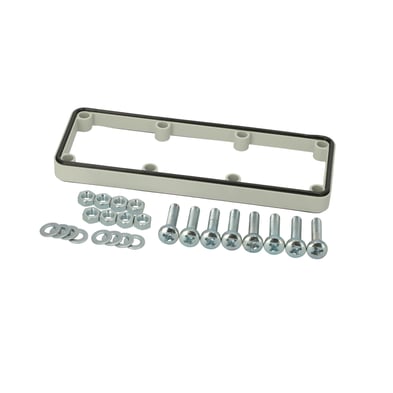

Sample image
Order symbol : CFS ARCA
Product nr : 8120820
Description : Coupling Flange
Remarks : For connecting cabinets
EAN : 6418074083173
El. number :
- Finland : 3424000
- Denmark : 8212048784
- Sweden : 2508150
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 82 | 216 | 12 |
| inch : | 3.23 | 8.5 | 0.47 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| electrical_insulation : | Not insulated |
| UV resistance : | - |
| Flammability Rating : | UL 94 V0 |
