DRS ARCA 404021 8120767
Dimensions 380 x 380 x 30
Dimensions 14.96 x 14.96 x 1.18
Technical data
Product nr : 8120767
Description : DIN rail frame set
Remarks : 2 rows x17 modules
Package : 1
Unit : Piece
EAN : 6418074082886
SSTL number : 3423859
Electric No. Denmark : 8212097845
Electric No. Sweden : 2506494
ETIM : EC002620
Height (mm) : 380
Width (mm) : 380
Depth (mm) : 30
Height (inch) : 14.96
Width (inch) : 14.96
Depth (inch) : 1.18
Material : Galvanized steel
/ /
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Catalogues
Contact
DRS ARCA 404021

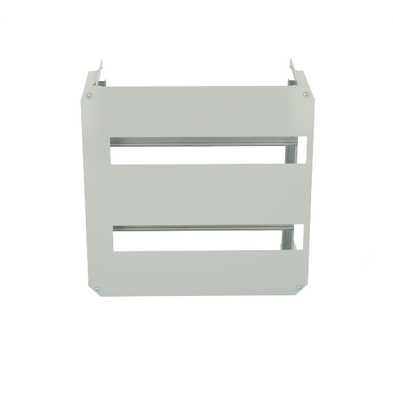

Sample image
Order symbol : DRS ARCA 404021
Product nr : 8120767
Description : DIN rail frame set
Remarks : 2 rows x17 modules
EAN : 6418074082886
El. number :
- Finland : 3423859
- Denmark : 8212097845
- Sweden : 2506494
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 380 | 380 | 30 |
| inch : | 14.96 | 14.96 | 1.18 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
