Description : Mounting plate (450x350x2 mm)
Remarks : Galvanized steel, for size 500x400x210
Package : 1
Unit : Piece
EAN : 6418074082589
SSTL number : 3423812
Electric No. Denmark : 8212094437
Electric No. Sweden : 2500185
ETIM : EC000213
Height (mm) : 450
Width (mm) : 350
Depth (mm) : 2
Height (inch) : 17.72
Width (inch) : 13.78
Depth (inch) : 0.08
Material : Galvanized steel

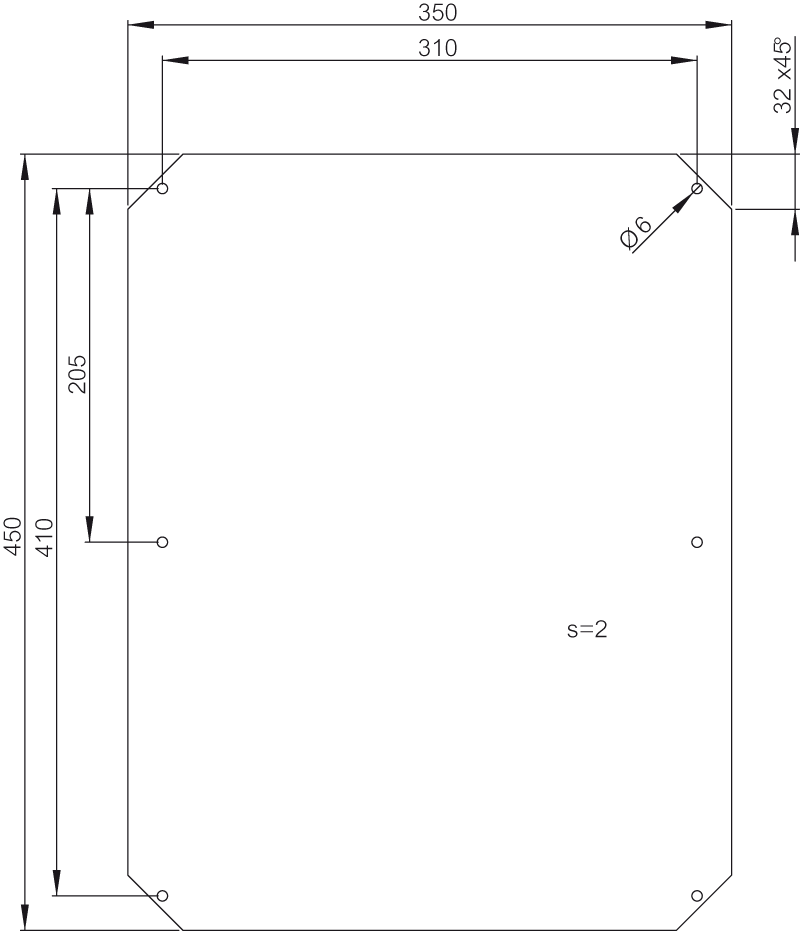

CAD Drawings
- MPS 5040.dwg
- MPS 5040.dxf
- MPS 5040.x_t
- MPS 5040.zip
- 8120735_FIBOX_ARCA_IEC_MPS_ARCA_5040.step
Please note, that we need you permission in order for you to view the CAD files.
MPS ARCA 5040
Sample image
Order symbol : MPS ARCA 5040
Product nr : 8120735
Description : Mounting plate (450x350x2 mm)
Remarks : Galvanized steel, for size 500x400x210
EAN : 6418074082589
El. number :
- Finland : 3423812
- Denmark : 8212094437
- Sweden : 2500185
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 450 | 350 | 2 |
| inch : | 17.72 | 13.78 | 0.08 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
