Windows/HMI protection / Inspection windows / L 24 II

L 24 II 3730776

Dimensions 248 x 218 x 0.

  • PC : IP65;
Technical data
Product:

Product nr: 3730776

Description: Window for 24 modules

Remarks: Smoked transparent cover

Package: 10

Unit: Piece

EAN: 6418074036858

SSTL number: 3422654

Electric No. Denmark:

Electric No. Sweden: 2539789

ETIM: EC002527 Window (switchgear cabinet)

Dimensions :

Height (mm): 248

Width (mm): 218

Depth (mm): 0

Height (inch) : 9.76

Width (inch) : 8.58

Depth (inch) : 0

Materials :

Material:

Temperatures:

Temperature °C (short term) : -40 … 120 °C

Temperature °C (continuous) : -40 … 80 °C

Temperature °F (short term) : -40 … 250 °F

Temperature °F (continuous) : -40 … 175 °F

Ratings :

Ingress Protection (EN 60529) : IP65;

Impact Resistance (EN 62262) :

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 0

UV resistance : -

Flammability Rating :

Glow Wire Test (IEC 60695) : C

NEMA Class :

Product is connected to following catalogs :

Windows/HMI protection / Inspection windows / L 24 II

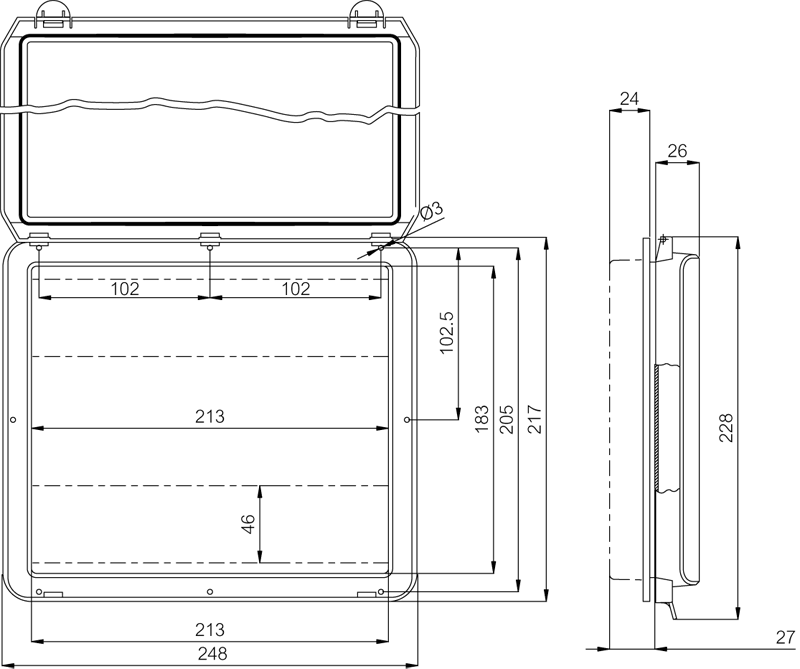

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

L 24 II

Fibox
inspection_windows

Sample image

Order symbol: L 24 II

Product nbr: 3730776

Description: Window for 24 modules

Remarks: Smoked transparent cover

EAN: 6418074036858

El. number:

  • Finland: 3422654
  • Denmark:
  • Sweden: 2539789

Including:

L24II
Dimensions: Height Width Depth
mm: 248 218 0
inch: 9.76 8.58 0
Materials:
Material:
Base colour:
Cover colour:
Gasket material:
Temperatures:
Temperature °C (short term):: -40 … 120 °C
Temperature °C (continuous): -40 … 80 °C
Temperature °F (short term): -40 … 250 °F
Temperature °F (continuous): -40 … 175 °F
Rating:
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262):
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 0
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
