Windows/HMI protection / Inspection windows / L 08

L 08 3730663

Dimensions 162 x 77 x 1.

  • PC :
Technical data
Product:

Product nr: 3730663

Description: Window for 8 modules

Remarks: Clear cover

Package: 10

Unit: Piece

EAN: 6418074035516

SSTL number: 3420137

Electric No. Denmark: 8212008067

Electric No. Sweden: 2539777

ETIM:

Dimensions :

Height (mm): 162

Width (mm): 77

Depth (mm): 1

Height (inch) : 6.38

Width (inch) : 3.03

Depth (inch) : 0.04

Materials :

Material:

Temperatures:

Temperature °C (short term) : -40 … 120 °C

Temperature °C (continuous) :

Temperature °F (short term) : -40 … 250 °F

Temperature °F (continuous) : -40 … 175 °F

Ratings :

Ingress Protection (EN 60529) :

Impact Resistance (EN 62262) :

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 0

UV resistance : -

Flammability Rating :

Glow Wire Test (IEC 60695) : C

NEMA Class :

Product is connected to following catalogs :

Windows/HMI protection / Inspection windows / L 08

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

L 08

Fibox
inspection_windows

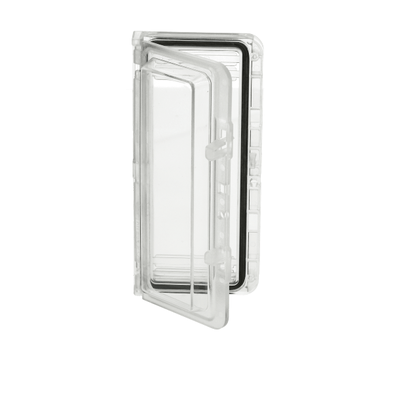

Sample image

Order symbol: L 08

Product nbr: 3730663

Description: Window for 8 modules

Remarks: Clear cover

EAN: 6418074035516

El. number:

  • Finland: 3420137
  • Denmark: 8212008067
  • Sweden: 2539777

Including:

L02-L10
Dimensions: Height Width Depth
mm: 162 77 1
inch: 6.38 3.03 0.04
Materials:
Material:
Base colour:
Cover colour:
Gasket material:
Temperatures:
Temperature °C (short term):: -40 … 120 °C
Temperature °C (continuous):
Temperature °F (short term): -40 … 250 °F
Temperature °F (continuous): -40 … 175 °F
Rating:
Ingress protection (EN 60529):
Impact Resistance (EN 62262):
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 0
UV resistance: -
Flammability Rating:
Glow Wire Test (IEC 695-2-1) °C: C
NEMA Class
Certificates:
