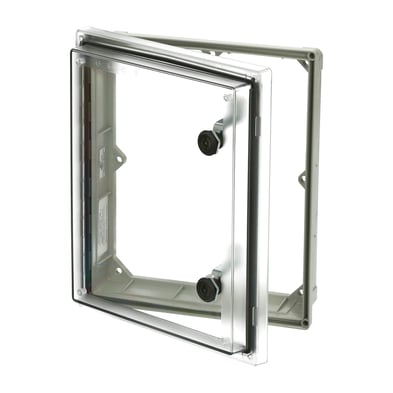

AR IPW 1614 BT product image 2

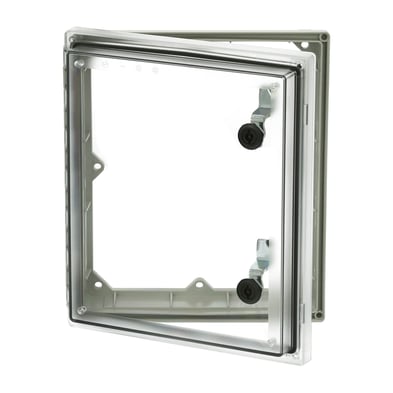

AR IPW 1614 BT product image 3
AR IPW 1614 BT product image 4
AR IPW 1614 BT product image 5

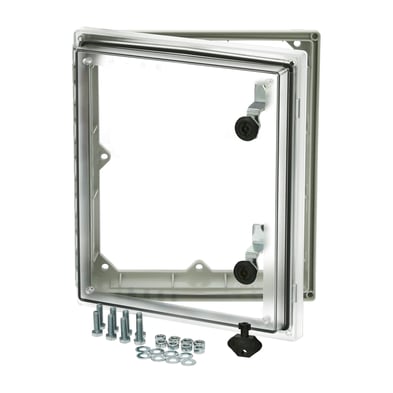

AR IPW 1614 BT product image 6
AR IPW 1614 BT product image 1
AR IPW 1614 BT product image 2
Next slide
AR IPW 1614 BT thumbnail image 1
AR IPW 1614 BT thumbnail image 2
AR IPW 1614 BT thumbnail image 3
AR IPW 1614 BT thumbnail image 4
AR IPW 1614 BT thumbnail image 5
AR IPW 1614 BT thumbnail image 6
AR IPW 1614 BT thumbnail image 1
AR IPW 1614 BT thumbnail image 2

Windows/HMI protection / Inspection protection windows / AR IPW 1614 BT

AR IPW 1614 BT 8561804

  • PC : IP66; IK09
Technical data
Product:

Product nr : 8561804

Description : IPW Inspection Protection window,

Remarks : 452x400x88 mm, DB3 lock, Transparent cover

Package : 1

Unit : Piece

EAN : 6418074088031

Electric No. Denmark : 8212096846

ETIM : EC002527

Materials :

Material : Polycarbonate

Temperatures :

Temperature °C : -40 … 80 °C

Temperature °F : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66

Impact Resistance (EN 62262): IK09

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

UL Type : NEMA 4, 4X, 12 and 13

Product is connected to following catalogues :

Windows/HMI protection / Inspection protection windows / AR IPW 1614 BT

AR IPW 1614 BT

Fibox
8561804_AR_IPW_1614_B_T 360_ANIMA_SMALL.gif

Sample image

Order symbol : AR IPW 1614 BT

Product nr : 8561804

Description : IPW Inspection Protection window,

Remarks : 452x400x88 mm, DB3 lock, Transparent cover

EAN : 6418074088031

El. number :

  • Denmark : 8212096846
Dimensions : Height Width Depth
Materials :
Material : Polycarbonate
Temperatures :
Temperature °C (continuous) : -40 … 80 °C
Temperature °F (continuous) : -40 … 175
Ratings :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK09;
electrical_insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
UL Type NEMA 4, 4X, 12 and 13
Certificates :
ARCA_CertificateofCompliance
