Windows/HMI protection / Inspection protection windows / PW 343009 T

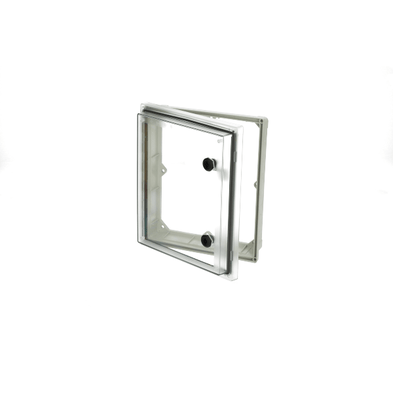

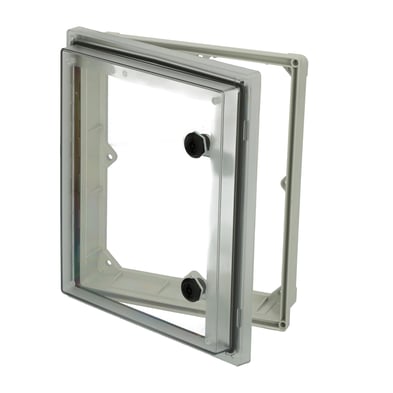

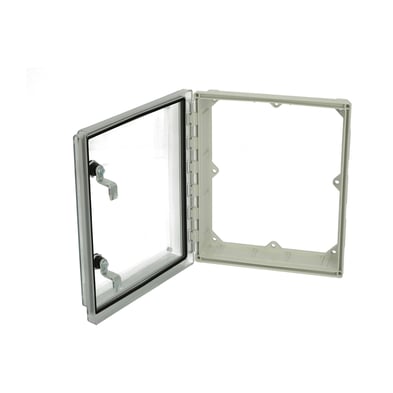

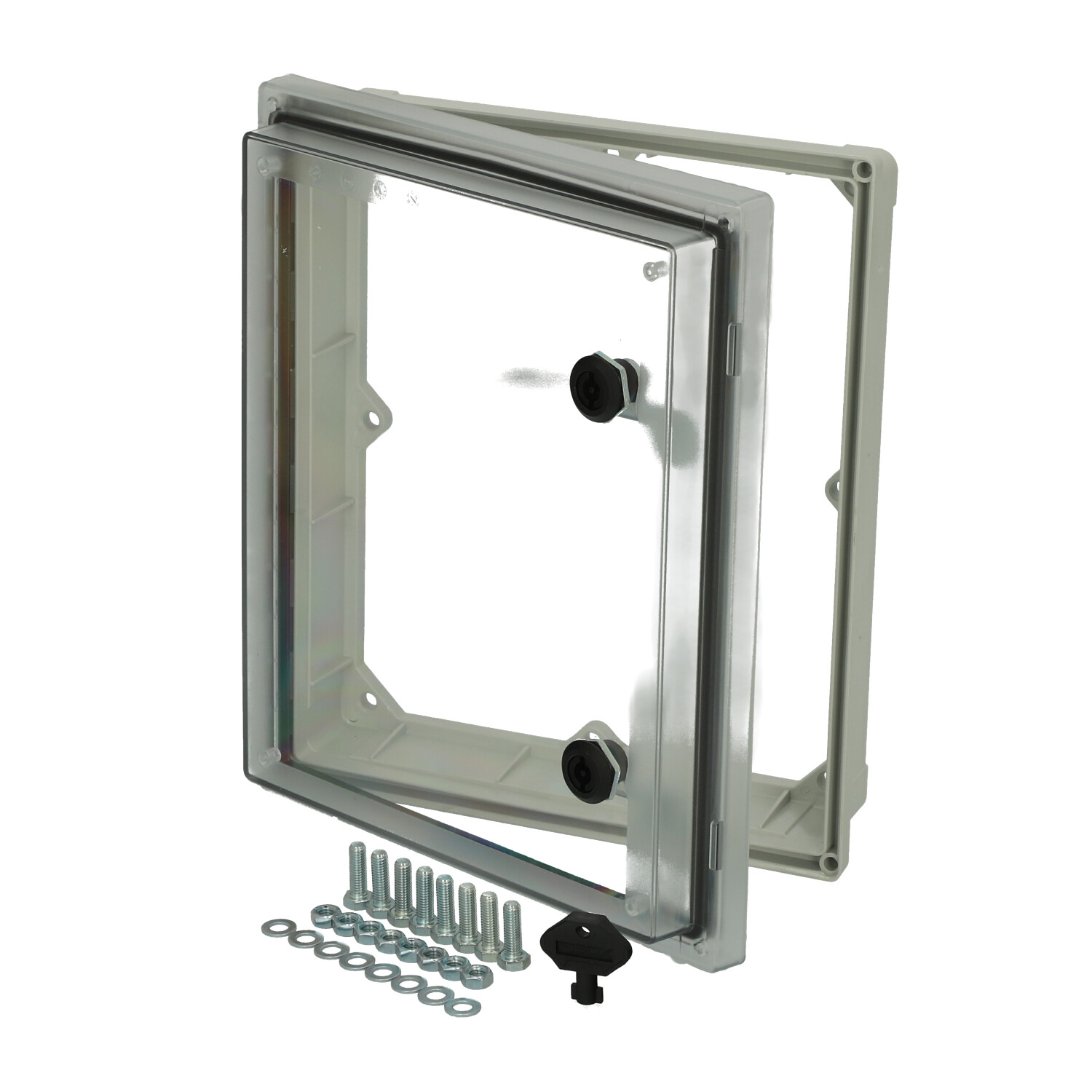

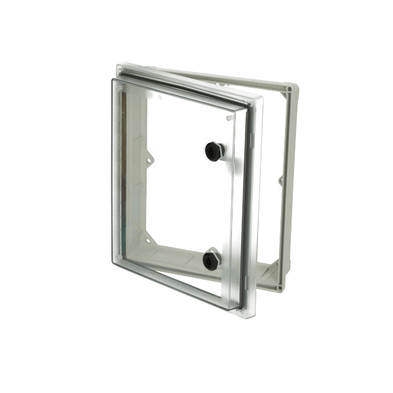

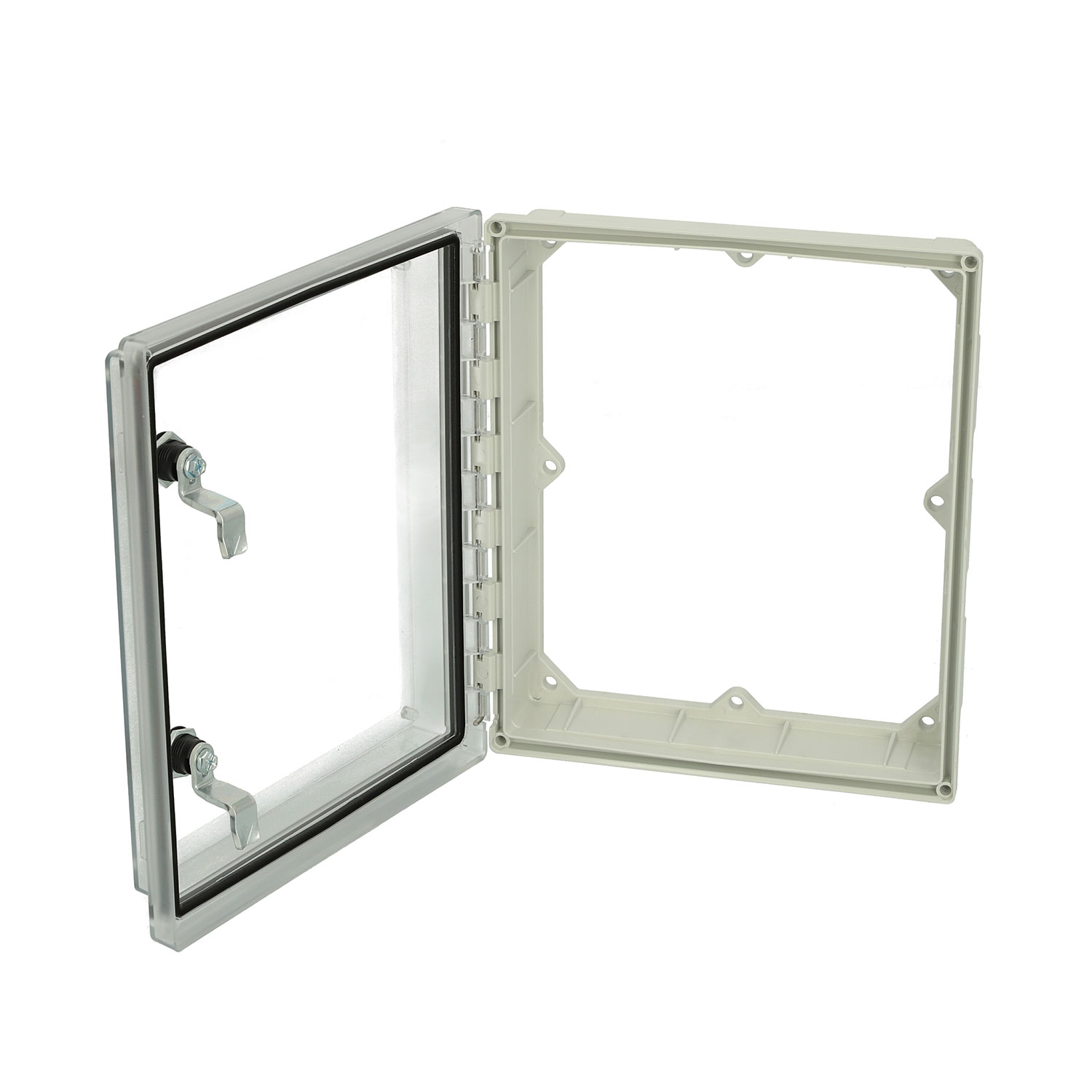

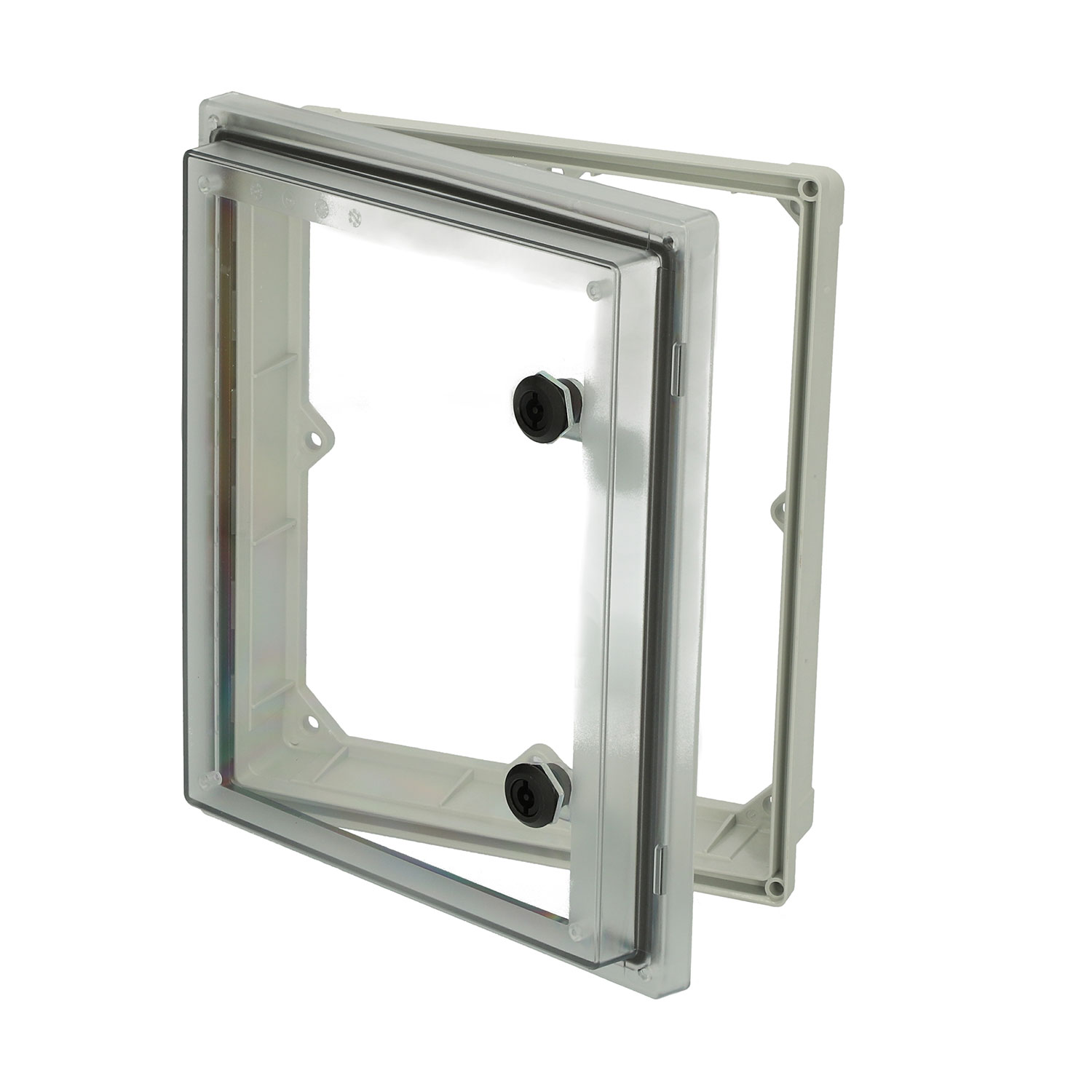

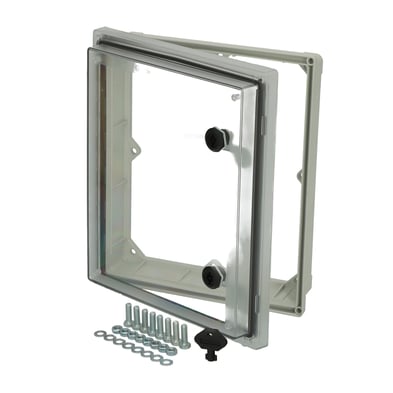

PW 343009 T 4901824

Dimensions 342 x 295 x 88.

  • PC : IP66; IK09;
Technical data
Product:

Product nr: 4901824

Description: PW Inspection Protection window.

Remarks: DB3 lock. Transparent cover

Package: 1

Unit: Piece

EAN: 6418074309747

SSTL number: 3424430

Electric No. Denmark:

Electric No. Sweden:

ETIM: EC002527 Window (switchgear cabinet)

Dimensions :

Height (mm): 342

Width (mm): 295

Depth (mm): 88

Height (inch) : 12

Width (inch) : 10

Depth (inch) : 3.3

Materials :

Material: Polycarbonate

Temperatures:

Temperature °C (short term) : -40 … 120 °C

Temperature °C (continuous) : -40 … 80 °C

Temperature °F (short term) : -40 … 250 °F

Temperature °F (continuous) : -40 … 175 °F

Ratings :

Ingress Protection (EN 60529) : IP66;

Impact Resistance (EN 62262) : IK09;

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695) : 960 °CC

NEMA Class : NEMA 4, 4X, 12 and 13

Product is connected to following catalogs :

Windows/HMI protection / Inspection protection windows / PW 343009 T

CAD Files
Certificates and Declarations
Contact

PW 343009 T

Fibox
ipw_fam2

Sample image

Order symbol: PW 343009 T

Product nbr: 4901824

Description: PW Inspection Protection window.

Remarks: DB3 lock. Transparent cover

EAN: 6418074309747

El. number:

  • Finland: 3424430
  • Denmark:
  • Sweden:

Including:

FIBOX PW_343009_T.pdf
Dimensions: Height Width Depth
mm: 342 295 88
inch: 12 10 3.3
Materials:
Material: Polycarbonate
Base colour:
Cover colour:
Gasket material:
Temperatures:
Temperature °C (short term):: -40 … 120 °C
Temperature °C (continuous): -40 … 80 °C
Temperature °F (short term): -40 … 250 °F
Temperature °F (continuous): -40 … 175 °F
Rating:
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK09;
Electrical insulation: Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 94 V0
Glow Wire Test (IEC 695-2-1) °C: 960 °CC
NEMA Class NEMA 4, 4X, 12 and 13
Certificates:
