Windows/HMI protection / Inspection protection windows / PW 454009 T

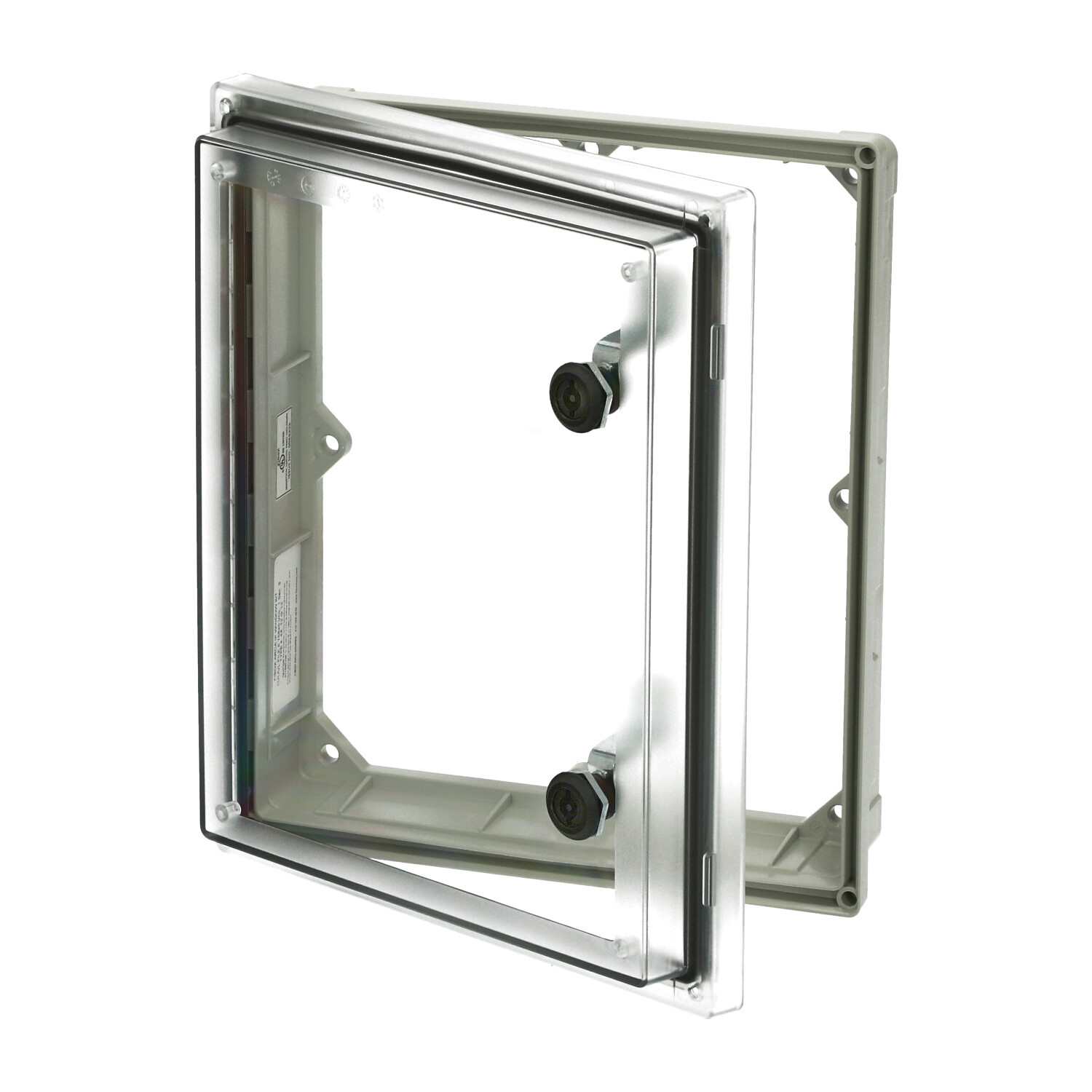

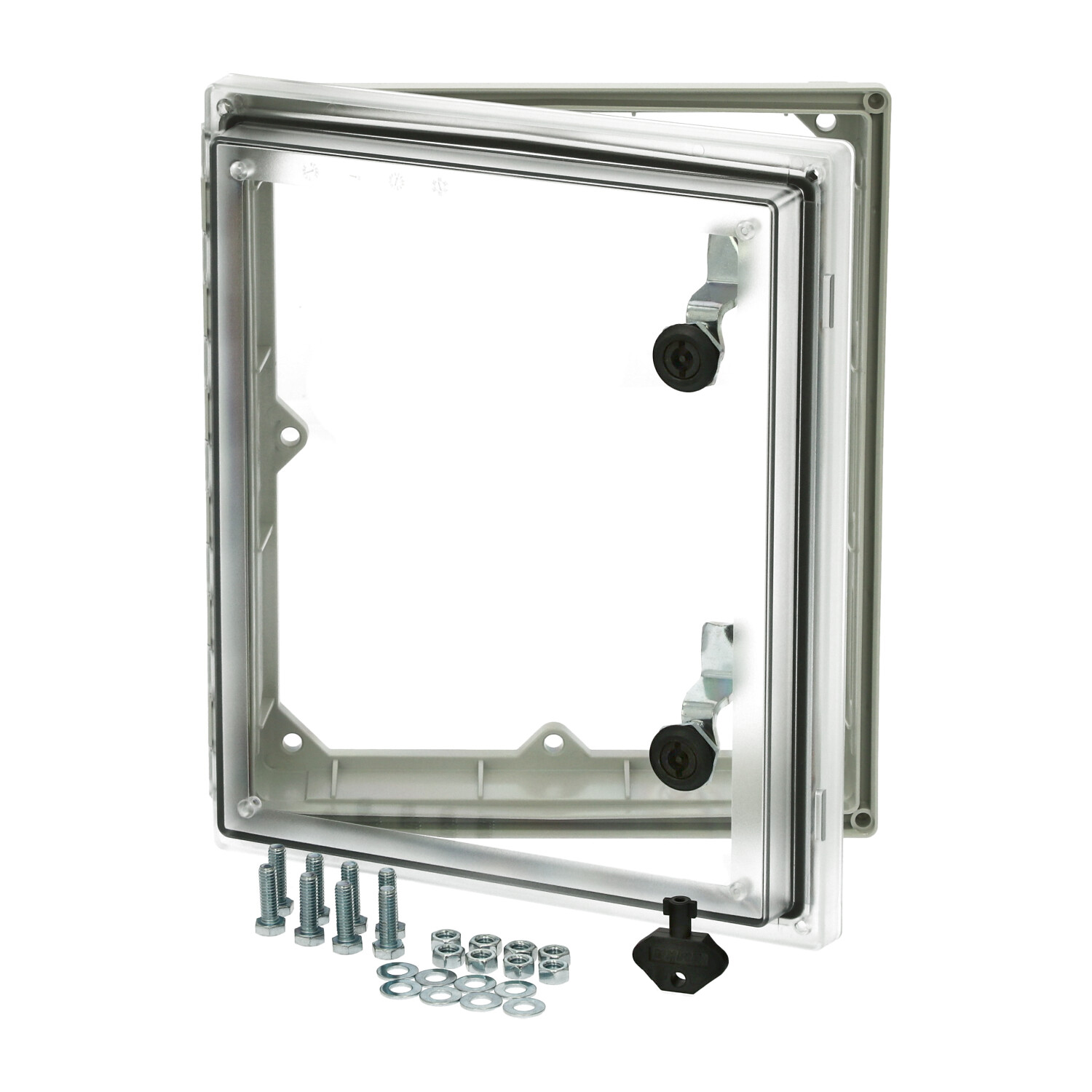

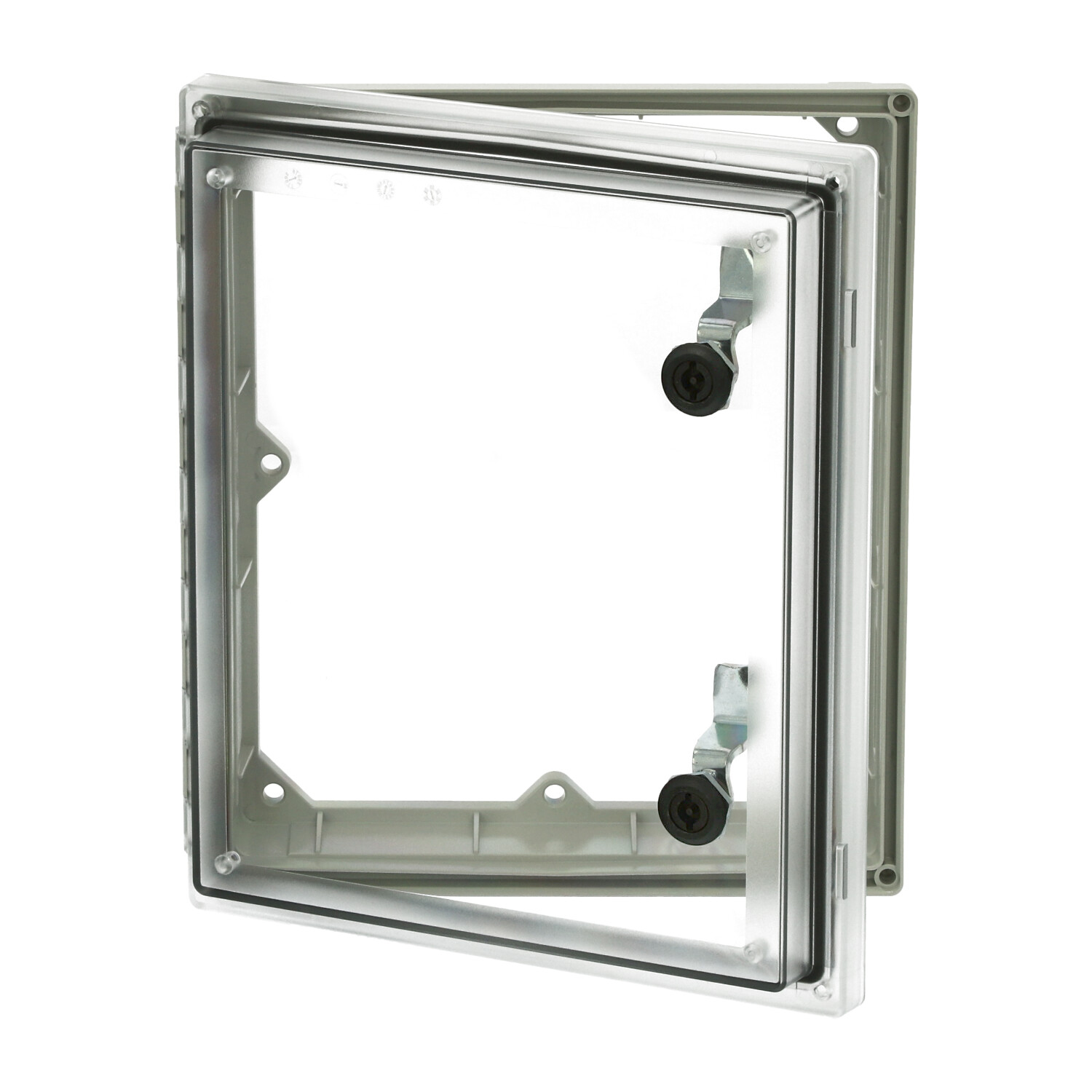

PW 454009 T 4901804

Dimensions 452 x 400 x 88.

  • PC : IP66; IK09;
Technical data
Product:

Product nr : 4901804

Description : PW Inspection Protection window,

Remarks : 342x295x88 mm, DB3 lock, Transparent cover

Package : 1

Unit : Piece

EAN : 6418074309730

SSTL number : 3424431

Electric No. Denmark :

Electric No. Sweden :

ETIM : EC002527 Window (switchgear cabinet)

Dimensions :

Height (mm) : 452

Width (mm) : 400

Depth (mm) : 88

Height (inch) : 16

Width (inch) : 14

Depth (inch) : 3.3

Materials :

Material : Polycarbonate

Temperatures :

Temperature °C (short term) : -40 … 120 °C

Temperature °C (continuous) : -40 … 80 °C

Temperature °F (short term) : -40 … 250 °F

Temperature °F (continuous) : -40 … 175 °F

Ratings :

Ingress Protection (EN 60529): IP66;

Impact Resistance (EN 62262): IK09;

Electrical insulation : Not insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960 °CC

NEMA Class : NEMA 4, 4X, 12 and 13

Product is connected to following catalogues :

Windows/HMI protection / Inspection protection windows / PW 454009 T

CAD Files
Certificates and Declarations
Contact

PW 454009 T

Fibox
ipw_fam2

Sample image

Order symbol : PW 454009 T

Product nr : 4901804

Description : PW Inspection Protection window,

Remarks : 342x295x88 mm, DB3 lock, Transparent cover

EAN : 6418074309730

El. number :

  • Finland : 3424431
  • Denmark :
  • Sweden :

Including :

FIBOX PW_454009_T.pdf
Dimensions : Height Width Depth
mm : 452 400 88
inch : 16 14 3.3
Materials :
Material : Polycarbonate
Base colour :
Cover colour :
Gasket material :
Temperatures :
Temperature °C (short term) : -40 … 120 °C
Temperature °C (continuous) : -40 … 80 °C
Temperature °F (short term) : -40 … 250 °F
Temperature °F (continuous) : -40 … 175 °F
Rating :
Ingress protection (EN 60529): IP66;
Impact Resistance (EN 62262): IK09;
Electrical insulation : Not insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960 °CC
NEMA Class NEMA 4, 4X, 12 and 13
Certificates :
