Description : Pressure equalizer plug
Remarks : RAL 7035, thread M12x 1,5
Package : 100
Unit : Piece
EAN : 6418074091314
SSTL number : 1721449
Electric No. Denmark : 8212054529
Electric No. Sweden : 1458625
ETIM : EC011497
Ingress Protection : IP66 | IP68 | IP69K
Height (mm) : 14
Width (mm) : 20
Depth (mm) : 20
Height (inch) : 0.55
Width (inch) : 0.79
Depth (inch) : 0.79
Material : Polyamide
Gasket material : NBR
Temperature °C : -20 … 100
Temperature °F : -2 … 212
Ingress Protection (EN 60529): IP66IP68IP69K
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
CAD Drawings
Please note, that we need you permission in order for you to view the CAD files.
GVPPA M12

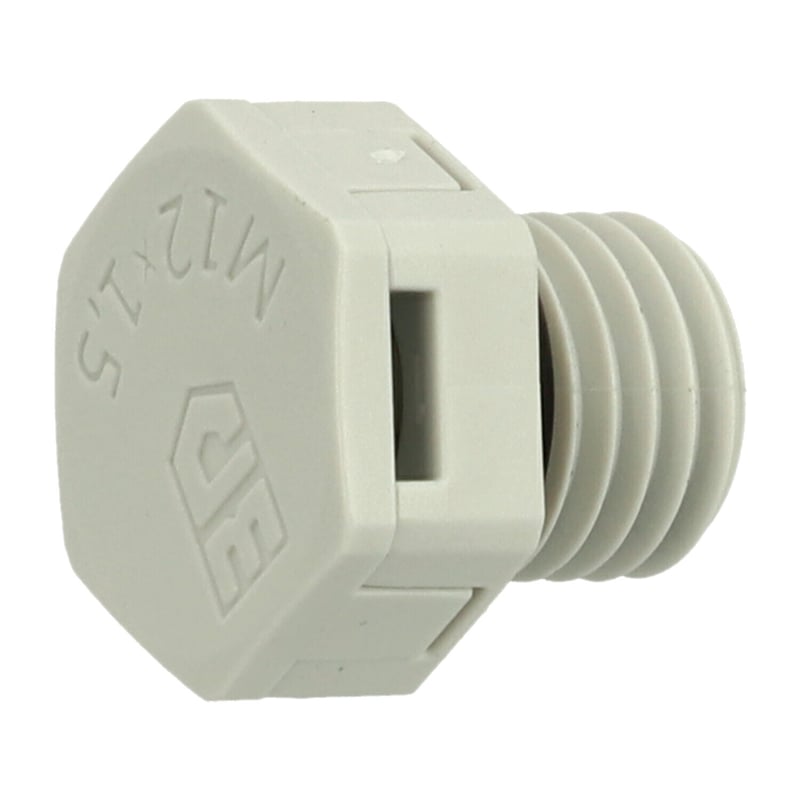

Sample image
Order symbol : GVPPA M12
Product nr : 7016702
Description : Pressure equalizer plug
Remarks : RAL 7035, thread M12x 1,5
EAN : 6418074091314
El. number :
- Finland : 1721449
- Denmark : 8212054529
- Sweden : 1458625
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 14 | 20 | 20 |
| inch : | 0.55 | 0.79 | 0.79 |
| Materials : | |
|---|---|
| Material : | Polyamide |
| Gasket material : | NBR |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -20 … 100 |
| Temperature °F (continuous) : | -2 … 212 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP68; IP69K; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
