UL PC 2828 13 G 5320362
Dimensions 280 x 280 x 130
Dimensions 11.02 x 11.02 x 5.12
- PC : IP66; IP67; IK08
Technical data
Product nr : 5320362
Description : UL Enclosure, PC
Remarks : Grey cover
Package : 4
Unit : Piece
EAN : 6418074037565
Electric No. Denmark : 8212033090
ETIM : EC000261
Height (mm) : 280
Width (mm) : 280
Depth (mm) : 130
Height (inch) : 11.02
Width (inch) : 11.02
Depth (inch) : 5.12
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
UL Type : Type 1, 3, 3S, 4, 4X, 6, 6P or 12
/ /

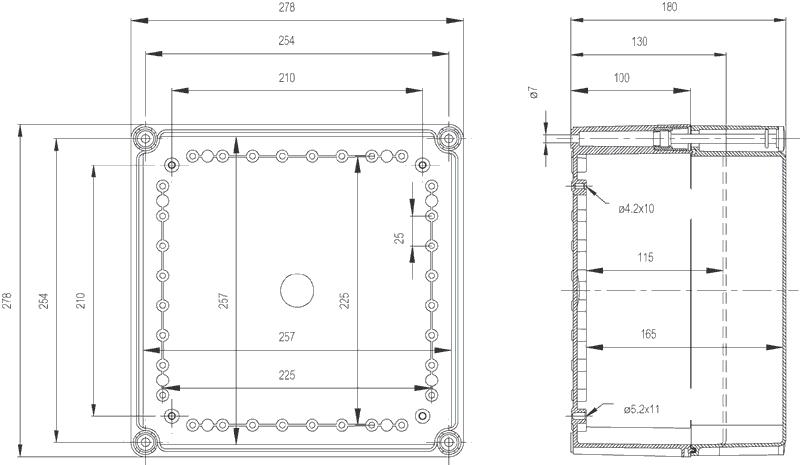

Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
UL PC 2828 13 G
Sample image
Order symbol : UL PC 2828 13 G
Product nr : 5320362
Description : UL Enclosure, PC
Remarks : Grey cover
EAN : 6418074037565
El. number :
- Denmark : 8212033090
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 280 | 280 | 130 |
| inch : | 11.02 | 11.02 | 5.12 |
| Materials : |
|---|
| Temperatures : | |
|---|---|
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| UL Type | Type 1, 3, 3S, 4, 4X, 6, 6P or 12 |
| Certificates : | |
|---|---|
| EK_Solid_CertificateofCompliance | |
