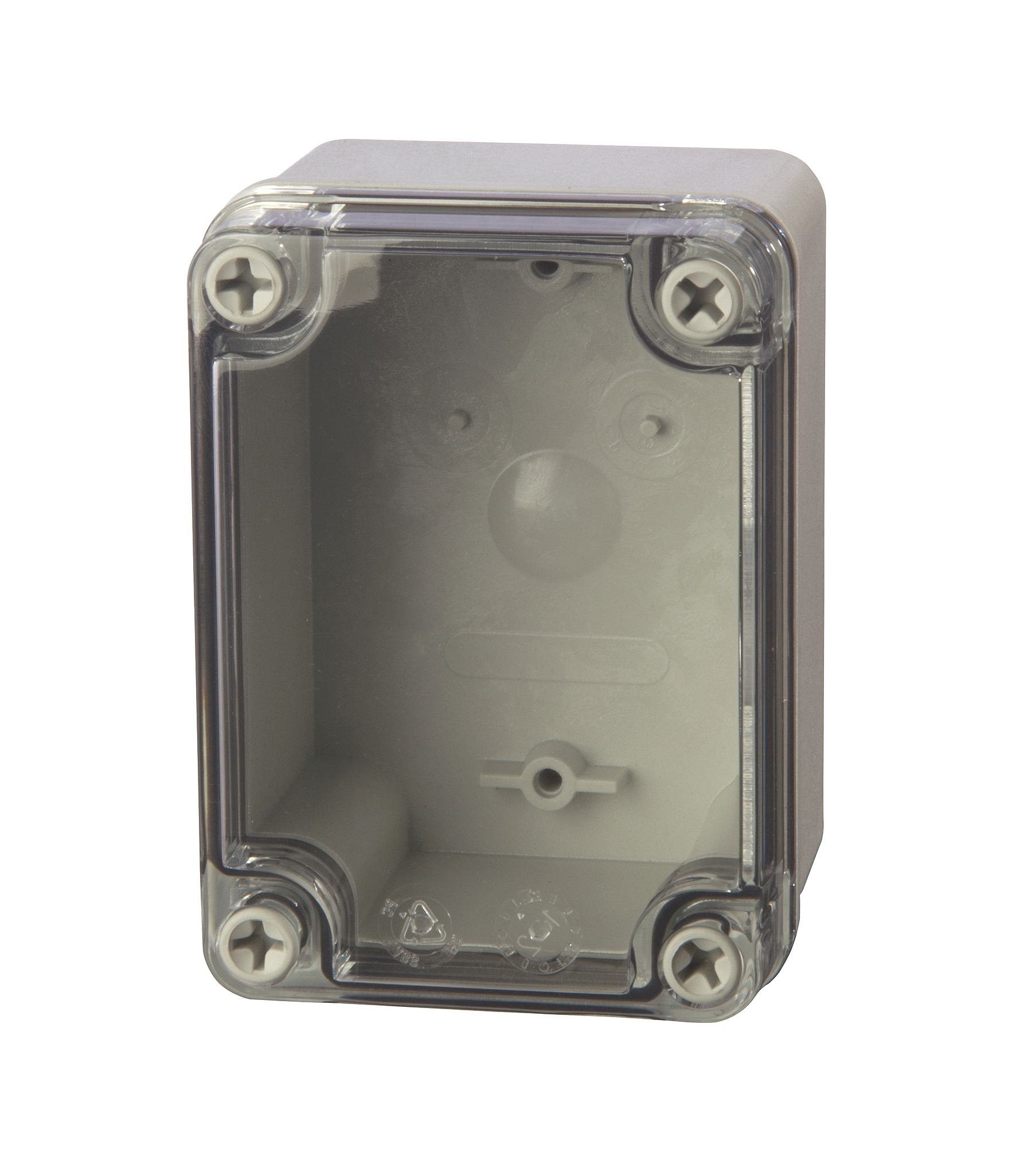

UL PC B 65 T 8714003
Dimensions 110 x 80 x 65
Dimensions 4.33 x 3.15 x 2.56
- PC : IP66; IP67; IK08
Technical data
Product nr : 8714003
Description : UL Enclosure, PC
Remarks : Transparent cover
Package : 8
Unit : Piece
EAN : 6418074038807
Electric No. Denmark : 8212031021
ETIM : EC000261
Height (mm) : 110
Width (mm) : 80
Depth (mm) : 65
Height (inch) : 4.33
Width (inch) : 3.15
Depth (inch) : 2.56
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
UL Type : Type 1, 4X, 6, 12 or 13
UL PICCOLO / UL PC B / UL PC B 65 T
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
UL PC B 65 T
Sample image
Order symbol : UL PC B 65 T
Product nr : 8714003
Description : UL Enclosure, PC
Remarks : Transparent cover
EAN : 6418074038807
El. number :
- Denmark : 8212031021
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 110 | 80 | 65 |
inch : | 4.33 | 3.15 | 2.56 |
Materials : |
---|
Temperatures : | |
---|---|
Temperature °F (continuous) : | -40 … 175 |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
UL Type | Type 1, 4X, 6, 12 or 13 |
Certificates : | |
---|---|
PICCOLO_CertificateofCompliance |
