UL PC 050504 7042500
Dimensions 52 x 50 x 40
Dimensions 2.05 x 1.97 x 1.57
- PC : IP66; IP67; IK07; IK08
Technical data
Product nr : 7042500
Description : UL Enclosure, PC
Remarks : Grey cover
Package : 8
Unit : Piece
EAN : 6418074054272
Electric No. Denmark : 8212032017
ETIM : EC000261
Height (mm) : 52
Width (mm) : 50
Depth (mm) : 40
Height (inch) : 2.05
Width (inch) : 1.97
Depth (inch) : 1.57
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
UL Type : Type 1, 4, 4X, 12 or 13
/ /

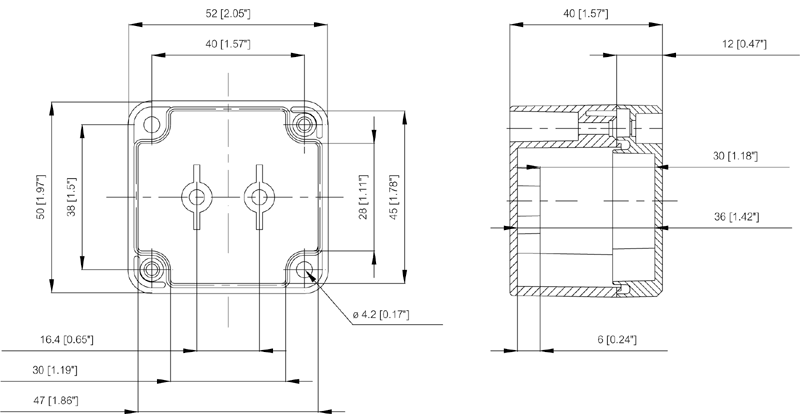

Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
UL PC 050504
Sample image
Order symbol : UL PC 050504
Product nr : 7042500
Description : UL Enclosure, PC
Remarks : Grey cover
EAN : 6418074054272
El. number :
- Denmark : 8212032017
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 52 | 50 | 40 |
| inch : | 2.05 | 1.97 | 1.57 |
| Materials : |
|---|
| Temperatures : | |
|---|---|
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| UL Type | Type 1, 4, 4X, 12 or 13 |
| Certificates : | |
|---|---|
| Euronord_CAB_ALU_CertificateofCompliance | |
