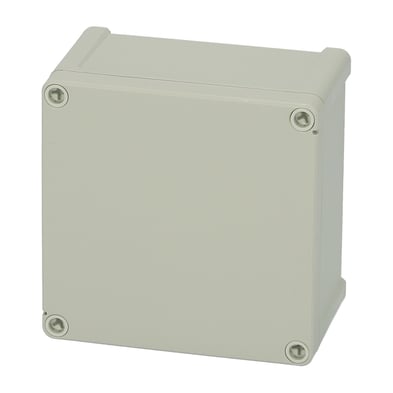

Tempo / TEMPO 1313 / TPC 131308
TPC 131308 5824041
Dimensions 130 x 130 x 75
Dimensions 5.12 x 5.12 x 2.95
- PC : IP65; IK07; IK08
Technical data
Product nr : 5824041
Description : Enclosure, PC
Remarks : Grey cover
Package : 4
Unit : Piece
EAN : 6418074049773
SSTL number : 3424401
Electric No. Denmark : 8212052068
ETIM : EC000261
Height (mm) : 130
Width (mm) : 130
Depth (mm) : 75
Height (inch) : 5.12
Width (inch) : 5.12
Depth (inch) : 2.95
Material : Polycarbonate
Temperature °F : -40 … 175
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
Tempo / TEMPO 1313 / TPC 131308
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
TPC 131308
![Fibox Fibox](https://www.fibox.com/hs-fs/hubfs/fibox-2021/logo/eclosing/png/fibox_enclosing-logo-2021-rgb-07.png?width=250&name=fibox_enclosing-logo-2021-rgb-07.png)
![5824041_TPC131308 360_ANIMA_SMALL.gif](https://www.fibox.com/hs-fs/hubfs/assets/5824041_TPC131308%20360_ANIMA_SMALL.gif?width=200&name=5824041_TPC131308%20360_ANIMA_SMALL.gif)

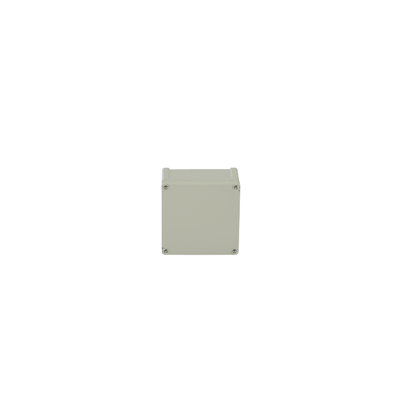

Sample image
Order symbol : TPC 131308
Product nr : 5824041
Description : Enclosure, PC
Remarks : Grey cover
EAN : 6418074049773
El. number :
- Finland : 3424401
- Denmark : 8212052068
![Tempo-1313_Combi](https://www.fibox.com/hubfs/assets/Tempo-1313_Combi.gif)
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 130 | 130 | 75 |
inch : | 5.12 | 5.12 | 2.95 |
Materials : | |
---|---|
Material : | Polycarbonate |
Temperatures : | |
---|---|
Temperature °F (continuous) : | -40 … 175 |
Accessories : | |
---|---|
MIV 10 |
DIN-35 Mounting rail, for enclosures:
(100 x 35 x 7) |
FP 10674 |
Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP65; |
Impact Resistance (EN 62262): | IK07; IK08; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | UL 746C |
Flammability Rating : | UL 94 V0 |
Glow Wire Test (IEC 695-2-1) °C : | 960C |
Certificates : | |
---|---|
Certificate FI 40343 |
