TA131308 5814041
Dimensions 130 x 130 x 75.
Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.
- PC : IP65; IK07;
Technical data
Product nr: 5814041
Description: Enclosure. ABS
Remarks: Opaque cover
Package: 8
Unit: Piece
EAN: 6418074011497
SSTL number:
Electric No. Denmark: 8212045240
Electric No. Sweden: 5814041
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 130
Width (mm): 130
Depth (mm): 75
Height (inch) : 5.12
Width (inch) : 5.12
Depth (inch) : 2.95
Material: ABS
Temperature °C (short term) : -40 … 80
Temperature °C (continuous) :
Temperature °F (short term) : -40 … 175
Temperature °F (continuous) : -40 … 140
Ingress Protection (EN 60529) : IP65;
Impact Resistance (EN 62262) : IK07;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695) : 650 °C
NEMA Class :
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
TA131308

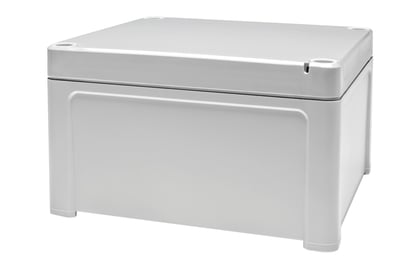

Sample image
Order symbol: TA131308
Product nbr: 5814041
Description: Enclosure. ABS
Remarks: Opaque cover
EAN: 6418074011497
El. number:
- Finland:
- Denmark: 8212045240
- Sweden: 5814041
Including: Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.
| Dimensions: | Height | Width | Depth |
|---|---|---|---|
| mm: | 130 | 130 | 75 |
| inch: | 5.12 | 5.12 | 2.95 |
| Materials: | |
|---|---|
| Material: | ABS |
| Base colour: | |
| Cover colour: | |
| Gasket material: | |
| Temperatures: | |
|---|---|
| Temperature °C (short term):: | -40 … 80 |
| Temperature °C (continuous): | |
| Temperature °F (short term): | -40 … 175 |
| Temperature °F (continuous): | -40 … 140 |
| Accessories: | |
|---|---|
| MIV 10 | DIN-35 Mounting rail. for enclosures: (100 x 35 x 1) |
| FP 10674 | Mounting foot kit (2 pcs) incl. screws |
| Rating: | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK07; |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | 1 |
| UV resistance: | - |
| Flammability Rating: | UL 94 HB |
| Glow Wire Test (IEC 695-2-1) °C: | 650 °C |
| NEMA Class | |
| Certificates: | |
|---|---|
| Certificate FI 40343 | |
