Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.
![TAM131308 product image 1](https://www.fibox.com/hs-fs/hubfs/assets/5814023_TAM131308_2_72dpi.jpg?length=393&name=5814023_TAM131308_2_72dpi.jpg)
![TAM131308 product image 2](https://www.fibox.com/hs-fs/hubfs/assets/5814023_TAM131308_1_72dpi.jpg?length=393&name=5814023_TAM131308_1_72dpi.jpg)
![TAM131308 product image 1](https://www.fibox.com/hs-fs/hubfs/assets/5814023_TAM131308%20360_ANIMA_SMALL.gif?length=393&name=5814023_TAM131308%20360_ANIMA_SMALL.gif)
![TAM131308 thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/5814023_TAM131308_2_72dpi.jpg?length=52&name=5814023_TAM131308_2_72dpi.jpg)
![TAM131308 thumbnail image 2](https://www.fibox.com/hs-fs/hubfs/assets/5814023_TAM131308_1_72dpi.jpg?length=52&name=5814023_TAM131308_1_72dpi.jpg)
![TAM131308 thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/5814023_TAM131308%20360_ANIMA_SMALL.gif?length=52&name=5814023_TAM131308%20360_ANIMA_SMALL.gif)
Tempo / TEMPO 1313 / TAM131308
TAM131308 5814023
Dimensions 130 x 130 x 75
Dimensions 5.12 x 5.12 x 2.95
Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.
- PC : IP65; IK07
Technical data
Product nr : 5814023

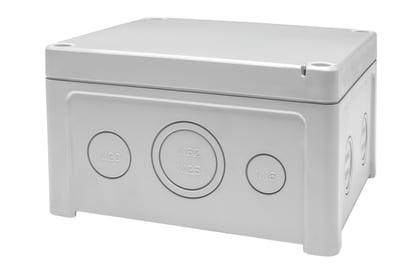

Description : Enclosure, ABS, metric knock-outs
Remarks : Grey cover
Package : 8
Unit : Piece
EAN : 6418074011459
SSTL number : 3438266
Electric No. Denmark : 8212045282
Electric No. Sweden : 5814023
ETIM : EC000261
Height (mm) : 130
Width (mm) : 130
Depth (mm) : 75
Height (inch) : 5.12
Width (inch) : 5.12
Depth (inch) : 2.95
Material : ABS
Temperature °F : -40 … 140
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK07
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695): 650C
Tempo / TEMPO 1313 / TAM131308
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
TAM131308
![Fibox Fibox](https://www.fibox.com/hs-fs/hubfs/fibox-2021/logo/eclosing/png/fibox_enclosing-logo-2021-rgb-07.png?width=250&name=fibox_enclosing-logo-2021-rgb-07.png)
![5814023_TAM131308_2_72dpi.jpg](https://www.fibox.com/hs-fs/hubfs/assets/5814023_TAM131308_2_72dpi.jpg?width=200&name=5814023_TAM131308_2_72dpi.jpg)

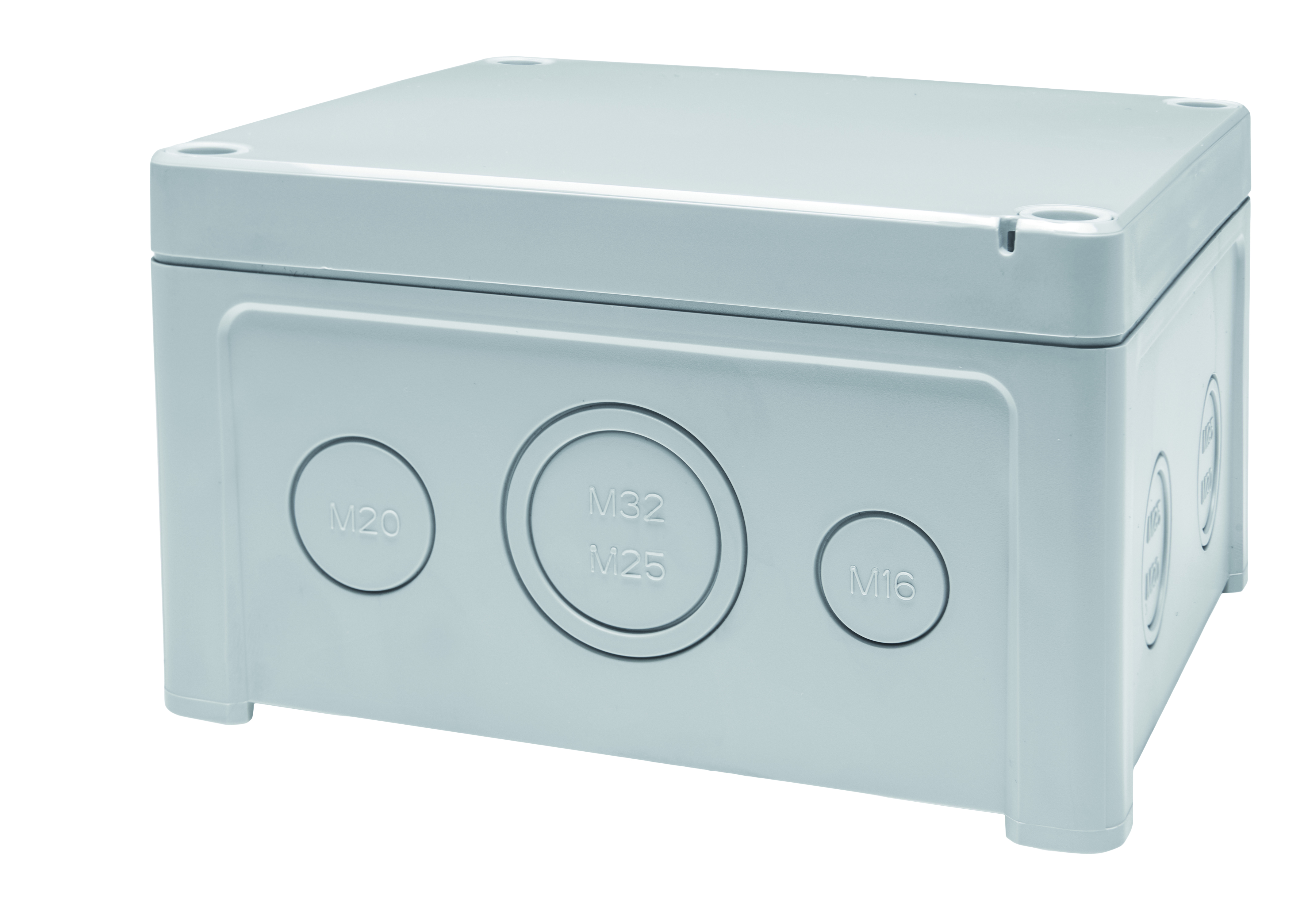

Sample image
Order symbol : TAM131308
Product nr : 5814023
Description : Enclosure, ABS, metric knock-outs
Remarks : Grey cover
EAN : 6418074011459
El. number :
- Finland : 3438266
- Denmark : 8212045282
- Sweden : 5814023
Including : Base with PUR gasket and screws for mounting plate/DIN-rail. cover with polyamide cover screws and plastic hinges.
![Tempo-1313_Combi](https://www.fibox.com/hubfs/assets/Tempo-1313_Combi.gif)
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 130 | 130 | 75 |
inch : | 5.12 | 5.12 | 2.95 |
Materials : | |
---|---|
Material : | ABS |
Temperatures : | |
---|---|
Temperature °F (continuous) : | -40 … 140 |
Accessories : | |
---|---|
MIV 10 |
DIN-35 Mounting rail, for enclosures:
(100 x 35 x 7) |
FP 10674 |
Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP65; |
Impact Resistance (EN 62262): | IK07; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | - |
Flammability Rating : | UL 94 HB |
Glow Wire Test (IEC 695-2-1) °C : | 650C |
Certificates : | |
---|---|
Certificate FI 40343 |
© Fibox Oy, Data subject to change without notice (printed: )
