Description : Enclosure, PC, metric knock-outs
Remarks : Grey cover
Package : 1
Unit : Piece
EAN : 6418074064929
SSTL number : 3424391
Electric No. Denmark : 8212052178
Electric No. Sweden : 2508717
ETIM : EC000261
Ingress Protection : IP65 | IK07 | IK08
Height (mm) : 95
Width (mm) : 65
Depth (mm) : 60
Height (inch) : 3.74
Width (inch) : 2.56
Depth (inch) : 2.36
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards : EN 62208:2011, IEC 62208:2011
Ingress Protection (EN 60529): IP65
Impact Resistance (EN 62262): IK07IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- TA0907C.dwg
- TA0907C.dxf
- FIBOX_TEMPO_0907C.x_t
- FIBOX_TEMPO_0907C.zip
- TA0907B.dwg
- TA0907B.dxf
- FIBOX_TEMPO_0907B.x_t
- FIBOX_TEMPO_0907B.zip
- 5824020_FIBOX_TEMPO_TPCM_090706.step
Please note, that we need you permission in order for you to view the CAD files.
TPCM 090706

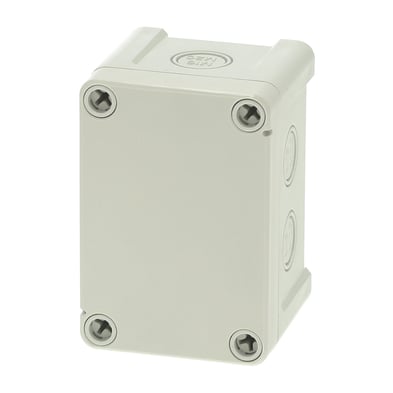

Sample image
Order symbol : TPCM 090706
Product nr : 5824020
Description : Enclosure, PC, metric knock-outs
Remarks : Grey cover
EAN : 6418074064929
El. number :
- Finland : 3424391
- Denmark : 8212052178
- Sweden : 2508717

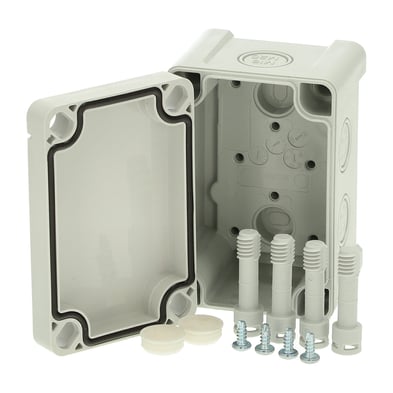

Including : Base with PUR gasket and screws for mounting plate/DIN-rail, cover with polyamide cover screws and plastic hinges.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 95 | 65 | 60 |
| inch : | 3.74 | 2.56 | 2.36 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| FP 10674 |
Wall fastening lug (2 pcs) incl. screws
(40 x 88 x 14) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP65; |
| Impact Resistance (EN 62262): | IK07; IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 V0 |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| Certificate FI 40343 | |
