Description : Mounting plate, for enclosures:
Remarks : 280x280x130, 280x280x180, 560x280x130
Package : 4
Unit : Piece
EAN : 6418074039774
SSTL number : 3424880
Electric No. Denmark : 8212007835
Electric No. Sweden : 2538307
ETIM : EC000213
Height (mm) : 238
Width (mm) : 238
Depth (mm) : 1.5
Height (inch) : 9.37
Width (inch) : 9.37
Depth (inch) : 0.06
Material : Galvanized steel
Temperature °C : -40 … 80
Temperature °F : -40 … 175
CAD Drawings
- 3770551 EKOVT 10551_B2.dwg
- 3770551 EKOVT 10551_B2.dxf
- EKOVT 1.5.step
- EKOVT 1.5.zip
- 3770551_EKOVT 1.5.step
Please note, that we need you permission in order for you to view the CAD files.
EKOVT

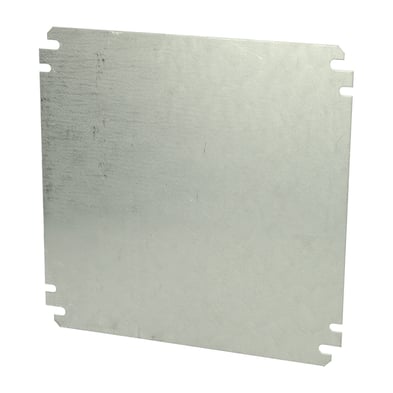

Sample image
Order symbol : EKOVT
Product nr : 3770551
Description : Mounting plate, for enclosures:
Remarks : 280x280x130, 280x280x180, 560x280x130
EAN : 6418074039774
El. number :
- Finland : 3424880
- Denmark : 8212007835
- Sweden : 2538307
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 238 | 238 | 1.5 |
| inch : | 9.37 | 9.37 | 0.06 |
| Materials : | |
|---|---|
| Material : | Galvanized steel |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| electrical_insulation : | Not insulated |
| UV resistance : | - |
