    Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

SOLID / SOLID 5638 / PC 5638 18 G-3FSH

PC 5638 18 G-3FSH 2539527

Dimensions 560 x 380 x 180

Dimensions 22.05 x 14.96 x 7.09

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC : IP65; IK08

Product number : 2539527 Download product card

Technical data

Product:

Product nr : 2539527

Description : Enclosure, PC

Remarks : Grey hinged cover

Package : 1

Unit : Piece

EAN : 6418074052810

SSTL number : 3435744

Electric No. Denmark : 8212051894

Electric No. Sweden : 2539527

ETIM : EC000261

Dimensions :

Height (mm) : 560

Width (mm) : 380

Depth (mm) : 180

Height (inch) : 22.05

Width (inch) : 14.96

Depth (inch) : 7.09

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2003, IEC 62208:2003

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

SOLID / SOLID 5638 / PC 5638 18 G-3FSH

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

EKUVT

Mounting plate, for enclosures:
(518 x 338 x 1)

EKV 32

DIN-35 Mounting rail, for enclosures:
(335 x 35 x 1)

EKUZR

Extension frame, for enclosures:
(560 x 380 x 50)

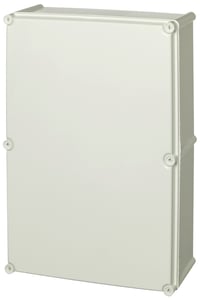

Sample image
