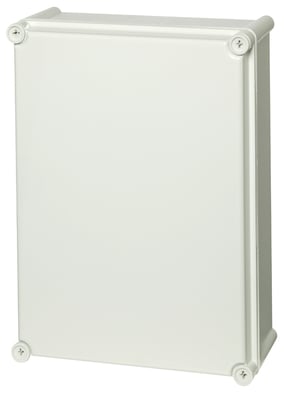

PC_3828_13_G
Next slide
PC_3828_13_G

SOLID / SOLID 3828 / ABS 3828 18 G

ABS 3828 18 G 5880373

Dimensions 380 x 280 x 180.

Including: Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

  • PC: IP66; IP67; IK08; EN 62208:2003. IEC 62208:2003
Technical data
Product:

Product nr: 5880373

Description: Enclosure. ABS

Remarks: Opaque cover

Package: 4

Unit: Piece

EAN: 6418074039095

SSTL number: 3423769

Electric No. Denmark:

Electric No. Sweden: 2539723

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 380

Width (mm): 280

Depth (mm): 180

Height (inch): 14.96

Width (inch): 11.02

Depth (inch): 7.09

Materials:

Material: ABS

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 80

Temperature °C (continuous): -40 … 60

Temperature °F (short term): -40 … 175

Temperature °F (continuous): -40 … 140

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: -

Flammability Rating: UL 94 HB

Glow Wire Test (IEC 695-2-1): 650 °C

NEMA Class:

Product is connected to following catalogs:

SOLID / SOLID 3828 / ABS 3828 18 G

ABS 3828 18 G

Fibox
PC_3828_13_G

Sample image

Order symbol: ABS 3828 18 G

Product nbr: 5880373

Description: Enclosure. ABS

Remarks: Opaque cover

EAN: 6418074039095

El. number:

  • Finland: 3423769
  • Denmark:
  • Sweden: 2539723

Including: Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC_ABS3828
Dimensions: Height Width Depth
mm: 380 280 180
inch: 14.96 11.02 7.09
Materials:
Material: ABS
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 80
Temperature °C (continuous): -40 … 60
Temperature °F (short term): -40 … 175
Temperature °F (continuous): -40 … 140
Accessories:
EKV 32 DIN-35 Mounting rail. for enclosures:
(335 x 35 x 1)
EKV 22 DIN-35 Mounting rail. for enclosures:
(235 x 35 x 1)
EKPZR Extension frame. for enclosures:
(380 x 280 x 50)
EKPVT Back Panel. for enclosures:
(338 x 238 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating: UL 94 HB
Glow Wire Test (IEC 695-2-1) °C: 650 °C
NEMA Class
Certificates:
Certificate NCS FI 30308
