    Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

SOLID / SOLID 3819 / ABS 3819 13 G-2FSH

ABS 3819 13 G-2FSH 9880425

Dimensions 380 x 190 x 130

Dimensions 14.96 x 7.48 x 5.12

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

IP65; IK08

Product number : 9880425 Download product card

Technical data

Product:

Product nr : 9880425

Description : Enclosure, ABS

Remarks : Grey hinged cover

Package : 4

Unit : Piece

EAN : 6418074053442

SSTL number : 3435774

ETIM : EC000261

Dimensions :

Height (mm) : 380

Width (mm) : 190

Depth (mm) : 130

Height (inch) : 14.96

Width (inch) : 7.48

Depth (inch) : 5.12

Materials :

Material : ABS

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 60

Temperature °F : -40 … 140

Ratings :

Standards EN 62208:2003, IEC 62208:2003

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650C

Product is connected to following catalogues :

SOLID / SOLID 3819 / ABS 3819 13 G-2FSH

Dimensional Drawings

CAD Files

Please note, that we need you permission in order for you to view the CAD files.

Contact

Accessories

EKMZR

Extension frame, for enclosures:
(380 x 190 x 50)

EKV 12

DIN-35 Mounting rail, for enclosures:
(160 x 35 x 7)

EKV 32

DIN-35 Mounting rail, for enclosures:
(335 x 35 x 7)

EKMVT

Mounting plate, for enclosures:
(338 x 158 x 1.5)

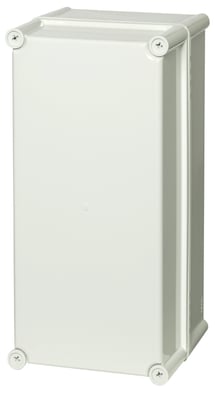

Sample image

Order symbol : ABS 3819 13 G-2FSH

Product nr : 9880425

Description : Enclosure, ABS

Remarks : Grey hinged cover

EAN : 6418074053442

El. number :

Finland : 3435774
