Description : Base, PC
Package : 8
Unit : Piece
EAN : 6418074000453
SSTL number : 3423737
Electric No. Denmark : 8212006726
Electric No. Sweden : 2507808
ETIM : EC002620
Height (mm) : 380
Width (mm) : 190
Depth (mm) : 100
Height (inch) : 14.96
Width (inch) : 7.48
Depth (inch) : 3.94
Material : Polycarbonate
Base colour : RAL_7035
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Electrical insulation : Totally insulated
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 60695): 960C
CAD Drawings
- 6530802_Fibox_Solid_3819_B.step
Please note, that we need you permission in order for you to view the CAD files.
PC 3819

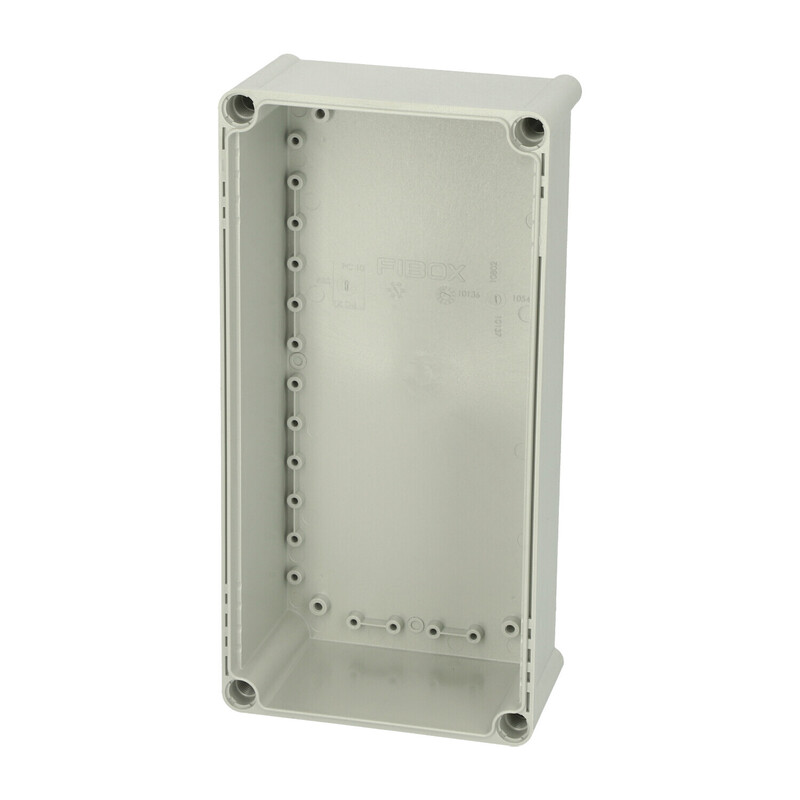

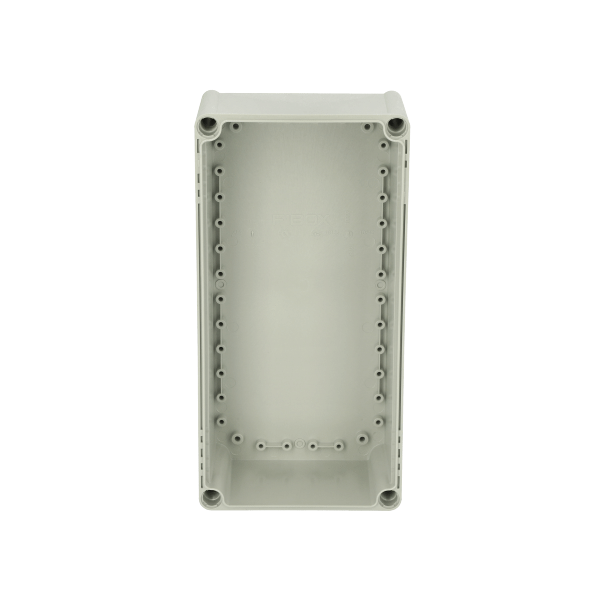

Sample image
Order symbol : PC 3819
Product nr : 6530802
Description : Base, PC
EAN : 6418074000453
El. number :
- Finland : 3423737
- Denmark : 8212006726
- Sweden : 2507808
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 380 | 190 | 100 |
| inch : | 14.96 | 7.48 | 3.94 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Ratings : | |
|---|---|
| electrical_insulation : | Totally insulated |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 5VA |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
