SOLID / SOLID 3819 / PC 3819 18 G

PC 3819 18 G 5330371

UL Code : 5320371

UL Name : UL PC 3819 18 G

Dimensions 380 x 190 x 180.

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC : IP66; IP67; IK08; EN 62208:2003. IEC 62208:2003

Product number : 5330371 Download product card

Technical data

Product:

Product nr: 5330371

Description: Enclosure. PC

Remarks: Opaque cover

Package: 4

Unit: Piece

EAN: 6418074005502

SSTL number: 3423711

Electric No. Denmark:

Electric No. Sweden: 2539416

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 380

Width (mm): 190

Depth (mm): 180

Height (inch) : 14.96

Width (inch) : 7.48

Depth (inch) : 7.09

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class :

Product is connected to following catalogs :

SOLID / SOLID 3819 / PC 3819 18 G

Dimensional Drawings

CAD Files

Contact

Accessories

EKMZR

Extension frame. for enclosures:
(380 x 190 x 50)

EKV 12

DIN-35 Mounting rail. for enclosures:
(160 x 35 x 1)

EKV 32

DIN-35 Mounting rail. for enclosures:
(335 x 35 x 1)

EKMVT

Back Panel. for enclosures:
(338 x 148 x 1)

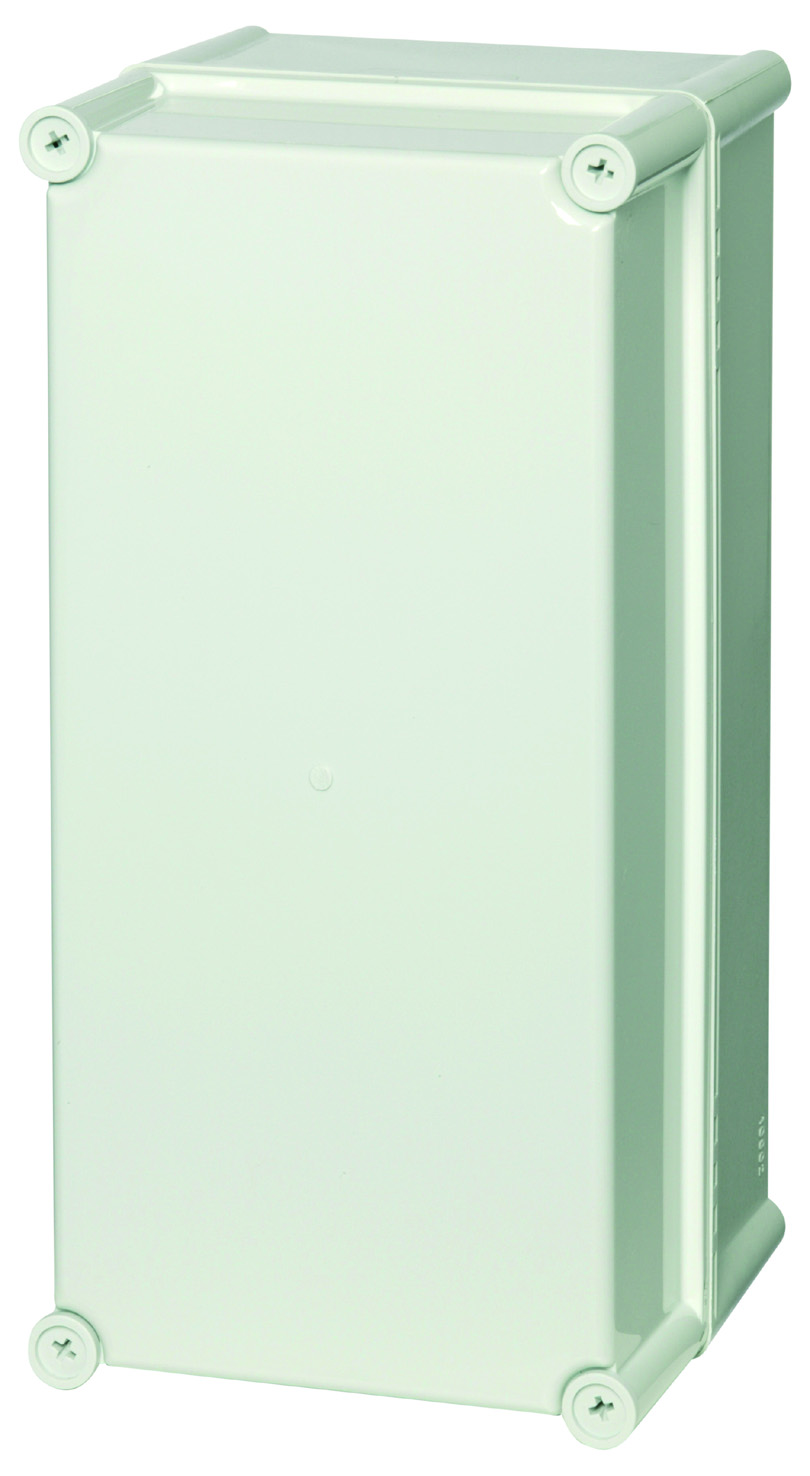

Sample image

Order symbol: PC 3819 18 G

Product nbr: 5330371

UL Code: 5320371

UL Name: UL PC 3819 18 G

Description: Enclosure. PC

Remarks: Opaque cover

EAN: 6418074005502

El. number:

Finland: 3423711
Denmark:
Sweden: 2539416

Including: Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

Dimensions:	Height	Width	Depth
mm:	380	190	180
inch:	14.96	7.48	7.09

Materials:
Material:	Polycarbonate
Base colour:	RAL 7035 -light grey
Cover colour:	RAL 7035 -light grey
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 120
Temperature °C (continuous):	-40 … 80
Temperature °F (short term):	-40 … 250
Temperature °F (continuous):	-40 … 175

Accessories:
EKMZR	Extension frame. for enclosures: (380 x 190 x 50)
EKV 12	DIN-35 Mounting rail. for enclosures: (160 x 35 x 1)
EKV 32	DIN-35 Mounting rail. for enclosures: (335 x 35 x 1)
EKMVT	Back Panel. for enclosures: (338 x 148 x 1)

Rating:
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK08;
Electrical insulation:	Totally insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	UL 508
Flammability Rating:	UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C:	960 °C
NEMA Class

Certificates:
Certificate NCS FI 30308
