SOLID / SOLID 2819 / ABS 2819 18 G
ABS 2819 18 G 5880370
Dimensions 280 x 190 x 180.
Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.
- PC : IP66; IP67; IK08; EN 62208:2003. IEC 62208:2003
Technical data
Product nr: 5880370
Description: Enclosure. ABS
Remarks: Opaque cover
Package: 4
Unit: Piece
EAN: 6418074039033
SSTL number: 3423757
Electric No. Denmark:
Electric No. Sweden: 2539711
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 280
Width (mm): 190
Depth (mm): 180
Height (inch) : 11.02
Width (inch) : 7.48
Depth (inch) : 7.09
Material: ABS
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 80
Temperature °C (continuous) : -40 … 60
Temperature °F (short term) : -40 … 175
Temperature °F (continuous) : -40 … 140
Ingress Protection (EN 60529) : IP66; IP67;
Impact Resistance (EN 62262) : IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695) : 650 °C
NEMA Class :
SOLID / SOLID 2819 / ABS 2819 18 G
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
ABS 2819 18 G

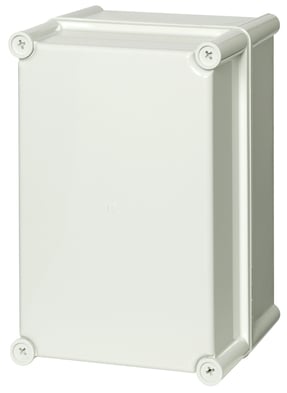

Sample image
Order symbol: ABS 2819 18 G
Product nbr: 5880370
Description: Enclosure. ABS
Remarks: Opaque cover
EAN: 6418074039033
El. number:
- Finland: 3423757
- Denmark:
- Sweden: 2539711
Including: Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

Dimensions: | Height | Width | Depth |
---|---|---|---|
mm: | 280 | 190 | 180 |
inch: | 11.02 | 7.48 | 7.09 |
Materials: | |
---|---|
Material: | ABS |
Base colour: | RAL 7035 -light grey |
Cover colour: | RAL 7035 -light grey |
Gasket material: | Polyurethane |
Temperatures: | |
---|---|
Temperature °C (short term):: | -40 … 80 |
Temperature °C (continuous): | -40 … 60 |
Temperature °F (short term): | -40 … 175 |
Temperature °F (continuous): | -40 … 140 |
Accessories: | |
---|---|
EKV 12 | DIN-35 Mounting rail. for enclosures: (160 x 35 x 1) |
EKJVT | Back Panel. for enclosures: (238 x 148 x 1) |
EKV 22 | DIN-35 Mounting rail. for enclosures: (235 x 35 x 1) |
EKJZR | Extension frame. for enclosures: (280 x 190 x 50) |
Rating: | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK08; |
Electrical insulation: | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815): | 1 |
UV resistance: | - |
Flammability Rating: | UL 94 HB |
Glow Wire Test (IEC 695-2-1) °C: | 650 °C |
NEMA Class |
Certificates: | |
---|---|
Certificate NCS FI 30308 |
