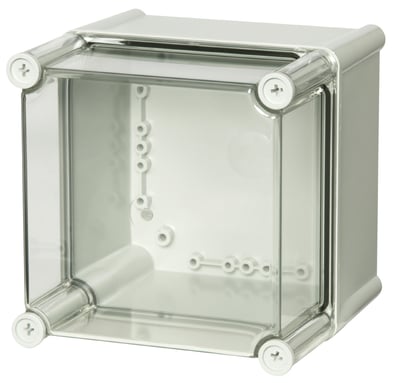

PC 1919 13 T-2FSH product image 1
Next slide
PC 1919 13 T-2FSH thumbnail image 1

SOLID / SOLID 1919 / PC 1919 13 T-2FSH

PC 1919 13 T-2FSH 2539535

Dimensions 190 x 190 x 130

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

  • PC : IP65; IK08
Technical data
Product:

Product nr : 2539535

Description : Enclosure, PC

Remarks : Transparent hinged cover

Package : 4

Unit : Piece

EAN : 6418074052827

SSTL number : 3435746

Electric No. Denmark : 8212051519

Electric No. Sweden : 2539535

ETIM : EC000261

Dimensions :

Height (mm) : 190

Width (mm) : 190

Depth (mm) : 130

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2003, IEC 62208:2003

Ingress Protection (EN 60529): IP65

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

SOLID / SOLID 1919 / PC 1919 13 T-2FSH

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

PC 1919 13 T-2FSH

Fibox
2539535_PC_1919_13_T-2FSH_ENCL_1_72dpi

Sample image

Order symbol : PC 1919 13 T-2FSH

Product nr : 2539535

Description : Enclosure, PC

Remarks : Transparent hinged cover

EAN : 6418074052827

El. number :

  • Finland : 3435746
  • Denmark : 8212051519
  • Sweden : 2539535

Including : Base with screws for mounting plate. cover with PUR gasket and polyamide cover screws.

PC_ABS1919
Dimensions : Height Width Depth
mm : 190 190 130
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
EKHVT Mounting plate, for enclosures:
(148 x 148 x 1)
EKV 12 DIN-35 Mounting rail, for enclosures:
(160 x 35 x 7)
MPI EKH 1919 Multiperforated plastic mounting plate
(167 x 167 x 4)
Ratings :
Ingress protection (EN 60529): IP65;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
DSS_FI_41597_A1
