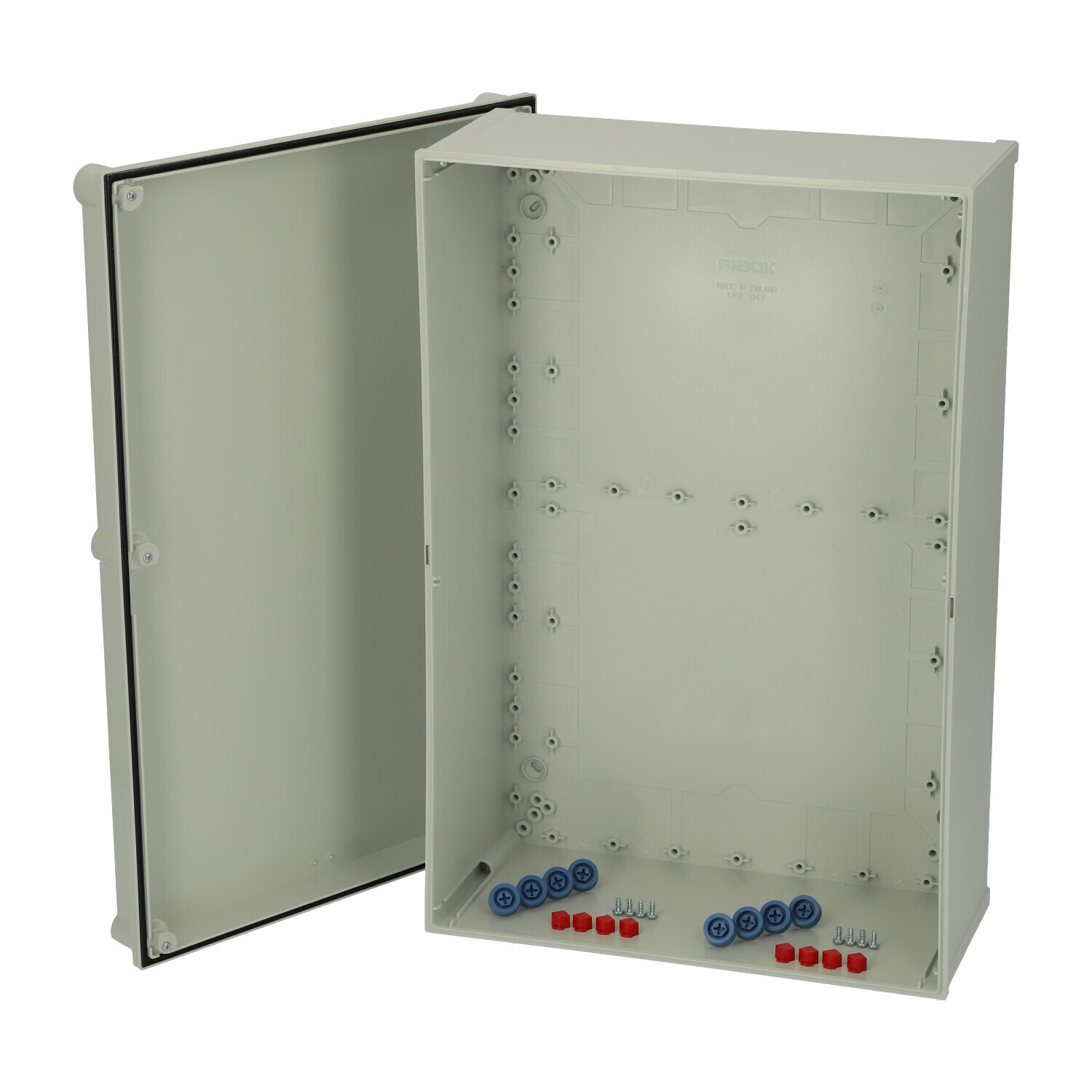

    Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

Previous slide

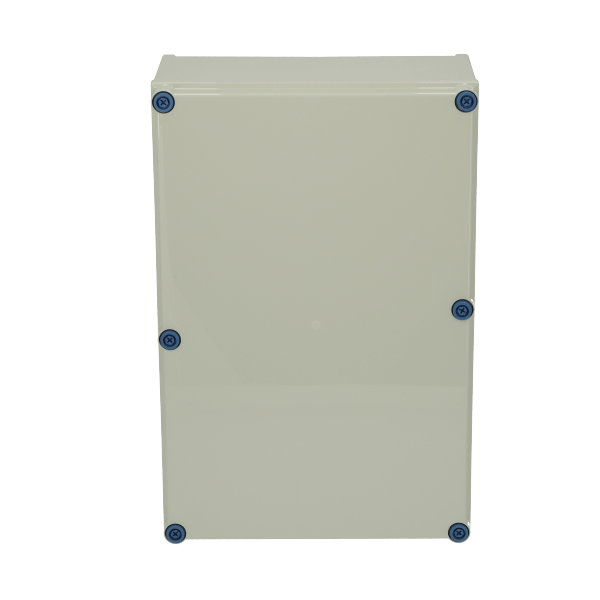

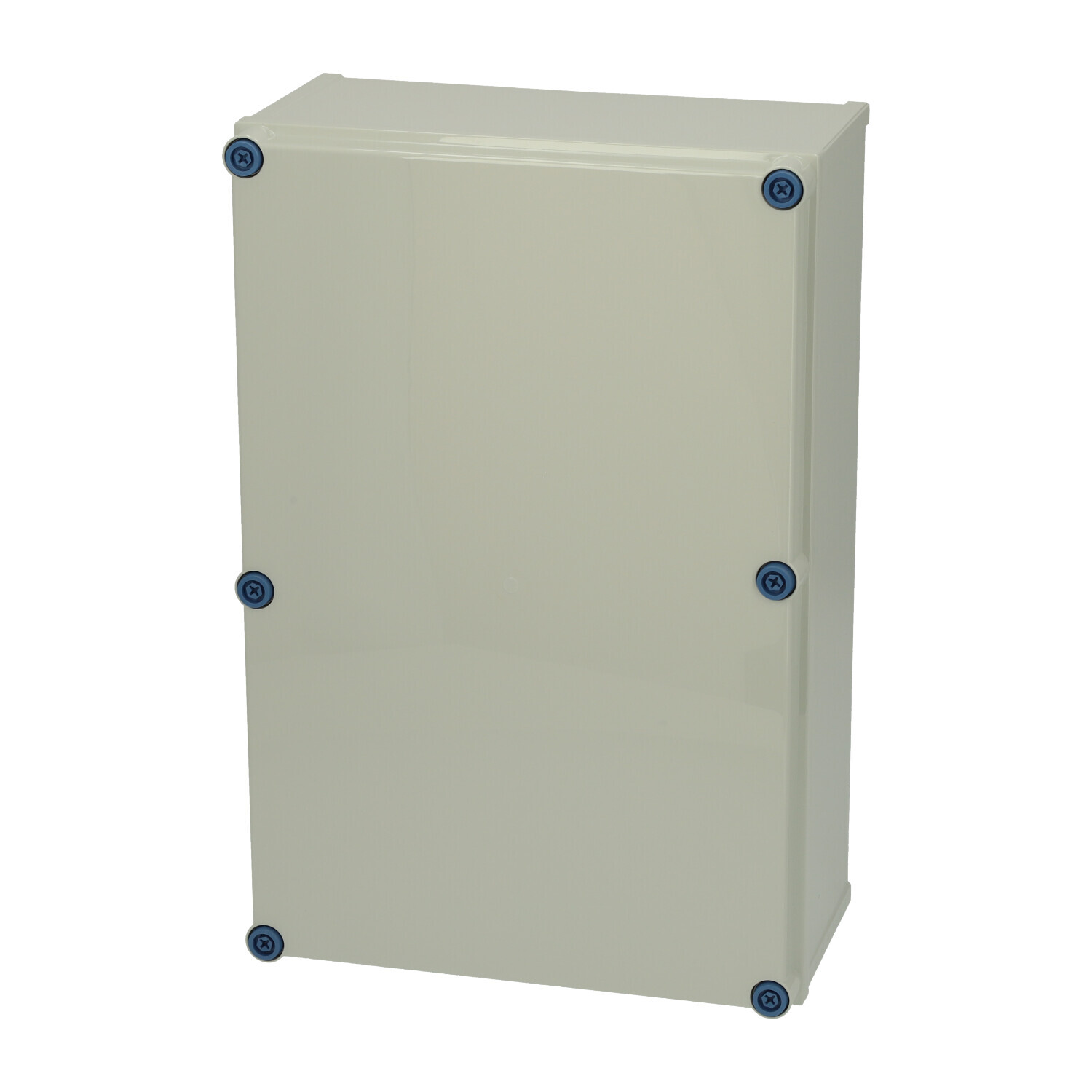

CAB PCQ 604021 G product image 1
CAB PCQ 604021 G product image 4
CAB PCQ 604021 G product image 1
Next slide
CAB PCQ 604021 G thumbnail image 1
CAB PCQ 604021 G thumbnail image 4
CAB PCQ 604021 G thumbnail image 1

Quick / QUICK 64 / CAB PCQ 604021 G

CAB PCQ 604021 G 8113378

Dimensions 600 x 400 x 210

Dimensions 23.62 x 15.75 x 8.27

Including : Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

  • PC : IP66; IP67; IK08
Technical data
Product:

Product nr : 8113378

Description : Cabinet, PC

Remarks : Grey cover

Package : 1

Unit : Piece

EAN : 6418074011190

SSTL number : 3421976

Electric No. Denmark : 8212054309

Electric No. Sweden : 2540103

ETIM : EC000261

Dimensions :

Height (mm) : 600

Width (mm) : 400

Depth (mm) : 210

Height (inch) : 23.62

Width (inch) : 15.75

Depth (inch) : 8.27

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN_62208:2011__IEC_62208:2011, EN_61439-3:2012__IEC_61439-3:2012, EN_61439-4:2013__IEC_61439-4:2012

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

Quick / QUICK 64 / CAB PCQ 604021 G

CAB PCQ 604021 G

Fibox
8113378_CAB_PCQ_604021_G_cabinet_1_72dpi

Sample image

Order symbol : CAB PCQ 604021 G

Product nr : 8113378

Description : Cabinet, PC

Remarks : Grey cover

EAN : 6418074011190

El. number :

  • Finland : 3421976
  • Denmark : 8212054309
  • Sweden : 2540103

Including : Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

EKI64Q
Dimensions : Height Width Depth
mm : 600 400 210
inch : 23.62 15.75 8.27
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
EKIV 64H Mounting plate, for enclosures:
(570 x 370 x 1)
PAT 12040 Hinge set
MB 12225 AL Swing door set
EKIV 37 DIN-35 Mounting rail, for enclosures:
(366 x 35 x 1)
DRF 63/64 DIN rail frame set, for enclosures:
FP A 64 Swing-out door/Front plate (aluminium), for enclosures:
(568 x 368 x 1)
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
Certificate FI 40848
