CAB ABSQ 404017 T 8183188
Dimensions 400 x 400 x 170.
Including : Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.
- PC : IP66; IP67; IK08;
Technical data
Product nr: 8183188
Description: Cabinet. ABS
Remarks: Smoked transparent cover
Package: 1
Unit: Piece
EAN: 6418074011251
SSTL number: 3421725
Electric No. Denmark:
Electric No. Sweden:
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 400
Width (mm): 400
Depth (mm): 170
Height (inch) : 15.75
Width (inch) : 15.75
Depth (inch) : 6.69
Material: ABS
Base colour : RAL 7035 -light grey
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 80
Temperature °C (continuous) : -40 … 60
Temperature °F (short term) : -40 … 175
Temperature °F (continuous) : -40 … 140
Ingress Protection (EN 60529) : IP66; IP67;
Impact Resistance (EN 62262) : IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695) : 650 °C
NEMA Class :
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
CAB ABSQ 404017 T

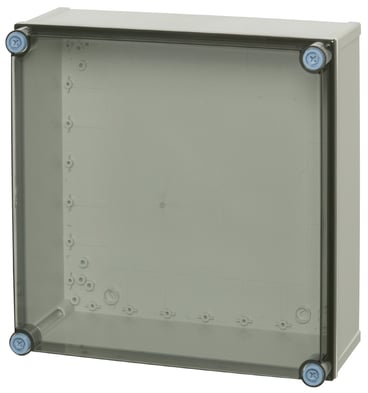

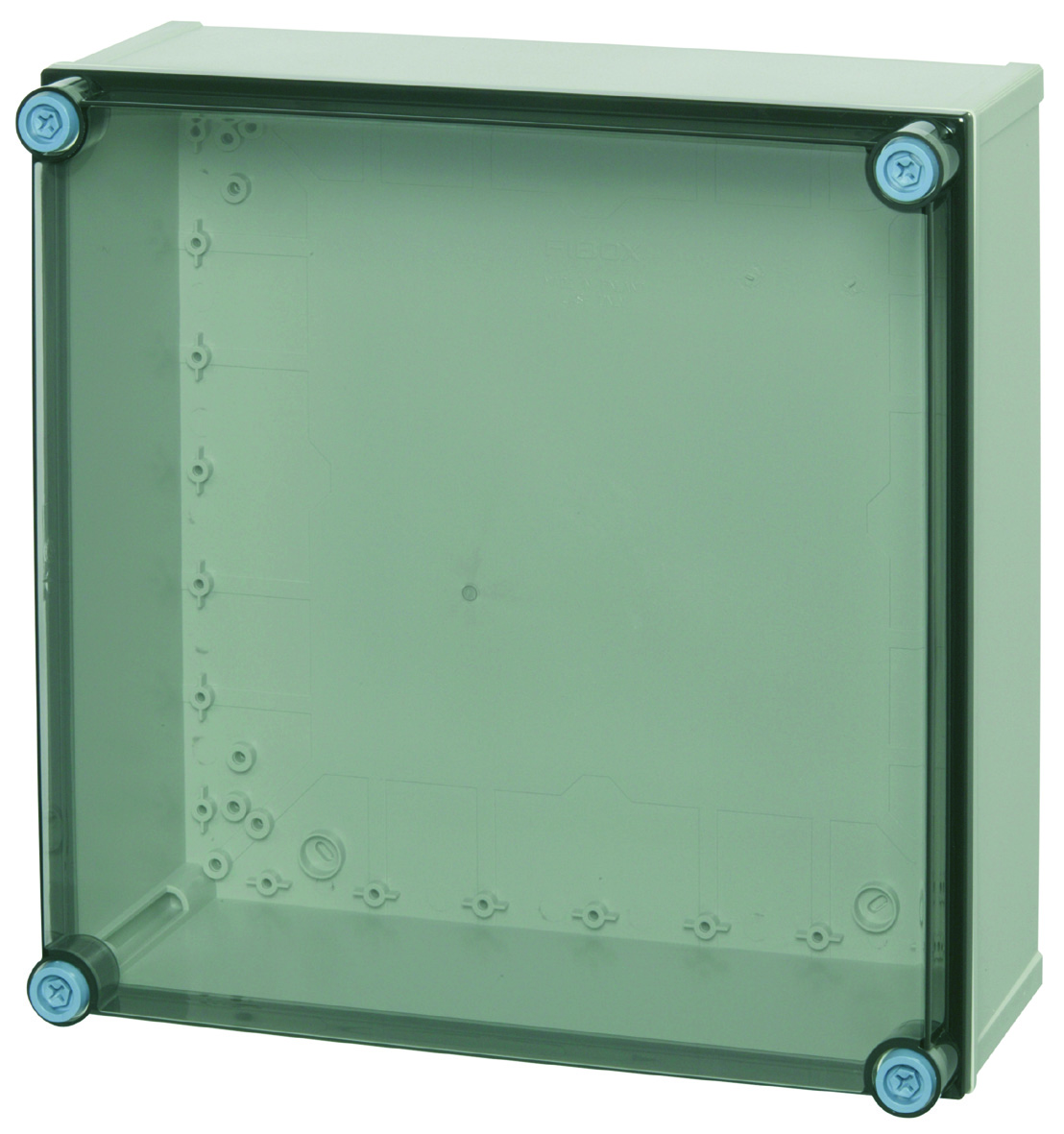

Sample image
Order symbol: CAB ABSQ 404017 T
Product nbr: 8183188
Description: Cabinet. ABS
Remarks: Smoked transparent cover
EAN: 6418074011251
El. number:
- Finland: 3421725
- Denmark:
- Sweden:
Including: Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.
| Dimensions: | Height | Width | Depth |
|---|---|---|---|
| mm: | 400 | 400 | 170 |
| inch: | 15.75 | 15.75 | 6.69 |
| Materials: | |
|---|---|
| Material: | ABS |
| Base colour: | RAL 7035 -light grey |
| Cover colour: | Clear transparent |
| Gasket material: | Polyurethane |
| Temperatures: | |
|---|---|
| Temperature °C (short term):: | -40 … 80 |
| Temperature °C (continuous): | -40 … 60 |
| Temperature °F (short term): | -40 … 175 |
| Temperature °F (continuous): | -40 … 140 |
| Accessories: | |
|---|---|
| DRF 43/44 | DIN rail frame kit. for enclosures: |
| PAT 12040 | Hinge kit |
| MB 12225 AL | Swing door kit |
| EKIV 37 | DIN-35 Mounting rail. for enclosures: (366 x 35 x 1) |
| FP A 44 | Swing-out door/Front panel (aluminum). for enclosures: (368 x 368 x 1) |
| EKIV 44 | Back Panel. for enclosures: (370 x 370 x 1) |
| Rating: | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK08; |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | 1 |
| UV resistance: | - |
| Flammability Rating: | UL 94 HB |
| Glow Wire Test (IEC 695-2-1) °C: | 650 °C |
| NEMA Class | |
| Certificates: | |
|---|---|
| Certificate FI 40848 | |
