Quick / QUICK 44 / CAB PCQ 404017 T

CAB PCQ 404017 T 8113088

UL Code : 8143088

UL Name : UL CAB PCQ 404017 T

Dimensions 400 x 400 x 170.

Including : Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012

Product number : 8113088 Download product card

Technical data

Product:

Product nr: 8113088

Description: Enclosure. PC

Remarks: Smoked transparent cover

Package: 1

Unit: Piece

EAN: 6418074011114

SSTL number: 3421928

Electric No. Denmark:

Electric No. Sweden: 2540107

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 400

Width (mm): 400

Depth (mm): 170

Height (inch) :

Width (inch) :

Depth (inch) :

Materials :

Material: Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695) : 960 °C

NEMA Class :

Product is connected to following catalogs :

Quick / QUICK 44 / CAB PCQ 404017 T

Dimensional Drawings

CAD Files

Contact

Accessories

DRF 43/44

DIN rail frame kit. for enclosures:

PAT 12040

Hinge kit

MB 12225 AL

Swing door kit

EKIV 37

DIN-35 Mounting rail. for enclosures:
(366 x 35 x 1)

FP A 44

Swing-out door/Front panel (aluminum). for enclosures:
(368 x 368 x 1)

EKIV 44

Back Panel. for enclosures:
(370 x 370 x 1)

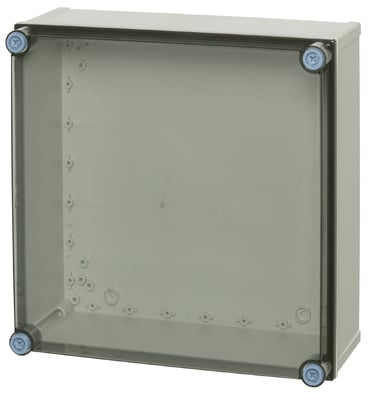

Sample image

Order symbol: CAB PCQ 404017 T

Product nbr: 8113088

UL Code: 8143088

UL Name: UL CAB PCQ 404017 T

Description: Enclosure. PC

Remarks: Smoked transparent cover

EAN: 6418074011114

El. number:

Finland: 3421928
Denmark:
Sweden: 2540107

Including: Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

Dimensions:	Height	Width	Depth
mm:	400	400	170
inch:

Materials:
Material:	Polycarbonate
Base colour:	RAL 7035 -light grey
Cover colour:	Clear transparent
Gasket material:	Polyurethane

Temperatures:
Temperature °C (short term)::	-40 … 120
Temperature °C (continuous):	-40 … 80
Temperature °F (short term):	-40 … 250
Temperature °F (continuous):	-40 … 175

Accessories:
DRF 43/44	DIN rail frame kit. for enclosures:
PAT 12040	Hinge kit
MB 12225 AL	Swing door kit
EKIV 37	DIN-35 Mounting rail. for enclosures: (366 x 35 x 1)
FP A 44	Swing-out door/Front panel (aluminum). for enclosures: (368 x 368 x 1)
EKIV 44	Back Panel. for enclosures: (370 x 370 x 1)

Rating:
Ingress protection (EN 60529):	IP66; IP67;
Impact Resistance (EN 62262):	IK08;
Electrical insulation:	Totally insulated
Halogen free (DIN/VDE 0472, Part 815):	1
UV resistance:	UL 508
Flammability Rating:	UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C:	960 °C
NEMA Class

Certificates:
Certificate FI 40848
