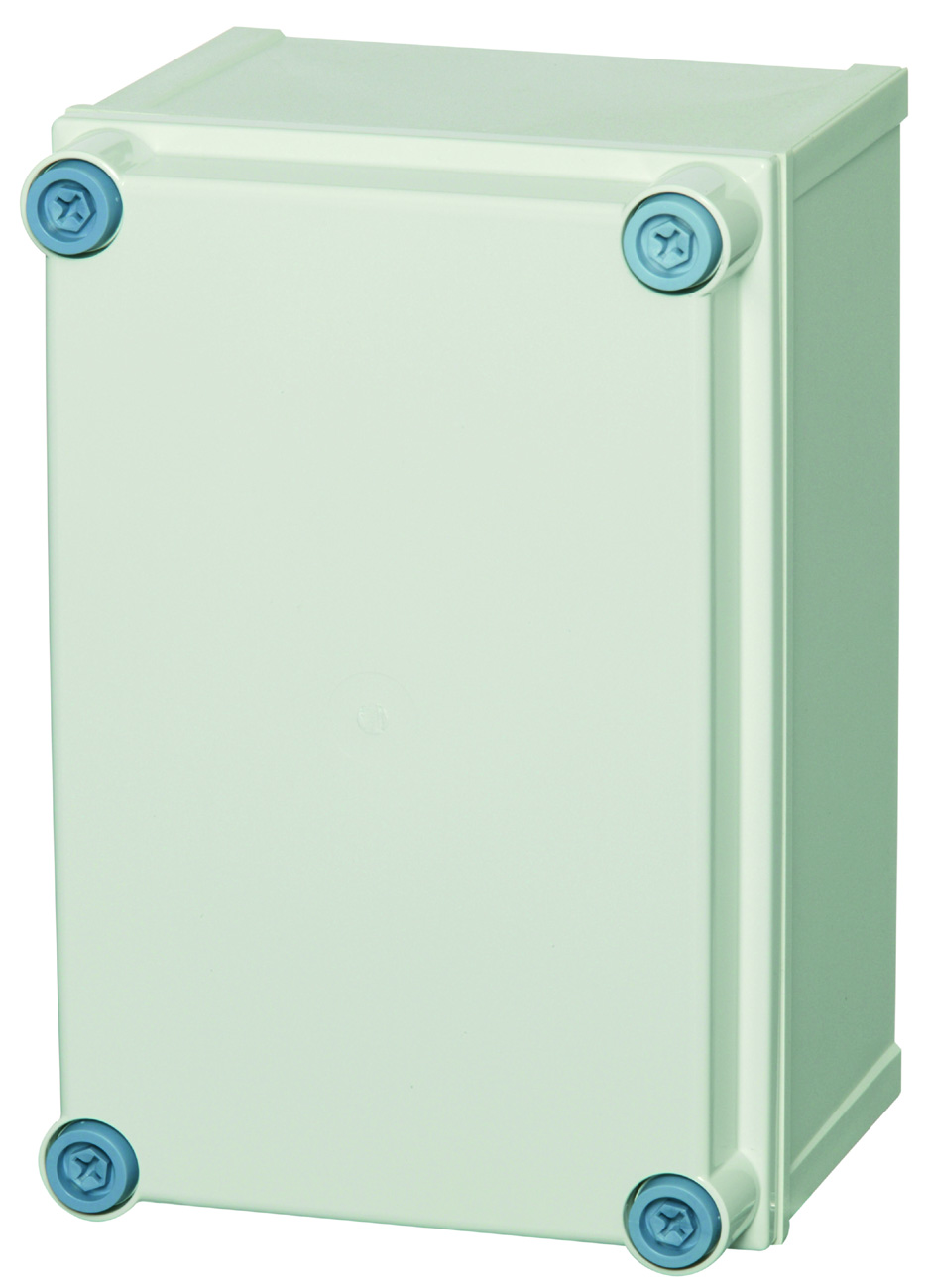

CAB_PCQ_302017_G
Next slide
CAB_PCQ_302017_G

Quick / QUICK 32 / CAB ABSQ 302017 G

CAB ABSQ 302017 G 8183338

Dimensions 300 x 200 x 170.

Including : Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

  • PC : IP66; IP67; IK08;
Technical data
Product:

Product nr : 8183338

Description : Cabinet, ABS

Remarks : Grey cover

Package : 4

Unit : Piece

EAN : 6418074011282

SSTL number : 3424302

Electric No. Denmark :

Electric No. Sweden :

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 300

Width (mm) : 200

Depth (mm) : 170

Height (inch) :

Width (inch) :

Depth (inch) :

Materials :

Material : ABS

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 80

Temperature °C (continuous) : -40 … 60

Temperature °F (short term) : -40 … 175

Temperature °F (continuous) : -40 … 140

Ratings :

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650 °C

NEMA Class :

Product is connected to following catalogues :

Quick / QUICK 32 / CAB ABSQ 302017 G

CAB ABSQ 302017 G

Fibox
CAB_PCQ_302017_G

Sample image

Order symbol : CAB ABSQ 302017 G

Product nr : 8183338

Description : Cabinet, ABS

Remarks : Grey cover

EAN : 6418074011282

El. number :

  • Finland : 3424302
  • Denmark :
  • Sweden :

Including : Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

EKI23Q
Dimensions : Height Width Depth
mm : 300 200 170
inch :
Materials :
Material : ABS
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 80
Temperature °C (continuous) : -40 … 60
Temperature °F (short term) : -40 … 175
Temperature °F (continuous) : -40 … 140
Accessories :
PAT 12040 Hinge set
MB 12225 AL Swing door set
EKIV 27 DIN-35 Mounting rail, for enclosures:
(266 x 35 x 1)
DRF 23 DIN rail frame set, for enclosures:
FP A 23 Swing-out door/Front plate (aluminium), for enclosures:
(168 x 268 x 1)
EKIV 17 DIN-35 Mounting rail, for enclosures:
(166 x 35 x 1)
EKIV 23 Mounting plate, for enclosures:
(170 x 270 x 1)
DRF 33 DIN rail frame set, for enclosures:
Rating :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : 650 °C
NEMA Class
Certificates :
Certificate FI 40848
