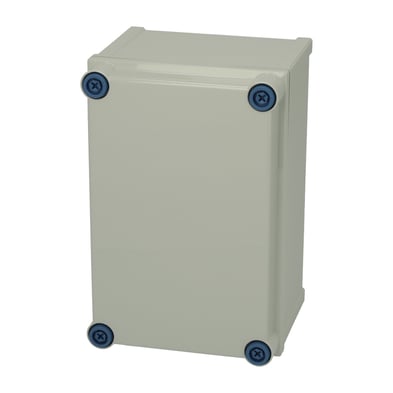

Quick / QUICK 32 / CAB PCQ 302017 G

CAB PCQ 302017 G 8113338

UL Code: 8143038

UL Name: UL CAB PCQ 302017 G

Dimensions 200 x 300 x 170.

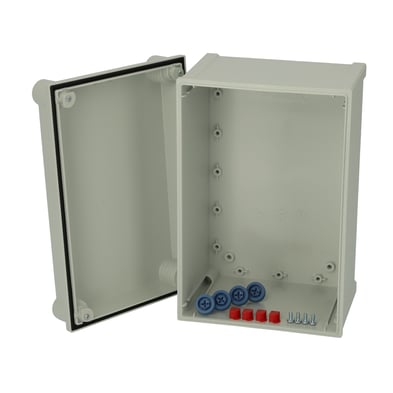

Including: Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

  • PC: IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-3:2012. IEC 61439-3:2012,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 8113338

Description: Enclosure. PC

Remarks: Opaque cover

Package: 4

Unit: Piece

EAN: 6418074011145

SSTL number: 3421970

Electric No. Denmark:

Electric No. Sweden: 2539106

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 200

Width (mm): 300

Depth (mm): 170

Height (inch): 7.87

Width (inch): 11.81

Depth (inch): 6.69

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

Quick / QUICK 32 / CAB PCQ 302017 G

CAD files
Catalogues
Contact

CAB PCQ 302017 G

Fibox
CAB_PCQ_302017_G

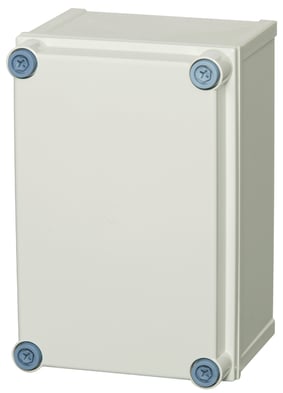

Sample image

Order symbol: CAB PCQ 302017 G

Product nbr: 8113338

UL Code: 8143038

UL Name: UL CAB PCQ 302017 G

Description: Enclosure. PC

Remarks: Opaque cover

EAN: 6418074011145

El. number:

  • Finland: 3421970
  • Denmark:
  • Sweden: 2539106

Including: Base with screws for mounting plate/DIN-rail. internal corner plugs. cover with PUR gasket and CS 12137 cover screws.

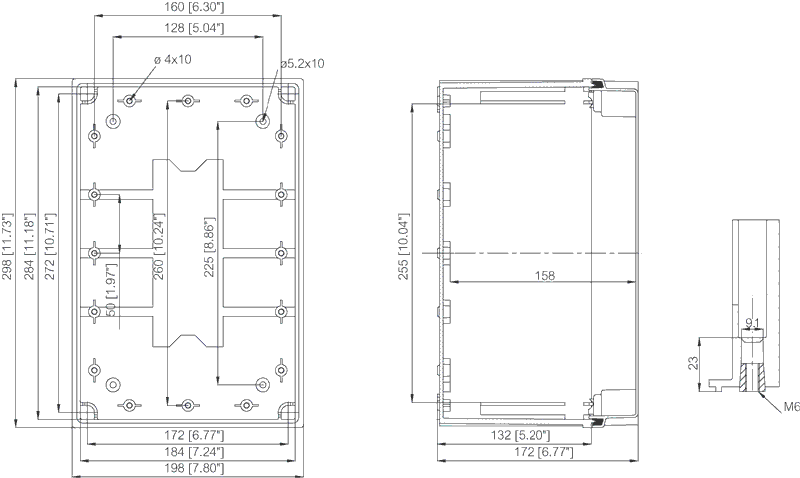

EKI23Q
Dimensions: Height Width Depth
mm: 200 300 170
inch: 7.87 11.81 6.69
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
PAT 12040 Hinge kit
MB 12225 AL Swing door kit
EKIV 27 DIN-35 Mounting rail. for enclosures:
(266 x 35 x 1)
DRF 23 DIN rail frame kit. for enclosures:
FP A 23 Swing-out door/Front panel (aluminum). for enclosures:
(168 x 268 x 1)
EKIV 17 DIN-35 Mounting rail. for enclosures:
(166 x 35 x 1)
EKIV 23 Back Panel. for enclosures:
(170 x 270 x 1)
DRF 33 DIN rail frame kit. for enclosures:
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40848
