PC MH 125 G 8724319
UL Code : 8714319
UL Name : UL PC MH 125 G
Dimensions 230 x 140 x 125.
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.
- PC : IP66; IP67; IK08;
Technical data
Product nr: 8724319
Description: Enclosure. PC
Remarks: Opaque cover
Package: 4
Unit: Piece
EAN: 6418074054586
SSTL number: 3423420
Electric No. Denmark: 8212001747
Electric No. Sweden: 2536831
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 230
Width (mm): 140
Depth (mm): 125
Height (inch) : 9.06
Width (inch) : 5.51
Depth (inch) : 4.92
Material: Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) :
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529) : IP66; IP67;
Impact Resistance (EN 62262) : IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695) : 960 °C
NEMA Class :
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
PC MH 125 G

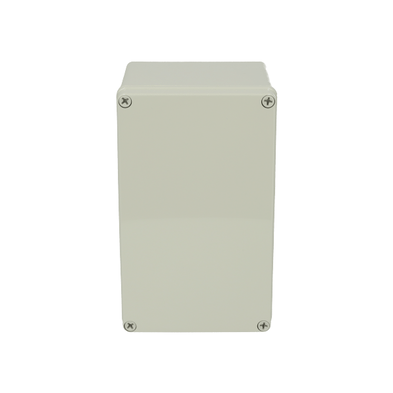

Sample image
Order symbol: PC MH 125 G
Product nbr: 8724319
UL Code: 8714319
UL Name: UL PC MH 125 G
Description: Enclosure. PC
Remarks: Opaque cover
EAN: 6418074054586
El. number:
- Finland: 3423420
- Denmark: 8212001747
- Sweden: 2536831
Including: Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.
| Dimensions: | Height | Width | Depth |
|---|---|---|---|
| mm: | 230 | 140 | 125 |
| inch: | 9.06 | 5.51 | 4.92 |
| Materials: | |
|---|---|
| Material: | Polycarbonate |
| Base colour: | RAL 7035 -light grey |
| Cover colour: | RAL 7035 -light grey |
| Gasket material: | Polyurethane |
| Temperatures: | |
|---|---|
| Temperature °C (short term):: | -40 … 120 |
| Temperature °C (continuous): | |
| Temperature °F (short term): | -40 … 250 |
| Temperature °F (continuous): | -40 … 175 |
| Accessories: | |
|---|---|
| CHM-3 | DIN-35 Mounting rail. for enclosures: (110 x 35 x 1) |
| FM-3 | DIN-35 Mounting rail. for enclosures: (35 x 200 x 1) |
| FP 22046 | Mounting foot kit (4 pcs) |
| M-MP | Back Panel. for enclosures: (185 x 94 x 1) |
| Rating: | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK08; |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | 1 |
| UV resistance: | UL 508 |
| Flammability Rating: | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C: | 960 °C |
| NEMA Class | |
| Certificates: | |
|---|---|
| SGSFIMKO_PICC_pc | |
