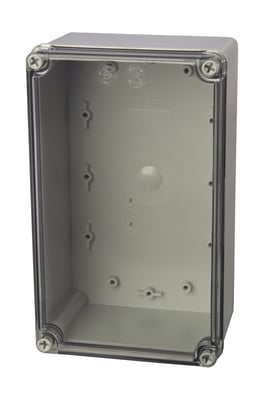

PC M 95 T 8724018
UL Code : 8714018
UL Name : UL PC M 95 T
Dimensions 230 x 140 x 95
Dimensions 9.06 x 5.51 x 3.74
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.
- PC : IP66; IP67; IK08
Technical data
Product nr : 8724018
Description : Enclosure, PC
Remarks : Transparent cover
Package : 4
Unit : Piece
EAN : 6418074002303
SSTL number : 3423519
Electric No. Denmark : 8212001776
Electric No. Sweden : 2536859
ETIM : EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm) : 230
Width (mm) : 140
Depth (mm) : 95
Height (inch) : 9.06
Width (inch) : 5.51
Depth (inch) : 3.74
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 120
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK08
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 60695): 960 °C
/ /
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
PC M 95 T

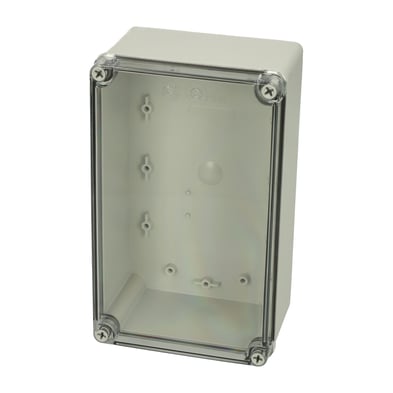

Sample image
Order symbol : PC M 95 T
Product nr : 8724018
UL Code : 8714018
UL Name : UL PC M 95 T
Description : Enclosure, PC
Remarks : Transparent cover
EAN : 6418074002303
El. number :
- Finland : 3423519
- Denmark : 8212001776
- Sweden : 2536859
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 230 | 140 | 95 |
| inch : | 9.06 | 5.51 | 3.74 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL 7035 -light grey |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (short term) : | -40 … 120 |
| Temperature °F (short term) : | -40 … 250 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| CHM-3 |
DIN-35 Mounting rail, for enclosures:
(110 x 35 x 1) |
| FM-3 |
DIN-35 Mounting rail, for enclosures:
(35 x 200 x 1) |
| FP 22046 | Wall fastening lug (4 pcs) |
| M-MP |
Mounting plate, for enclosures:
(185 x 94 x 1) |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK08; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 508 |
| Flammability Rating : | UL 746C 5" |
| Glow Wire Test (IEC 695-2-1) °C : | 960 °C |
| Certificates : | |
|---|---|
| SGSFIMKO_PICC_pc | |
