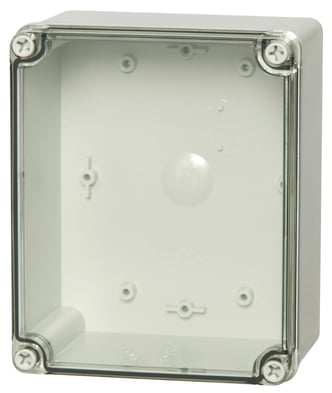

PC_H_95_T
Next slide
PC_H_95_T

Piccolo / PICCOLO H / ABS H 95 T

ABS H 95 T 8784015

Dimensions 170 x 140 x 95.

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

  • PC : IP66; IP67; IK08;
Technical data
Product:

Product nr : 8784015

Description : Enclosure, ABS

Remarks : Transparent cover

Package : 4

Unit : Piece

EAN : 6418074002280

SSTL number : 3423567

Electric No. Denmark : 8212001983

Electric No. Sweden : 2536756

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 170

Width (mm) : 140

Depth (mm) : 95

Height (inch) : 6.69

Width (inch) : 5.51

Depth (inch) : 3.74

Materials :

Material : ABS

Base colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 80

Temperature °C (continuous) :

Temperature °F (short term) : -40 … 175

Temperature °F (continuous) : -40 … 140

Ratings :

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695): 650 °C

NEMA Class :

Product is connected to following catalogues :

Piccolo / PICCOLO H / ABS H 95 T

ABS H 95 T

Fibox

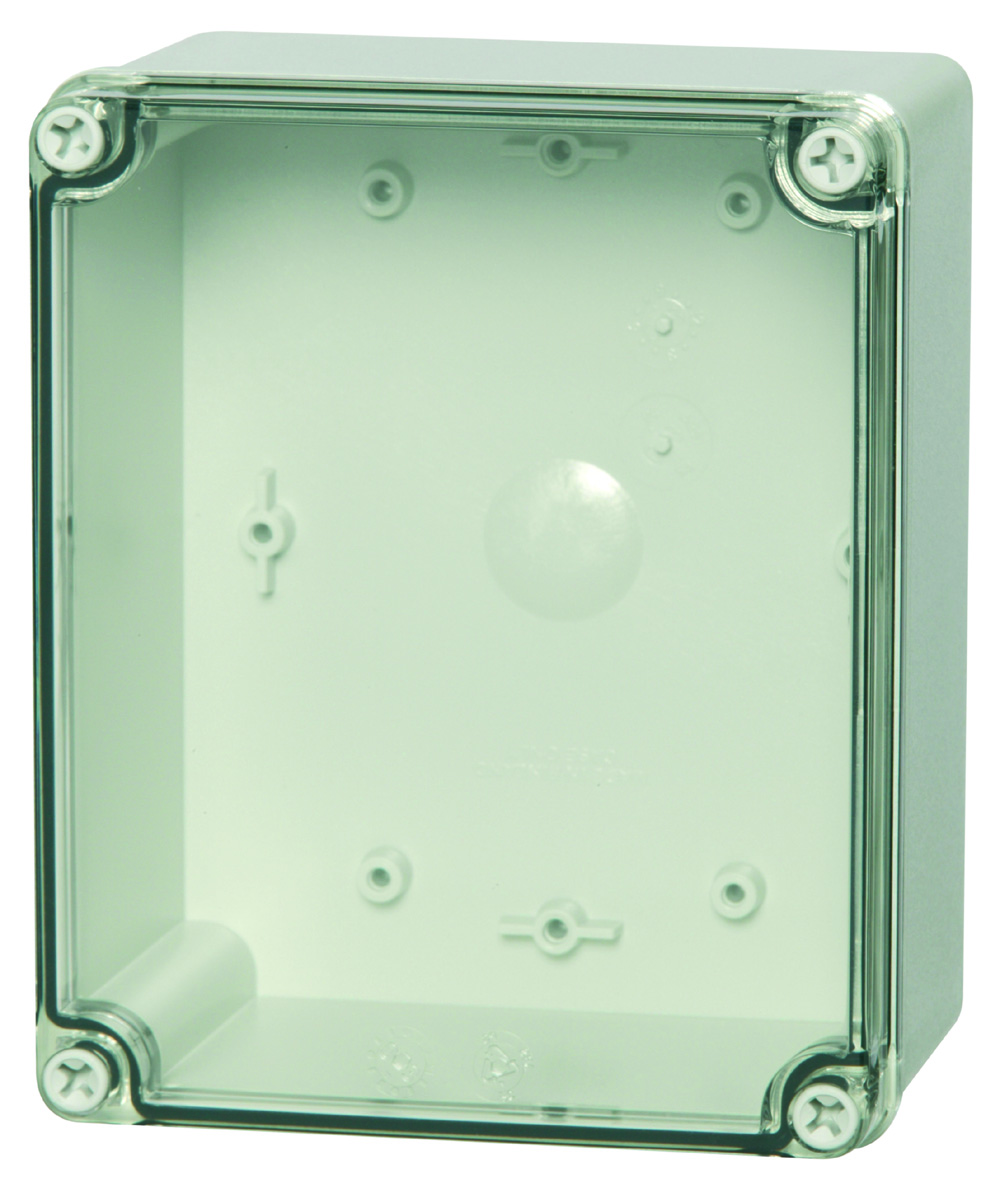

PC_H_95_T

Sample image

Order symbol : ABS H 95 T

Product nr : 8784015

Description : Enclosure, ABS

Remarks : Transparent cover

EAN : 6418074002280

El. number :

  • Finland : 3423567
  • Denmark : 8212001983
  • Sweden : 2536756

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and polyamide cover screws.

PICHDIM
Dimensions : Height Width Depth
mm : 170 140 95
inch : 6.69 5.51 3.74
Materials :
Material : ABS
Base colour : RAL 7035 -light grey
Cover colour :
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 80
Temperature °C (continuous) :
Temperature °F (short term) : -40 … 175
Temperature °F (continuous) : -40 … 140
Accessories :
CHM-3 DIN-35 Mounting rail, for enclosures:
(110 x 35 x 1)
FP 22046 Wall fastening lug (4 pcs)
DH-3 DIN-35 Mounting rail, for enclosures:
(140 x 35 x 1)
H-MP Mounting plate, for enclosures:
(125 x 94 x 1)
Rating :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 695-2-1) °C : 650 °C
NEMA Class
Certificates :
SGSFIMKO_PICC_pc
