NEO / NEO 423215 / NEO ABS 423215 G

NEO ABS 423215 G 4812002

Dimensions 420 x 320 x 150.

Including : ABS base and cover, mounting screws for mountingplate/DIN rail.

  • PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011,EN 61439-1:2011. IEC 61439-1:2011,EN 61439-4:2013. IEC 61439-4:2012
Technical data
Product:

Product nr: 4812002

Description: Hinged ABS enclosure with grey cover

Remarks:

Package: 1

Unit: Piece

EAN: 6418074311450

SSTL number: 3424419

Electric No. Denmark: 8212098103

Electric No. Sweden: 2506223

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm): 420

Width (mm): 320

Depth (mm): 150

Height (inch) : 16.54

Width (inch) : 12.6

Depth (inch) : 5.91

Materials :

Material: ABS

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures:

Temperature °C (short term) : -40 … 80

Temperature °C (continuous) : -40 … 60

Temperature °F (short term) : -40 … 175

Temperature °F (continuous) : -40 … 140

Ratings :

Ingress Protection (EN 60529) : IP66; IP67;

Impact Resistance (EN 62262) : IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : -

Flammability Rating : UL 94 HB

Glow Wire Test (IEC 60695) : 650 °C

NEMA Class :

Product is connected to following catalogs :

NEO / NEO 423215 / NEO ABS 423215 G

NEO ABS 423215 G

Fibox

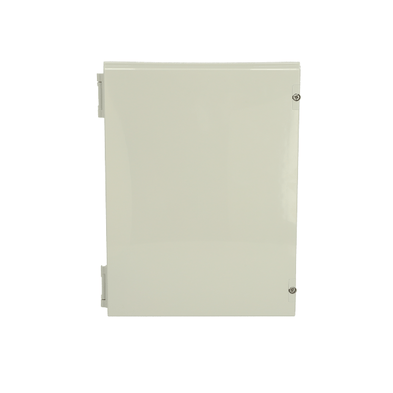

Sample image

Order symbol: NEO ABS 423215 G

Product nbr: 4812002

Description: Hinged ABS enclosure with grey cover

Remarks:

EAN: 6418074311450

El. number:

  • Finland: 3424419
  • Denmark: 8212098103
  • Sweden: 2506223

Including: ABS base and cover, mounting screws for mountingplate/DIN rail.

FIBOX NEO 423215 DIM.jpg
Dimensions: Height Width Depth
mm: 420 320 150
inch: 16.54 12.6 5.91
Materials:
Material: ABS
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 80
Temperature °C (continuous): -40 … 60
Temperature °F (short term): -40 … 175
Temperature °F (continuous): -40 … 140
Accessories:
NEO MPI 4232 Multiperforated plastic mounting plate
(375 x 265 x 3)
NEO MPS 4232 Metal mounting plate
(375 x 265 x 1.5)
PMK NEO 30 Pole mounting kit
(400 x 300 x 30)
WMK NEO plastic Wall mounting kit plastic
(80 x 70 x 40)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating: UL 94 HB
Glow Wire Test (IEC 695-2-1) °C: 650 °C
NEMA Class
Certificates:
Certificate FI 40693 A1.pdf
