NEO PC 323215 T 4811001
UL Code : -
Dimensions 320 x 320 x 150
Dimensions 12.6 x 12.6 x 5.91
Including : Polycarbonate base and cover, mounting screws for mountingplate/DIN rail.
- PC : IP66; IP67; IK09
Technical data
Product nr : 4811001

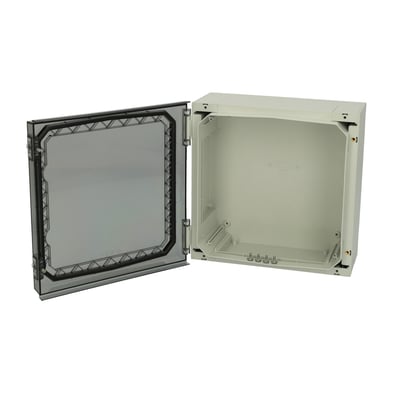

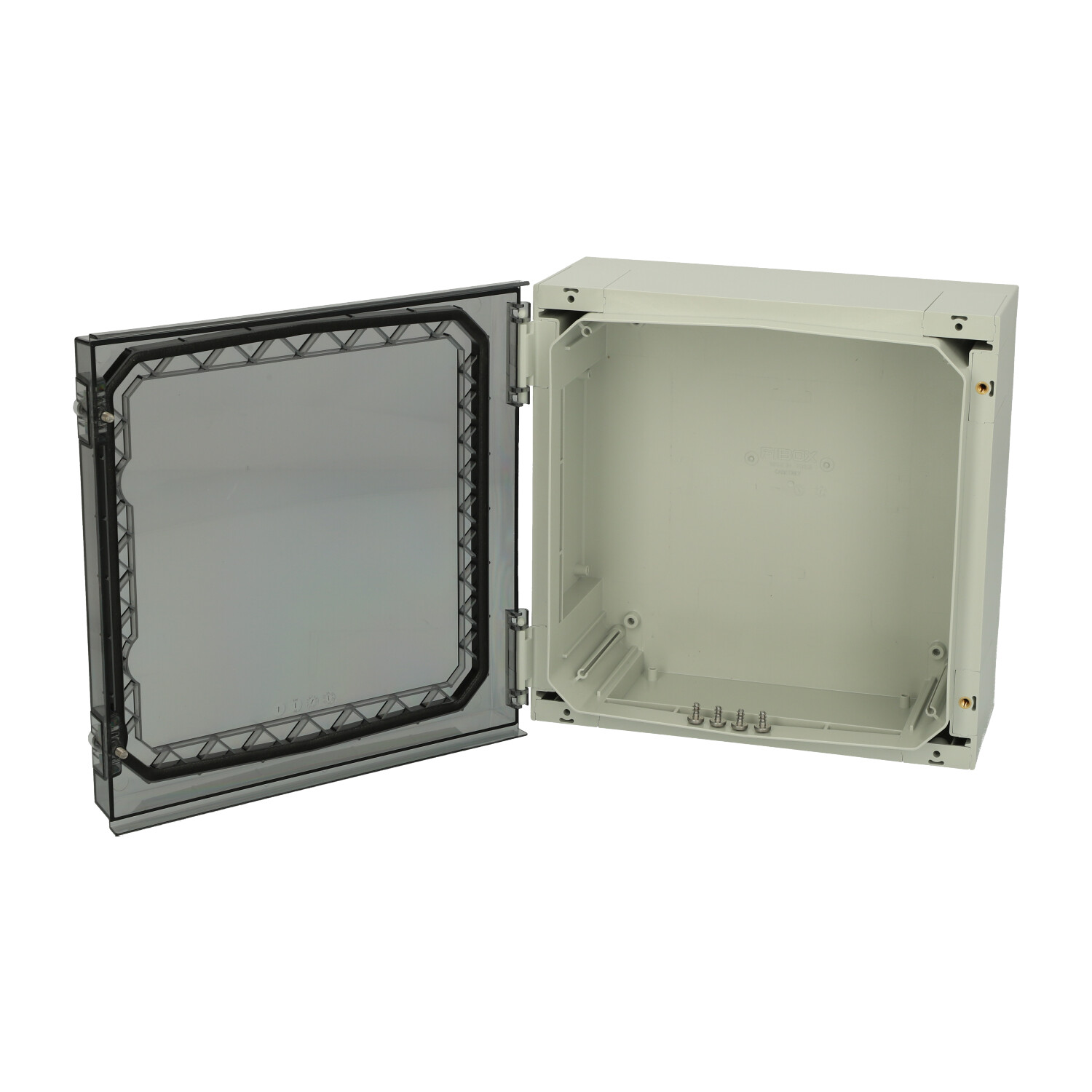

Description : Hinged polycarbonate enclosure with transparent cover
Remarks : -
Package : 1
Unit : Piece
EAN : 6418074311399
SSTL number : 3424413
Electric No. Denmark : 8212098064
Electric No. Sweden : 2506219
ETIM : EC000261
Height (mm) : 320
Width (mm) : 320
Depth (mm) : 150
Height (inch) : 12.6
Width (inch) : 12.6
Depth (inch) : 5.91
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C : -40 … 80
Temperature °F : -40 … 175
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011, EN_61439-4:2013__IEC_61439-4:2012
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK09
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 5VA
Glow Wire Test (IEC 60695): 960C
/ /
Dimensional Drawings
CAD Files
Please note, that we need your permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
NEO PC 323215 T

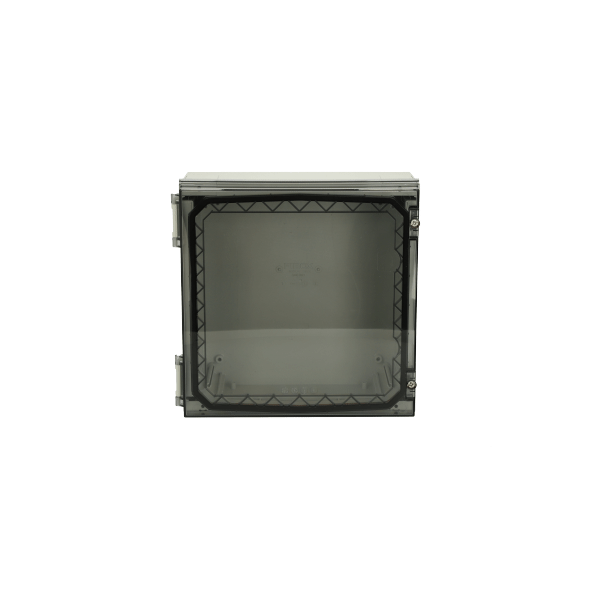

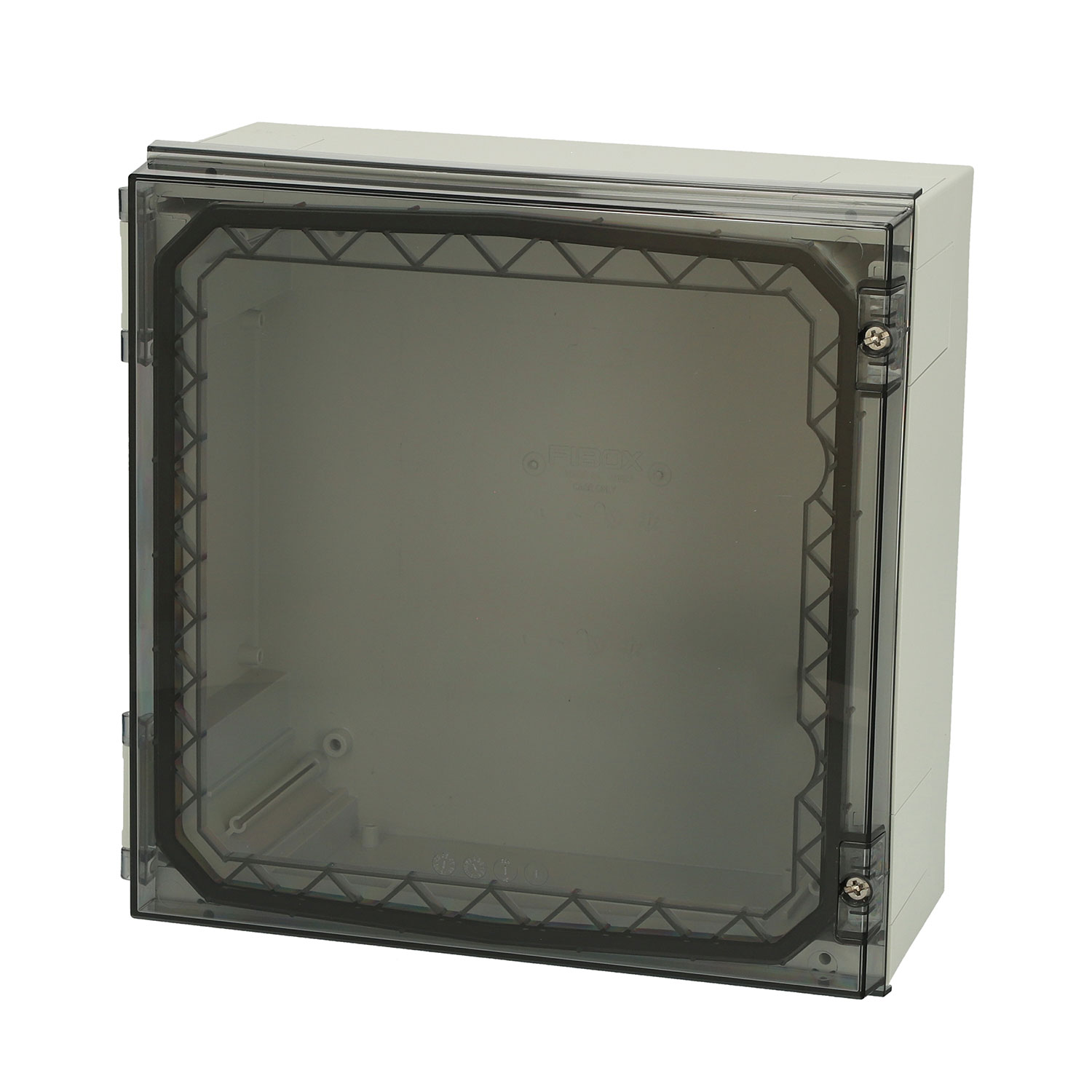

Sample image
Order symbol : NEO PC 323215 T
Product nr : 4811001
UL Code : -
Description : Hinged polycarbonate enclosure with transparent cover
Remarks : -
EAN : 6418074311399
El. number :
- Finland : 3424413
- Denmark : 8212098064
- Sweden : 2506219
Including : Polycarbonate base and cover, mounting screws for mountingplate/DIN rail.
| Dimensions : | Height | Width | Depth |
|---|---|---|---|
| mm : | 320 | 320 | 150 |
| inch : | 12.6 | 12.6 | 5.91 |
| Materials : | |
|---|---|
| Material : | Polycarbonate |
| Base colour : | RAL_7035 |
| Cover colour : | Clear transparent |
| Gasket material : | Polyurethane |
| Temperatures : | |
|---|---|
| Temperature °C (continuous) : | -40 … 80 |
| Temperature °F (continuous) : | -40 … 175 |
| Accessories : | |
|---|---|
| NEO MPI 3232 |
Multiperforated plastic mounting plate
(275 x 265 x 3) |
| NEO MPS 3232 |
Metal mounting plate
(275 x 265 x 1) |
| PMK NEO 30 |
Polemounting kit
(400 x 300 x 30) |
| WMK NEO plastic |
Wall mounting kit plastic
(80 x 70 x 40) |
| DRS NEO 323215 | DIN rail frame set |
| Ratings : | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK09; |
| electrical_insulation : | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815) : | Yes |
| UV resistance : | UL 746C |
| Flammability Rating : | UL 94 5VA |
| Glow Wire Test (IEC 695-2-1) °C : | 960C |
| Certificates : | |
|---|---|
| Certificate FI 40693 A1.pdf | |
| NEO_TAE00004K7.pdf | |
