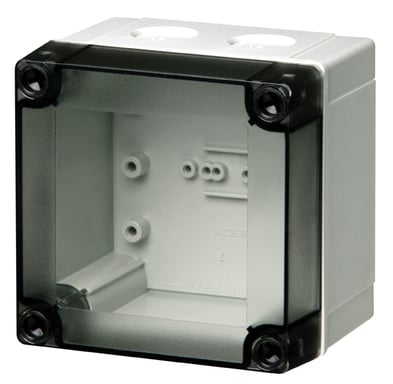

PCM 95/75 T product image 1
Next slide
PCM 95/75 T thumbnail image 1

MNX / PCM 95 / PCM 95/75 T

PCM 95/75 T 6016932

Dimensions 100 x 100 x 75

Including : Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • IP66; IP67; IK08
Technical data
Product:

Product nr : 6016932

Description : Enclosure, PC, metric knock-outs

Remarks : Smoked transparent cover

Package : 8

Unit : Piece

EAN : 6418074054807

SSTL number : 3421398

Electric No. Denmark : 8212027598

Electric No. Sweden : 2535401

ETIM : EC000261

Dimensions :

Height (mm) : 100

Width (mm) : 100

Depth (mm) : 75

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

MNX / PCM 95 / PCM 95/75 T

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

PCM 95/75 T

Fibox

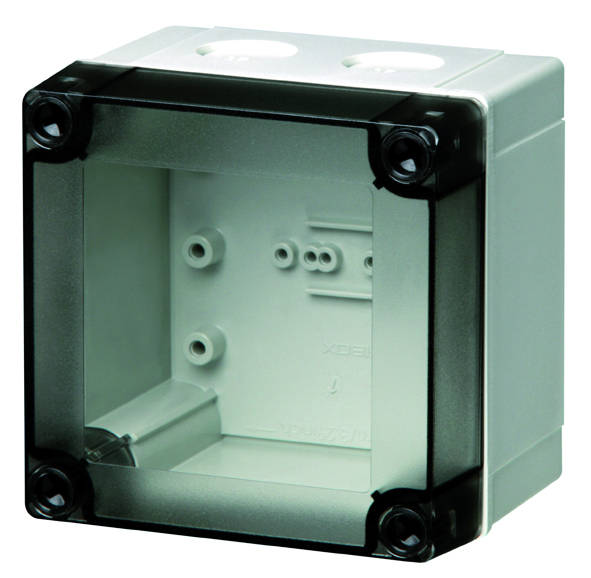

PCM95_75T_U

Sample image

Order symbol : PCM 95/75 T

Product nr : 6016932

Description : Enclosure, PC, metric knock-outs

Remarks : Smoked transparent cover

EAN : 6418074054807

El. number :

  • Finland : 3421398
  • Denmark : 8212027598
  • Sweden : 2535401

Including : Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

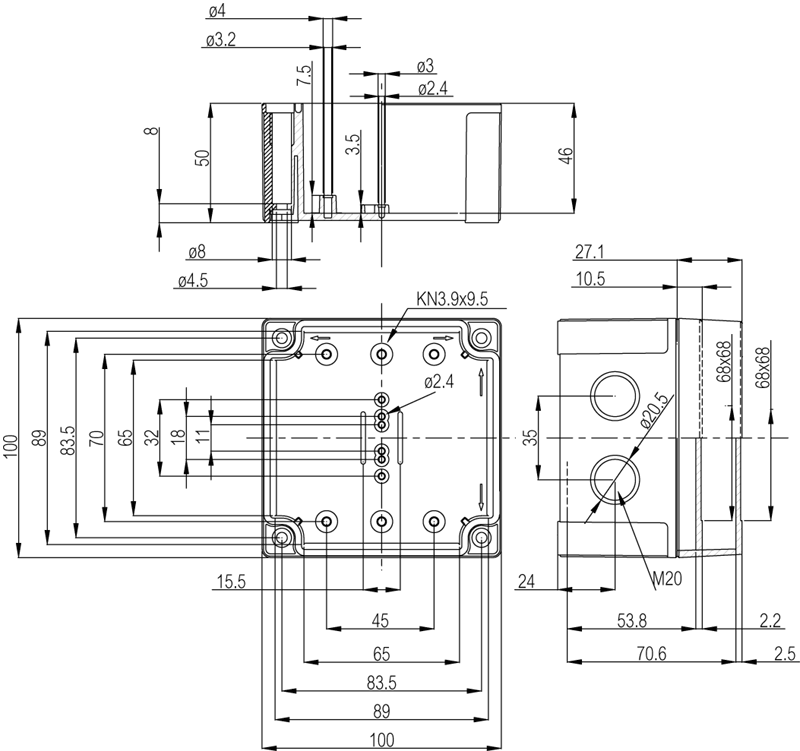

15597
Dimensions : Height Width Depth
mm : 100 100 75
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
MIN 8 DIN-15 Mounting rail, for enclosures:
B-3 DIN-35 Mounting rail, for enclosures:
(80 x 35 x 7.5)
FP 22046 Wall fastening lug (4 pcs)
(35 x 16 x 10)
MIV 95 Mounting plate (Galvanized steel), for enclosures:
(66 x 80 x 1.5)
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
Certificate FI 40847
