MNX / PCM 175 / PCM 175/100 T

PCM 175/100 T 6016921

Dimensions 180 x 180 x 100

Dimensions 7.09 x 7.09 x 3.94

Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC : IP66; IP67; IK08
Technical data
Product:

Product nr : 6016921

Description : Enclosure, PC, metric knock-outs

Remarks : Smoked transparent cover

Package : 4

Unit : Piece

EAN : 6418074038296

SSTL number : 3421671

Electric No. Denmark : 8212027255

Electric No. Sweden : 2535439

ETIM : EC000261

Dimensions :

Height (mm) : 180

Width (mm) : 180

Depth (mm) : 100

Height (inch) : 7.09

Width (inch) : 7.09

Depth (inch) : 3.94

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Smoked grey

Gasket material : TPE

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN 62208:2011, IEC 62208:2011

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

MNX / PCM 175 / PCM 175/100 T

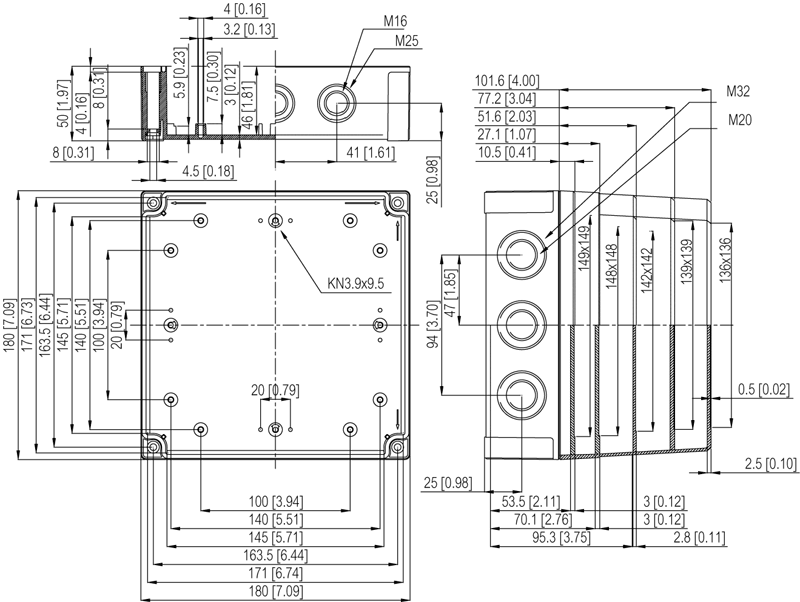

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

PCM 175/100 T

Fibox
6016921_PCM_175_100_T 360_ANIMA_SMALL

Sample image

Order symbol : PCM 175/100 T

Product nr : 6016921

Description : Enclosure, PC, metric knock-outs

Remarks : Smoked transparent cover

EAN : 6418074038296

El. number :

  • Finland : 3421671
  • Denmark : 8212027255
  • Sweden : 2535439

Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

MNXPCM175
Dimensions : Height Width Depth
mm : 180 180 100
inch : 7.09 7.09 3.94
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Smoked grey
Gasket material : TPE
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
MIV 175 Mounting plate (Galvanized steel), for enclosures:
(148 x 148 x 1.5)
FP A 175/180 Front plate (Aluminium), for enclosures:
(170 x 162 x 1)
HFP 180 Front plate hinge series
MIN 15 DIN-15 Mounting rail, for enclosures:
(150 x 15 x 1)
MIV 15 DIN-35 Mounting rail, for enclosures:
(150 x 35 x 7.5)
FP 22046 Wall fastening lug (4 pcs)
(35 x 16 x 10)
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
Certificate FI 40847
