MNX / PCM 150 / PCM 150/125 G

PCM 150/125 G 6016316

UL Code: 6416316

UL Name: UL PCM 150/125G

Dimensions 180 x 130 x 125.

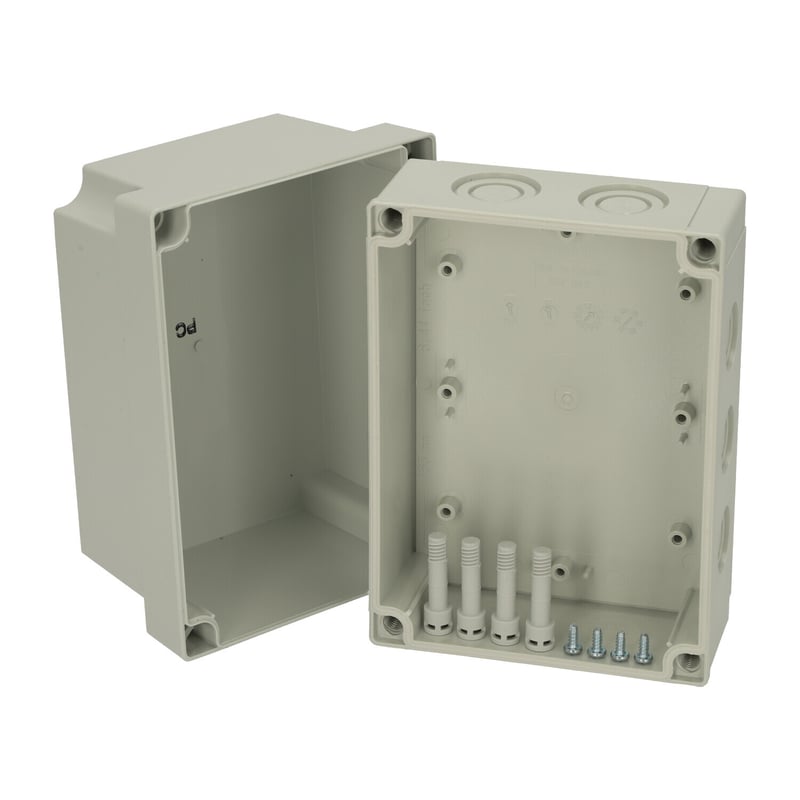

Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC: IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011
Technical data
Product:

Product nr: 6016316

Description: Enclosure. PC

Remarks: Opaque cover

Package: 4

Unit: Piece

EAN: 6418074038104

SSTL number: 3421643

Electric No. Denmark: 8212027200

Electric No. Sweden: 2535333

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 180

Width (mm): 130

Depth (mm): 125

Height (inch): 7.09

Width (inch): 5.12

Depth (inch): 4.92

Materials:

Material: Polycarbonate

Base colour: RAL 7035 -light grey

Cover colour: RAL 7035 -light grey

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 120

Temperature °C (continuous): -40 … 80

Temperature °F (short term): -40 … 250

Temperature °F (continuous): -40 … 175

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: UL 508

Flammability Rating: UL 746C 5"

Glow Wire Test (IEC 695-2-1): 960 °C

NEMA Class:

Product is connected to following catalogs:

MNX / PCM 150 / PCM 150/125 G

PCM 150/125 G

Fibox
PCM_150_75_G

Sample image

Order symbol: PCM 150/125 G

Product nbr: 6016316

UL Code: 6416316

UL Name: UL PCM 150/125G

Description: Enclosure. PC

Remarks: Opaque cover

EAN: 6418074038104

El. number:

  • Finland: 3421643
  • Denmark: 8212027200
  • Sweden: 2535333

Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

MNXPCM150
Dimensions: Height Width Depth
mm: 180 130 125
inch: 7.09 5.12 4.92
Materials:
Material: Polycarbonate
Base colour: RAL 7035 -light grey
Cover colour: RAL 7035 -light grey
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 120
Temperature °C (continuous): -40 … 80
Temperature °F (short term): -40 … 250
Temperature °F (continuous): -40 … 175
Accessories:
MIV 10 DIN-35 Mounting rail. for enclosures:
(100 x 35 x 1)
FP A 150/180 Front panel (Aluminum). for enclosures:
(170 x 112 x 1)
HFP 180 Front panel hinge series
MIV 150 Back Panel (Galvanized steel). for enclosures:
(148 x 98 x 1)
MIN 15 DIN-15 Mounting rail. for enclosures:
(150 x 15 x 1)
MIN 10 DIN-15 Mounting rail. for enclosures:
(100 x 15 x 1)
MIV 15 DIN-35 Mounting rail. for enclosures:
(150 x 35 x 1)
FP 22046 Mounting foot kit (4 pcs)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: UL 508
Flammability Rating: UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C: 960 °C
NEMA Class
Certificates:
Certificate FI 40847
