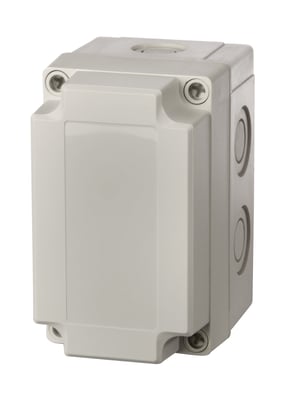

PCM_100_100_G
Next slide
PCM_100_100_G

MNX / PCM 100 / PCM 100/100 G

PCM 100/100 G 6016303

UL Code : 6416303

UL Name : UL PCM 100/100 G

Dimensions 130 x 80 x 100.

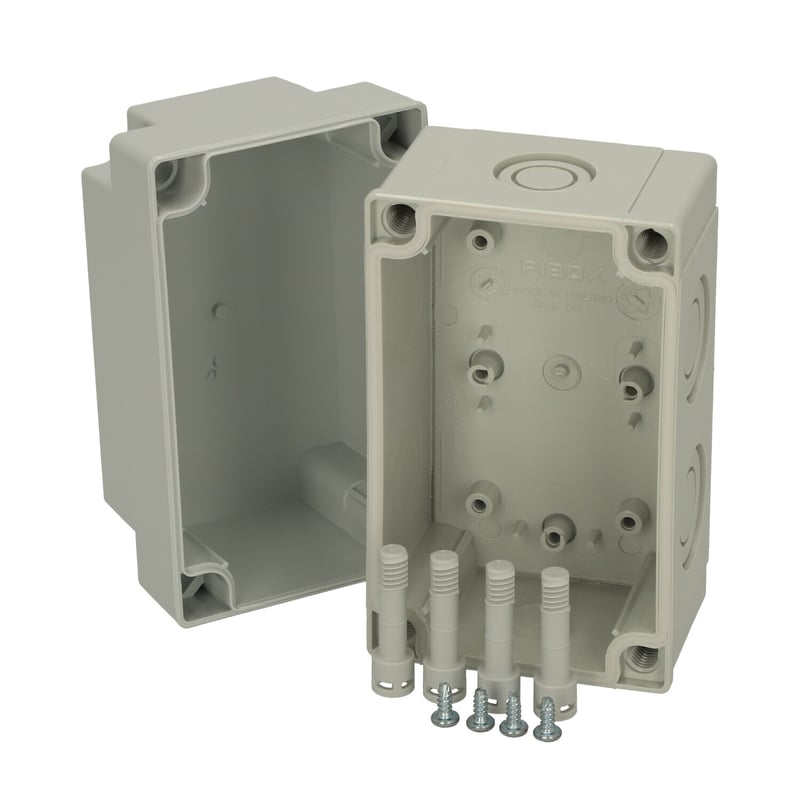

Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011
Technical data
Product:

Product nr : 6016303

Description : Enclosure, PC, metric knock-outs

Remarks : Grey cover

Package : 8

Unit : Piece

EAN : 6418074038012

SSTL number : 3421632

Electric No. Denmark : 8212027022

Electric No. Sweden : 2535306

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 130

Width (mm) : 80

Depth (mm) : 100

Height (inch) :

Width (inch) :

Depth (inch) :

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

MNX / PCM 100 / PCM 100/100 G

PCM 100/100 G

Fibox
PCM_100_100_G

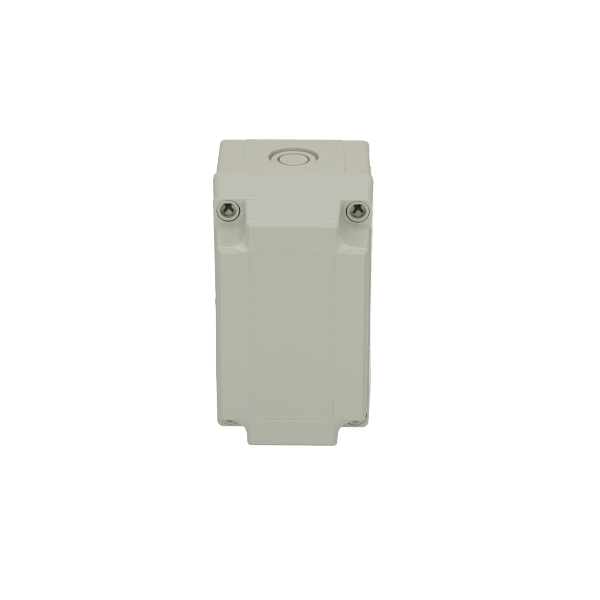

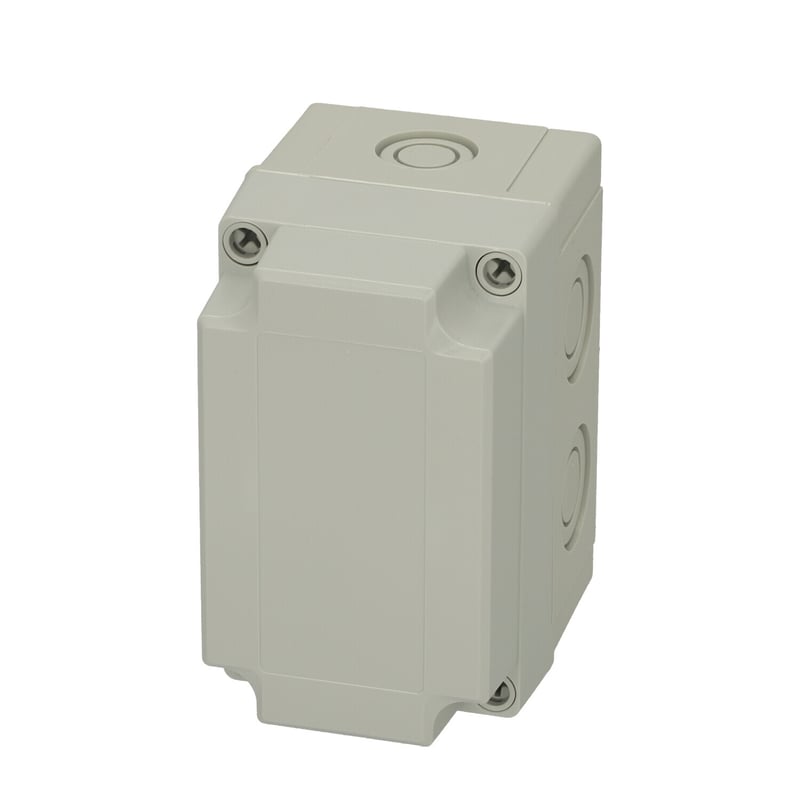

Sample image

Order symbol : PCM 100/100 G

Product nr : 6016303

UL Code : 6416303

UL Name : UL PCM 100/100 G

Description : Enclosure, PC, metric knock-outs

Remarks : Grey cover

EAN : 6418074038012

El. number :

  • Finland : 3421632
  • Denmark : 8212027022
  • Sweden : 2535306

Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

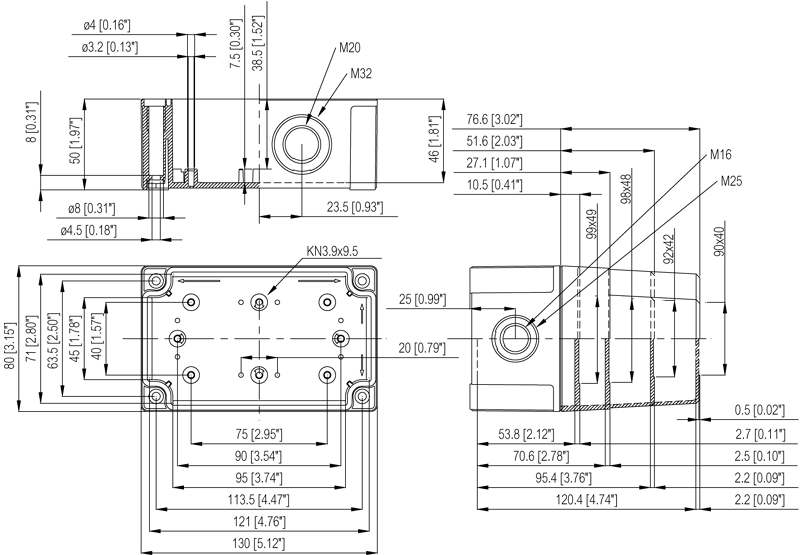

MNXPCM100
Dimensions : Height Width Depth
mm : 130 80 100
inch :
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
MIV 10 DIN-35 Mounting rail, for enclosures:
(100 x 35 x 1)
MIV 5 DIN-35 Mounting rail, for enclosures:
(50 x 35 x 1)
HFP 130 Front plate hinge series
MIN 5 DIN-15 Mounting rail, for enclosures:
(50 x 15 x 1)
MIV 100 Mounting plate (Galvanized steel), for enclosures:
(98 x 48 x 1)
MIN 10 DIN-15 Mounting rail, for enclosures:
(100 x 15 x 1)
FP 22046 Wall fastening lug (4 pcs)
FP A 100/130 Front plate (Aluminium), for enclosures:
(120 x 62 x 1)
Rating :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
Certificate FI 40847
