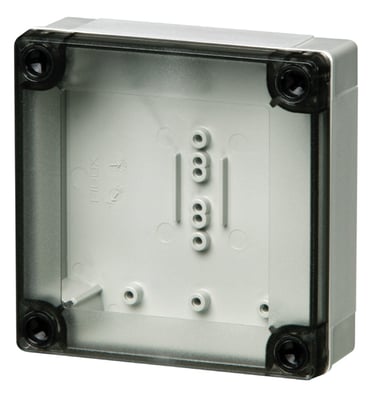

PC95_35LT
Next slide
PC95_35LT

MNX / MNX 95L / ABS 95/35 LT

ABS 95/35 LT 6082931

Dimensions 100 x 100 x 35.

Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC: IP66; IP67; IK07; EN 62208:2011. IEC 62208:2011
Technical data
Product:

Product nr: 6082931

Description: Enclosure. ABS

Remarks: Smoked transparent cover

Package: 8

Unit: Piece

EAN: 6418074054739

SSTL number: 3421384

Electric No. Denmark: 8212023961

Electric No. Sweden: 6082931

ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions:

Height (mm): 100

Width (mm): 100

Depth (mm): 35

Height (inch):

Width (inch):

Depth (inch):

Materials:

Material: ABS

Base colour: RAL 7035 -light grey

Cover colour: Clear transparent

Gasket material: Polyurethane

Temperatures:

Temperature °C (short term): -40 … 80

Temperature °C (continuous): -40 … 60

Temperature °F (short term): -40 … 175

Temperature °F (continuous): -40 … 140

Ratings:

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK07;

Electrical insulation: Totally insulated

Halogen free (DIN/VDE 0472, Part 815): 1

UV resistance: -

Flammability Rating: UL 94 HB

Glow Wire Test (IEC 695-2-1): 650 °C

NEMA Class:

Product is connected to following catalogs:

MNX / MNX 95L / ABS 95/35 LT

ABS 95/35 LT

Fibox

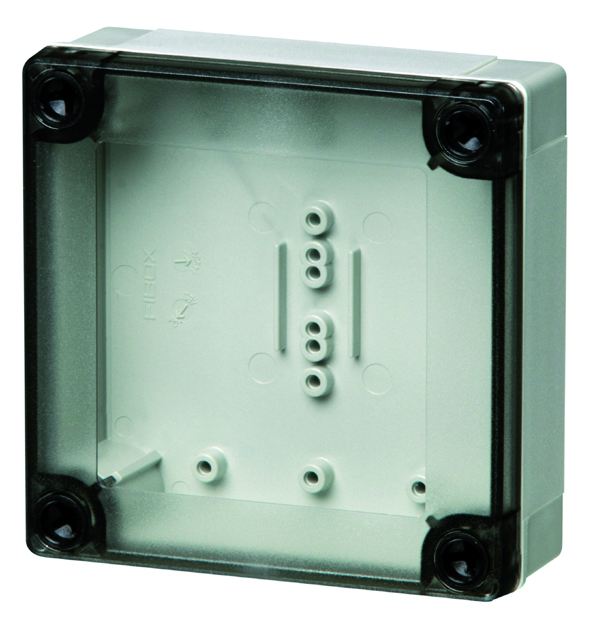

PC95_35LT

Sample image

Order symbol: ABS 95/35 LT

Product nbr: 6082931

Description: Enclosure. ABS

Remarks: Smoked transparent cover

EAN: 6418074054739

El. number:

  • Finland: 3421384
  • Denmark: 8212023961
  • Sweden: 6082931

Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

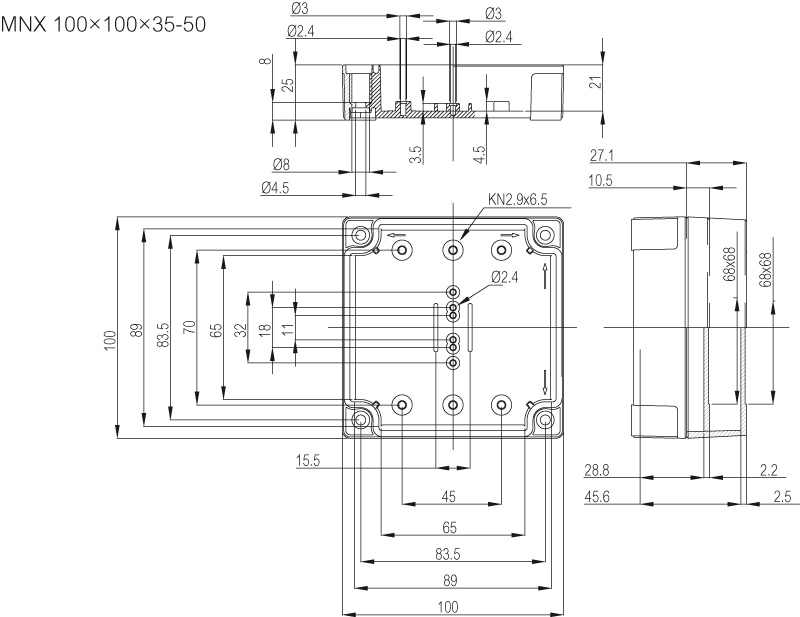

15589
Dimensions: Height Width Depth
mm: 100 100 35
inch:
Materials:
Material: ABS
Base colour: RAL 7035 -light grey
Cover colour: Clear transparent
Gasket material: Polyurethane
Temperatures:
Temperature °C (short term):: -40 … 80
Temperature °C (continuous): -40 … 60
Temperature °F (short term): -40 … 175
Temperature °F (continuous): -40 … 140
Accessories:
MIN 8 DIN-15 Mounting rail. for enclosures:
(80 x 15 x 1)
B-3 DIN-35 Mounting rail. for enclosures:
(80 x 35 x 1)
FP 22046 Mounting foot kit (4 pcs)
MIV 95 Back Panel (Galvanized steel). for enclosures:
(66 x 80 x 1)
Rating:
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK07;
Electrical insulation: Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance: -
Flammability Rating: UL 94 HB
Glow Wire Test (IEC 695-2-1) °C: 650 °C
NEMA Class
Certificates:
Certificate FI 40847
