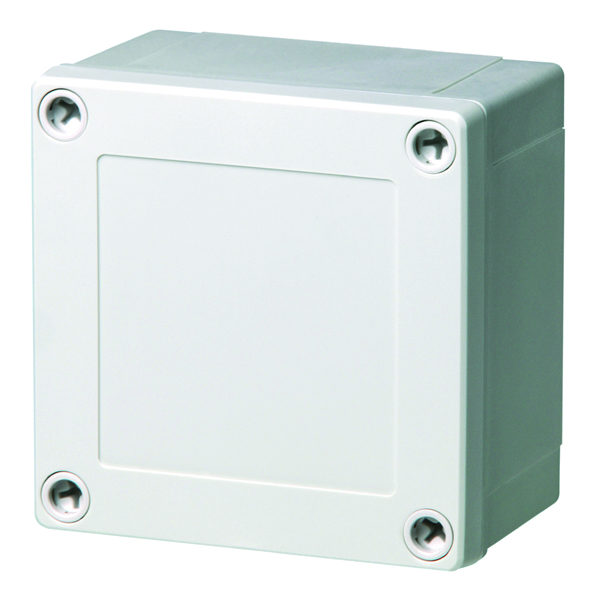

PC95_60HG
Next slide
PC95_60HG

MNX / MNX 95H / PC 95/60 HG

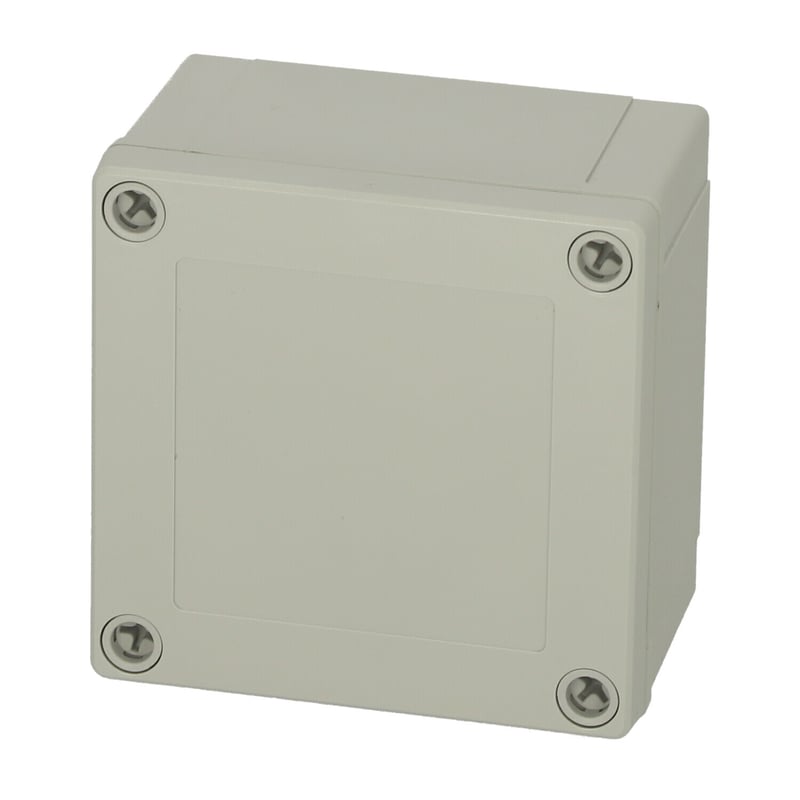

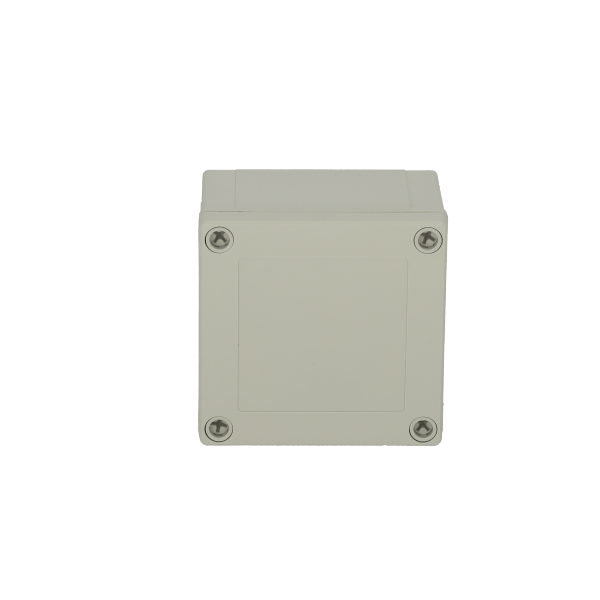

PC 95/60 HG 6011331

UL Code : 6411331

UL Name : UL PC 95/60 HG

Dimensions 100 x 100 x 60.

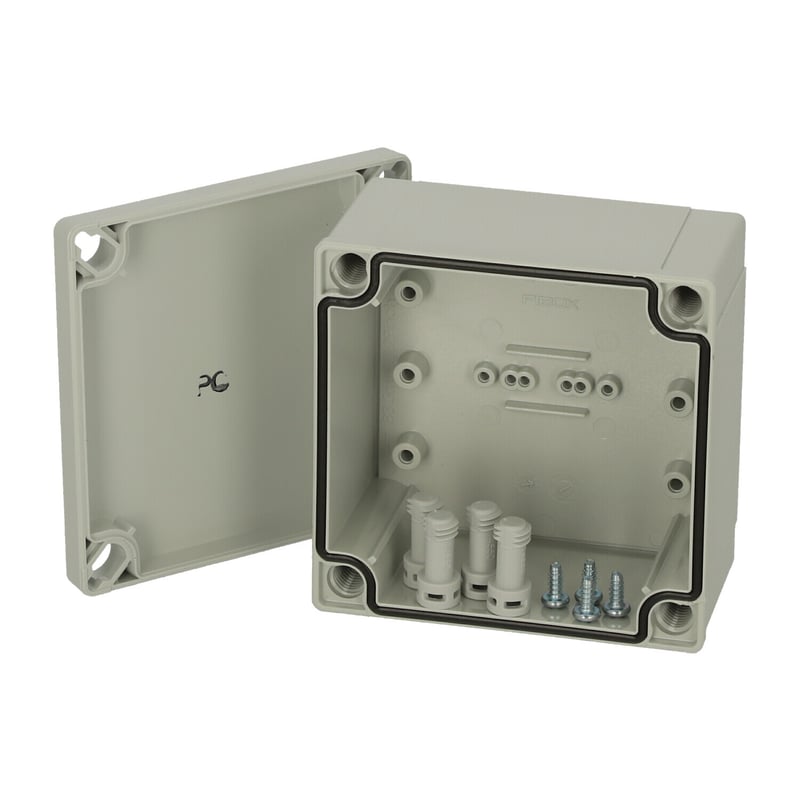

Including : Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

  • PC : IP66; IP67; IK08; EN 62208:2011. IEC 62208:2011
Technical data
Product:

Product nr : 6011331

Description : Enclosure, PC

Remarks : High base, grey cover

Package : 8

Unit : Piece

EAN : 6418074054630

SSTL number : 3421364

Electric No. Denmark : 8212027721

Electric No. Sweden : 6011331

ETIM : EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions :

Height (mm) : 100

Width (mm) : 100

Depth (mm) : 60

Height (inch) : 3.94

Width (inch) : 3.94

Depth (inch) : 2.36

Materials :

Material : Polycarbonate

Base colour : RAL 7035 -light grey

Cover colour : RAL 7035 -light grey

Gasket material : Polyurethane

Temperatures :

Temperature °C (short term) : -40 … 120

Temperature °C (continuous) : -40 … 80

Temperature °F (short term) : -40 … 250

Temperature °F (continuous) : -40 … 175

Ratings :

Ingress Protection (EN 60529): IP66; IP67;

Impact Resistance (EN 62262): IK08;

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : 1

UV resistance : UL 508

Flammability Rating : UL 746C 5"

Glow Wire Test (IEC 60695): 960 °C

NEMA Class :

Product is connected to following catalogues :

MNX / MNX 95H / PC 95/60 HG

PC 95/60 HG

Fibox
PC95_60HG

Sample image

Order symbol : PC 95/60 HG

Product nr : 6011331

UL Code : 6411331

UL Name : UL PC 95/60 HG

Description : Enclosure, PC

Remarks : High base, grey cover

EAN : 6418074054630

El. number :

  • Finland : 3421364
  • Denmark : 8212027721
  • Sweden : 6011331

Including : Base with PUR gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.

15590
Dimensions : Height Width Depth
mm : 100 100 60
inch : 3.94 3.94 2.36
Materials :
Material : Polycarbonate
Base colour : RAL 7035 -light grey
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperatures :
Temperature °C (short term) : -40 … 120
Temperature °C (continuous) : -40 … 80
Temperature °F (short term) : -40 … 250
Temperature °F (continuous) : -40 … 175
Accessories :
MIN 8 DIN-15 Mounting rail, for enclosures:
(80 x 15 x 1)
B-3 DIN-35 Mounting rail, for enclosures:
(80 x 35 x 1)
FP 22046 Wall fastening lug (4 pcs)
MIV 95 Mounting plate (Galvanized steel), for enclosures:
(66 x 80 x 1)
Rating :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK08;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815): 1
UV resistance : UL 508
Flammability Rating : UL 746C 5"
Glow Wire Test (IEC 695-2-1) °C : 960 °C
NEMA Class
Certificates :
Certificate FI 40847
