ABS 200/125 XHT 6083927
Dimensions 255 x 180 x 125.
Including : Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
- PC : IP66; IP67; IK07; EN 62208:2011. IEC 62208:2011
Technical data
Product nr: 6083927
Description: Enclosure. ABS
Remarks: Smoked transparent cover
Package: 4
Unit: Piece
EAN: 6418074021748
SSTL number: 3421747
Electric No. Denmark: 8212023877
Electric No. Sweden: 6083927
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Height (mm): 255
Width (mm): 180
Depth (mm): 125
Height (inch) : 10.04
Width (inch) : 7.09
Depth (inch) : 4.92
Material: ABS
Base colour : RAL 7035 -light grey
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperature °C (short term) : -40 … 80
Temperature °C (continuous) : -40 … 60
Temperature °F (short term) : -40 … 175
Temperature °F (continuous) : -40 … 140
Ingress Protection (EN 60529) : IP66; IP67;
Impact Resistance (EN 62262) : IK07;
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : 1
UV resistance : -
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695) : 650 °C
NEMA Class :
/ /
Dimensional Drawings
CAD Files
Certificates and Declarations
Catalogues
Contact
Accessories
ABS 200/125 XHT

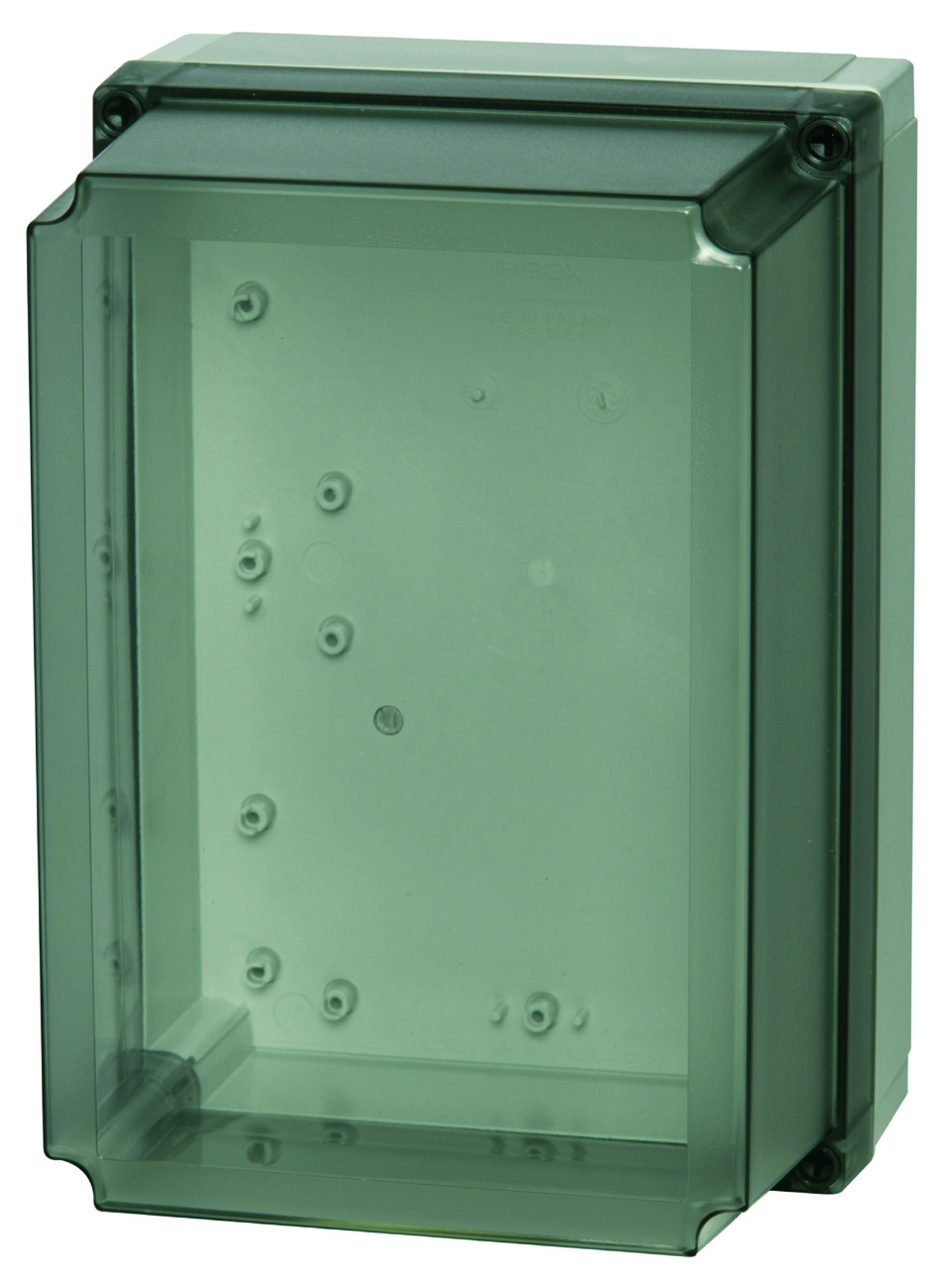

Sample image
Order symbol: ABS 200/125 XHT
Product nbr: 6083927
Description: Enclosure. ABS
Remarks: Smoked transparent cover
EAN: 6418074021748
El. number:
- Finland: 3421747
- Denmark: 8212023877
- Sweden: 6083927
Including: Base with TPE gasket. screws for mounting plate/DIN-rail and cover with polyamide cover screws.
| Dimensions: | Height | Width | Depth |
|---|---|---|---|
| mm: | 255 | 180 | 125 |
| inch: | 10.04 | 7.09 | 4.92 |
| Materials: | |
|---|---|
| Material: | ABS |
| Base colour: | RAL 7035 -light grey |
| Cover colour: | Clear transparent |
| Gasket material: | Polyurethane |
| Temperatures: | |
|---|---|
| Temperature °C (short term):: | -40 … 80 |
| Temperature °C (continuous): | -40 … 60 |
| Temperature °F (short term): | -40 … 175 |
| Temperature °F (continuous): | -40 … 140 |
| Accessories: | |
|---|---|
| MIN 20 | DIN-15 Mounting rail. for enclosures: (225 x 15 x 1) |
| HFP 180 | Front panel hinge series |
| MIN 15 | DIN-15 Mounting rail. for enclosures: (150 x 15 x 1) |
| MIV 200 | Back Panel (Galvanized steel). for enclosures: (223 x 148 x 1) |
| FP A 200/180 | Front panel (Aluminum). for enclosures: (237 x 170 x 1) |
| MIV 15 | DIN-35 Mounting rail. for enclosures: (150 x 35 x 1) |
| FP 22046 | Mounting foot kit (4 pcs) |
| MIV 20 | DIN-35 Mounting rail. for enclosures: (225 x 35 x 1) |
| Rating: | |
|---|---|
| Ingress protection (EN 60529): | IP66; IP67; |
| Impact Resistance (EN 62262): | IK07; |
| Electrical insulation: | Totally insulated |
| Halogen free (DIN/VDE 0472, Part 815): | 1 |
| UV resistance: | - |
| Flammability Rating: | UL 94 HB |
| Glow Wire Test (IEC 695-2-1) °C: | 650 °C |
| NEMA Class | |
| Certificates: | |
|---|---|
| Certificate FI 40847 | |
