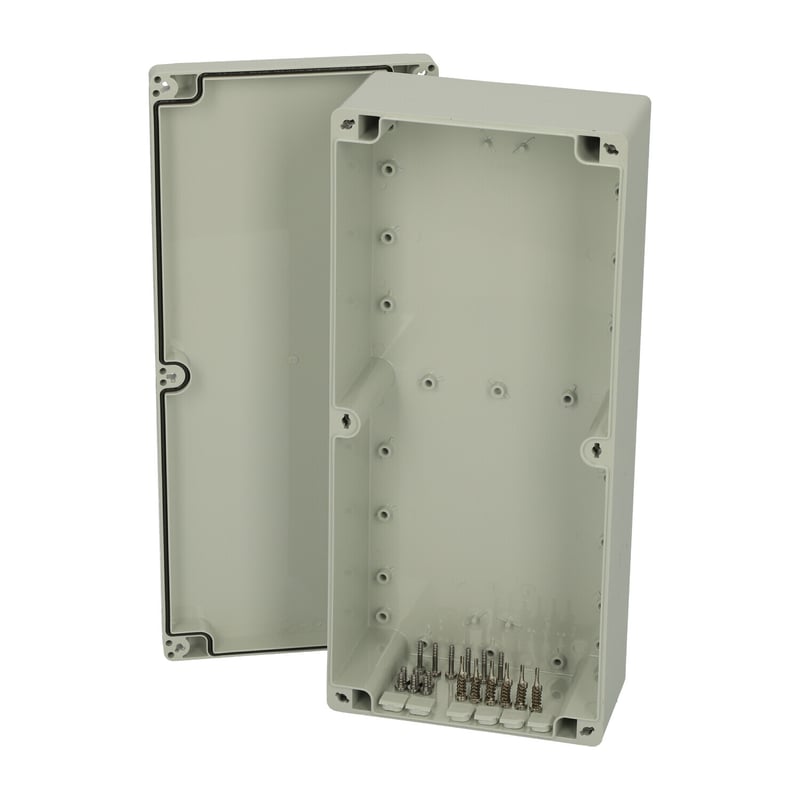

Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.

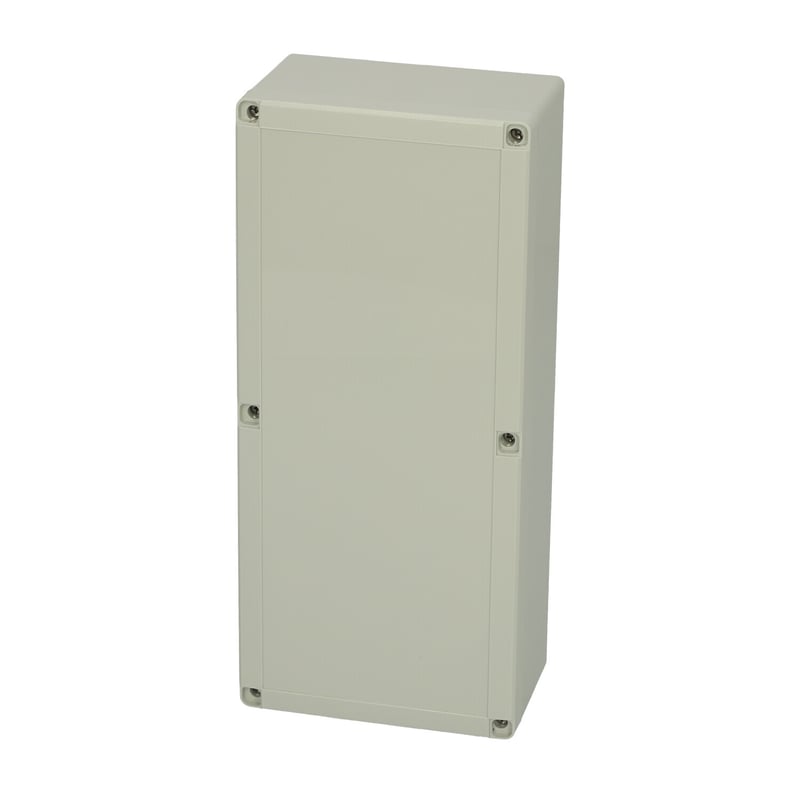

![ABQ3 163610 product image 1](https://www.fibox.com/hs-fs/hubfs/assets/7085751_ABQ3_163610_2_72dpi.jpg?length=393&name=7085751_ABQ3_163610_2_72dpi.jpg)
![ABQ3 163610 product image 2](https://www.fibox.com/hs-fs/hubfs/assets/7085751_ABQ3_163610_1_72dpi.jpg?length=393&name=7085751_ABQ3_163610_1_72dpi.jpg)

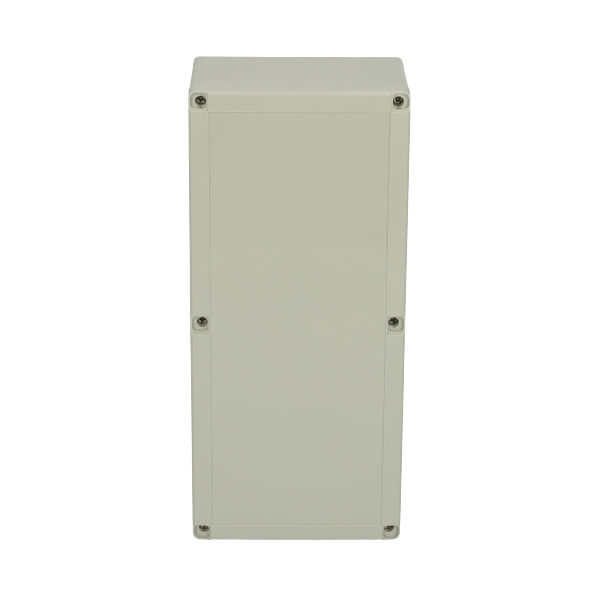

![ABQ3 163610 product image 1](https://www.fibox.com/hs-fs/hubfs/assets/7085751_ABQ3_163610%20360_ANIMA_SMALL.gif?length=393&name=7085751_ABQ3_163610%20360_ANIMA_SMALL.gif)
![ABQ3 163610 thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/7085751_ABQ3_163610_2_72dpi.jpg?length=52&name=7085751_ABQ3_163610_2_72dpi.jpg)
![ABQ3 163610 thumbnail image 2](https://www.fibox.com/hs-fs/hubfs/assets/7085751_ABQ3_163610_1_72dpi.jpg?length=52&name=7085751_ABQ3_163610_1_72dpi.jpg)
![ABQ3 163610 thumbnail image 1](https://www.fibox.com/hs-fs/hubfs/assets/7085751_ABQ3_163610%20360_ANIMA_SMALL.gif?length=52&name=7085751_ABQ3_163610%20360_ANIMA_SMALL.gif)
Euronord / EURONORD 3 1636 / ABQ3 163610
ABQ3 163610 7085751
Dimensions 160 x 360 x 100
Dimensions 6.3 x 14.17 x 3.94
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.
- PC : IP66; IP67; IK07
Technical data
Product nr : 7085751
Description : Enclosure, ABS
Remarks : Grey cover (quick-locking)
Package : 2
Unit : Piece
EAN : 6418074099303
SSTL number : 3424252
Electric No. Denmark : 8212050484
ETIM : EC000261
Height (mm) : 160
Width (mm) : 360
Depth (mm) : 100
Height (inch) : 6.3
Width (inch) : 14.17
Depth (inch) : 3.94
Material : ABS
Base colour : RAL_7035
Cover colour : RAL 7035 -light grey
Gasket material : Polyurethane
Temperature °C : -40 … 60
Temperature °F : -40 … 140
Standards EN_62208:2011__IEC_62208:2011, EN_61439-1:2011__IEC_61439-1:2011
Ingress Protection (EN 60529): IP66IP67
Impact Resistance (EN 62262): IK07
Electrical insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
Flammability Rating : UL 94 HB
Glow Wire Test (IEC 60695): 650C
Euronord / EURONORD 3 1636 / ABQ3 163610
Dimensional Drawings
CAD Files
Please note, that we need you permission in order for you to view the CAD files.
Certificates and Declarations
Catalogues
Contact
Accessories
ABQ3 163610
![Fibox Fibox](https://www.fibox.com/hs-fs/hubfs/fibox-2021/logo/eclosing/png/fibox_enclosing-logo-2021-rgb-07.png?width=250&name=fibox_enclosing-logo-2021-rgb-07.png)
![7085751_ABQ3_163610 360_ANIMA_SMALL](https://www.fibox.com/hs-fs/hubfs/assets/7085751_ABQ3_163610%20360_ANIMA_SMALL.gif?width=200&name=7085751_ABQ3_163610%20360_ANIMA_SMALL.gif)
Sample image
Order symbol : ABQ3 163610
Product nr : 7085751
Description : Enclosure, ABS
Remarks : Grey cover (quick-locking)
EAN : 6418074099303
El. number :
- Finland : 3424252
- Denmark : 8212050484
Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and quick-locking cover screws.
![EURO3_163610](https://www.fibox.com/hubfs/assets/EURO3_163610.gif)
Dimensions : | Height | Width | Depth |
---|---|---|---|
mm : | 160 | 360 | 100 |
inch : | 6.3 | 14.17 | 3.94 |
Materials : | |
---|---|
Material : | ABS |
Base colour : | RAL_7035 |
Cover colour : | RAL 7035 -light grey |
Gasket material : | Polyurethane |
Temperatures : | |
---|---|
Temperature °C (continuous) : | -40 … 60 |
Temperature °F (continuous) : | -40 … 140 |
Accessories : | |
---|---|
TF 28037 | Wall fastening lug (4 pcs), for enclosures: |
ARM 0615 |
DIN-15 Mounting rail, for enclosures:
(140 x 15 x 5) |
TM 1636 |
Mounting plate, for enclosures:
(318 x 146 x 1) |
DH-3 |
DIN-35 Mounting rail, for enclosures:
(140 x 35 x 7) |
TH A | Grey plastic hinges (2 pcs) |
TRH 2036 |
DIN-35 Mounting rail, for enclosures:
(35 x 340 x 1) |
Ratings : | |
---|---|
Ingress protection (EN 60529): | IP66; IP67; |
Impact Resistance (EN 62262): | IK07; |
electrical_insulation : | Totally insulated |
Halogen free (DIN/VDE 0472, Part 815) : | Yes |
UV resistance : | - |
Flammability Rating : | UL 94 HB |
Glow Wire Test (IEC 695-2-1) °C : | 650C |
Certificates : | |
---|---|
SGSFimko_EURONORD |
