    Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

Previous slide

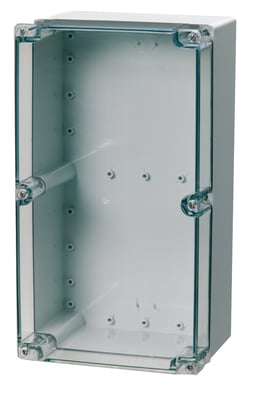

PCT 203615 product image 1

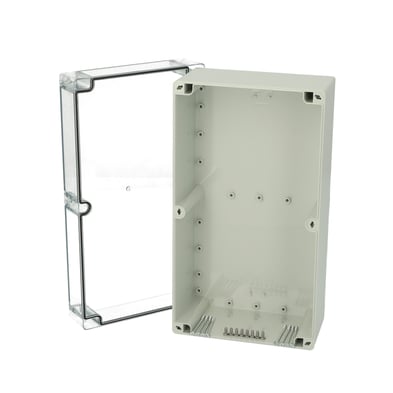

PCT 203615 product image 2

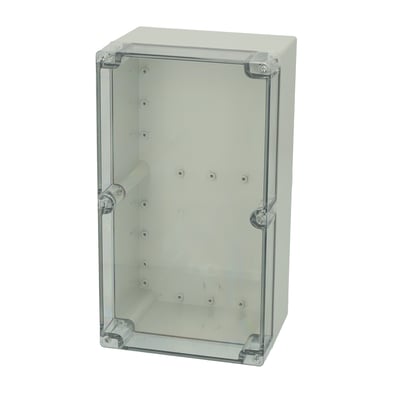

PCT 203615 product image 3
Next slide
PCT 203615 thumbnail image 1
PCT 203615 thumbnail image 2
PCT 203615 thumbnail image 3

Euronord / EURONORD 2036 / PCT 203615

PCT 203615 7022791

Dimensions 200 x 360 x 150

Dimensions 7.87 x 14.17 x 5.91

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

  • PC : IP66; IP67; IK07; IK08
Technical data
Product:

Product nr : 7022791

Description : Enclosure, PC

Remarks : Clear transparent cover

Package : 2

Unit : Piece

EAN : 6418074058713

SSTL number : 3435422

Electric No. Denmark : 8212003033

ETIM : EC000261

Dimensions :

Height (mm) : 200

Width (mm) : 360

Depth (mm) : 150

Height (inch) : 7.87

Width (inch) : 14.17

Depth (inch) : 5.91

Materials :

Material : Polycarbonate

Base colour : RAL_7035

Cover colour : Clear transparent

Gasket material : Polyurethane

Temperatures :

Temperature °C : -40 … 80

Temperature °F : -40 … 175

Ratings :

Standards EN/IEC 61439-1:2015

Ingress Protection (EN 60529): IP66IP67

Impact Resistance (EN 62262): IK07IK08

Electrical insulation : Totally insulated

Halogen free (DIN/VDE 0472, Part 815) : Yes

UV resistance : UL 746C

Flammability Rating : UL 94 V0

Glow Wire Test (IEC 60695): 960C

Product is connected to following catalogues :

Euronord / EURONORD 2036 / PCT 203615

Dimensional Drawings
CAD Files
Certificates and Declarations
Contact

PCT 203615

Fibox
7022791_PCT_203615_enclosure_3_72dpi

Sample image

Order symbol : PCT 203615

Product nr : 7022791

Description : Enclosure, PC

Remarks : Clear transparent cover

EAN : 6418074058713

El. number :

  • Finland : 3435422
  • Denmark : 8212003033

Including : Base with screws for mounting plate/DIN-rail. cover with PUR gasket and stainless steel cover screws.

EURO203615
Dimensions : Height Width Depth
mm : 200 360 150
inch : 7.87 14.17 5.91
Materials :
Material : Polycarbonate
Base colour : RAL_7035
Cover colour : Clear transparent
Gasket material : Polyurethane
Temperatures :
Temperature °C (continuous) : -40 … 80
Temperature °F (continuous) : -40 … 175
Accessories :
TF 28037 Wall fastening lug (4 pcs), for enclosures:
TM 2036 Mounting plate, for enclosures:
(318 x 186 x 1.5)
TH A Grey plastic hinges (2 pcs)
(30 x 20 x 12)
TRH 2036 DIN-35 Mounting rail, for enclosures:
(35 x 340 x 1.5)
Ratings :
Ingress protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK07; IK08;
electrical_insulation : Totally insulated
Halogen free (DIN/VDE 0472, Part 815) : Yes
UV resistance : UL 746C
Flammability Rating : UL 94 V0
Glow Wire Test (IEC 695-2-1) °C : 960C
Certificates :
SGSFimko_EURONORD
